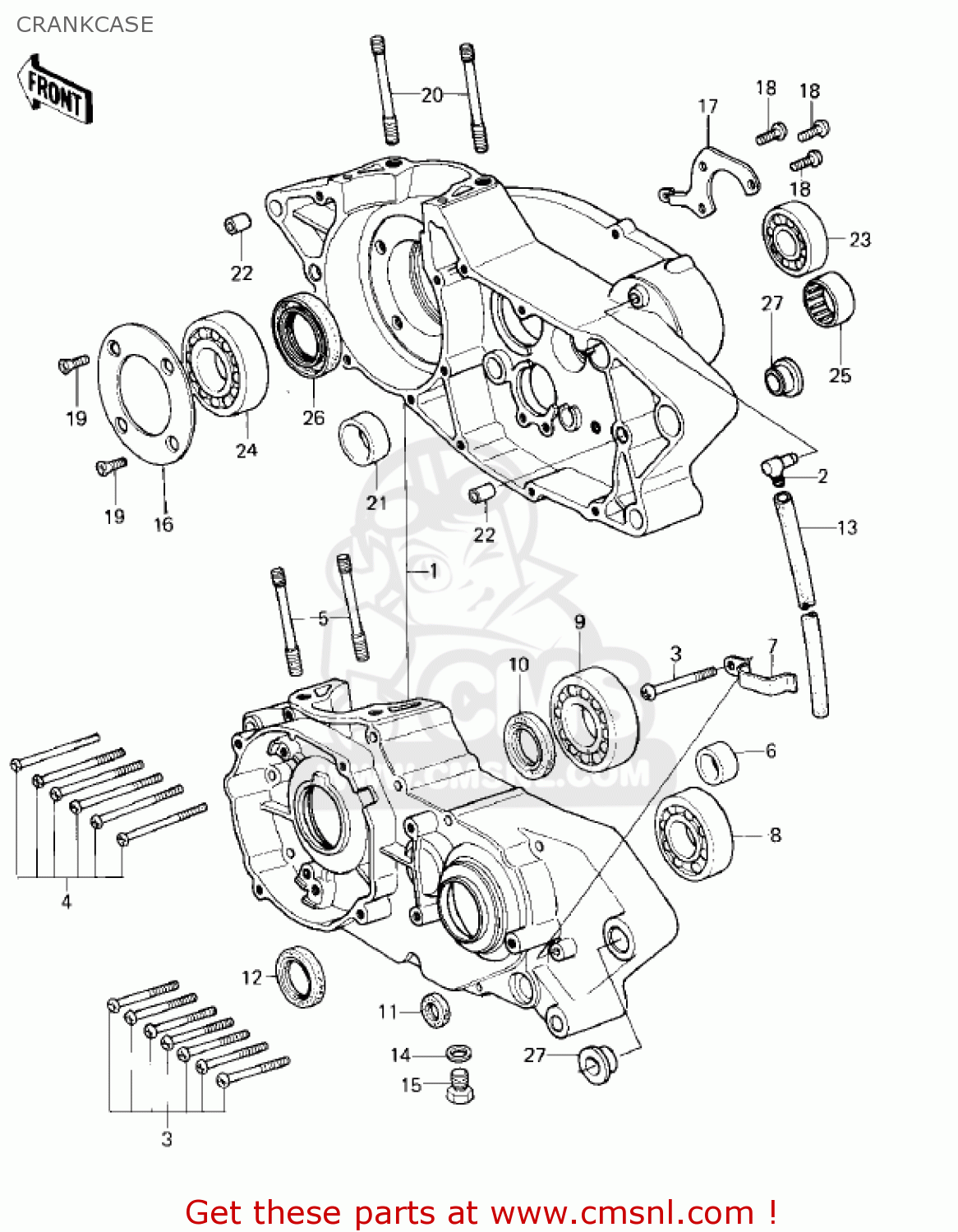

CRANKCASE

ref

part #

description

quantity

1

140015044
ref: 1
KX420-A1

CRANKCASE SET,F.BLACK

€ 540.00

1

140015070
ref: 1
KX420-A2

CRANKCASE SET

€ 524.00

2

14069003
ref: 2

BREATHER

€ 7.00

3

220B0650
ref: 3

SCREW-PAN HEAD,6X50

€ 2.00

4

220B0670
ref: 4

SCREW-PAN HEAD,6X70

€ 2.50

5

920041023
ref: 5

STUD,10X72

€ 5.50

6

92028132
ref: 6

BUSHING

€ 28.00

7

920371073
ref: 7

CLAMP

€ 2.50

8

920451011
ref: 8

BEARING-BALL,#6305

€ 33.50

9

920451027
ref: 9

BEARING-BALL,6306SH2,

€ 60.50

10

92050057
ref: 10

OIL SEAL,L.H CRNKCASE

€ 14.50

11

92050082
ref: 11

OIL SEAL,CHANGE SHAFT

€ 5.50

12

920491159
ref: 12

SEAL-OIL,TC32457

€ 8.00

13

92059061
ref: 13

PIPE-BREATHER

€ 3.00

14

92065058
ref: 14

GASKET, 10,5X16X1 (NAS)

€ 2.50

15

92067001
ref: 15

PLUG-OIL DRAIN

€ 3.00

16

140141011
ref: 16

PLATE,POSITION,CRANK

€ 3.50

17

140141012
ref: 17

PLATE,POSITION,DRIVE

€ 1.50

18

220B0616
ref: 18
KX420-A1

SCREW-PAN HEAD,6X16

€ 2.50

18

220B0614
ref: 18
KX420-A2

SCREW-PAN HEAD,6X14

€ 2.00

19

221B0616
ref: 19

SCREW-CNTSNK HD,6X16

€ 0.50

20

920041023
ref: 20

STUD,10X72

€ 5.50

21

92028131
ref: 21

BUSHING

€ 28.00

22

920431037
ref: 22

PIN,DOWEL,10X8.2X14

€ 0.50

23

920451006
ref: 23

BEARING-BALL,6304SH2,

€ 27.50

24

920451027
ref: 24

BEARING-BALL,6306SH2,

€ 60.50

25

92046040
ref: 25

BEARING-NEEDLE,#34401

€ 22.00

26

920491046
ref: 26

OIL SEAL,DCJ386210

€ 19.50

27

920281074
ref: 27
KX420-A1

BUSHING

€ 11.50

27

920281123
ref: 27
KX420-A2

BUSHING,CASE PIVOT

€ 19.50
