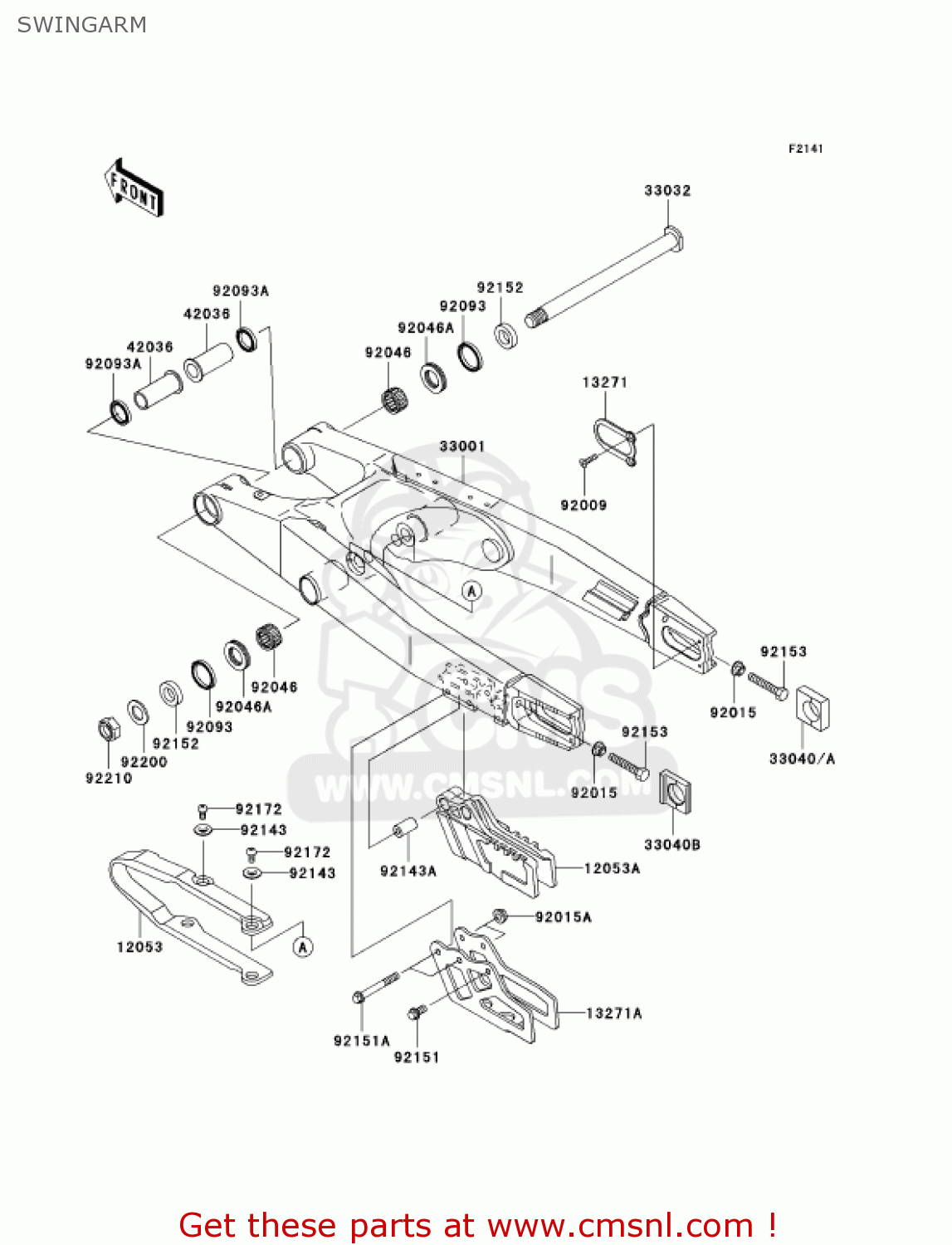

SWINGARM

ref

part #

description

quantity

12053

120530020
ref: 12053

GUIDE-CHAIN,DRIVE,FR

€ 51.00

12053A

120531468
ref: 12053A

GUIDE-CHAIN

€ 52.00

13271

132711833
ref: 13271

PLATE,AXLE

€ 12.00

13271A

132711834
ref: 13271A

PLATE,CHAIN GUIDE

€ 35.00

33001

330010065458A
ref: 33001

ARM-COMP-SWING,P.SILV

€ 489.00

33032

330321189
ref: 33032

SHAFT-SWING ARM

€ 34.00

33040A

330400020
ref: 33040A

ADJUSTER-CHAIN,RH

€ 10.50

33040B

330401189
ref: 33040B

ADJUSTER-CHAIN,LH

€ 11.00

42036

420361326
ref: 42036

SLEEVE,SWING ARM,L=54

€ 15.50

92009

920091828
ref: 92009

SCREW

€ 1.50

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92046

920461174
ref: 92046

BEARING-NEEDLE,TA2230

€ 37.50

92046A

920461240
ref: 92046A

BEARING-NEEDLE,NTBR22

€ 18.00

92093

920931434
ref: 92093

SEAL,SDO29X35X4.5

€ 6.00

92093A

920931435
ref: 92093A

SEAL,SDO22X29X5

€ 6.00

92143

921431676
ref: 92143

COLLAR

€ 4.00

92143A

921431867
ref: 92143A

COLLAR,6.5X14X24

€ 4.00

92151

921511133
ref: 92151

BOLT,6X12

€ 1.50

92151A

921511234
ref: 92151A

BOLT,6X50

€ 1.50

92152

921521137
ref: 92152

COLLAR,17.1X29X7.5

€ 5.00

92153

921530620
ref: 92153

BOLT,8X56

€ 2.50

92172

921720119
ref: 92172

SCREW,5X8

€ 1.50

92200

922000202
ref: 92200

WASHER,17.2X30X2.3

€ 3.00

92210

922100179
ref: 92210

NUT,LOCK,16MM

€ 14.50
