CYLINDER HEAD/CYLINDER
KX250R7F KX250 2007 USA CANADA

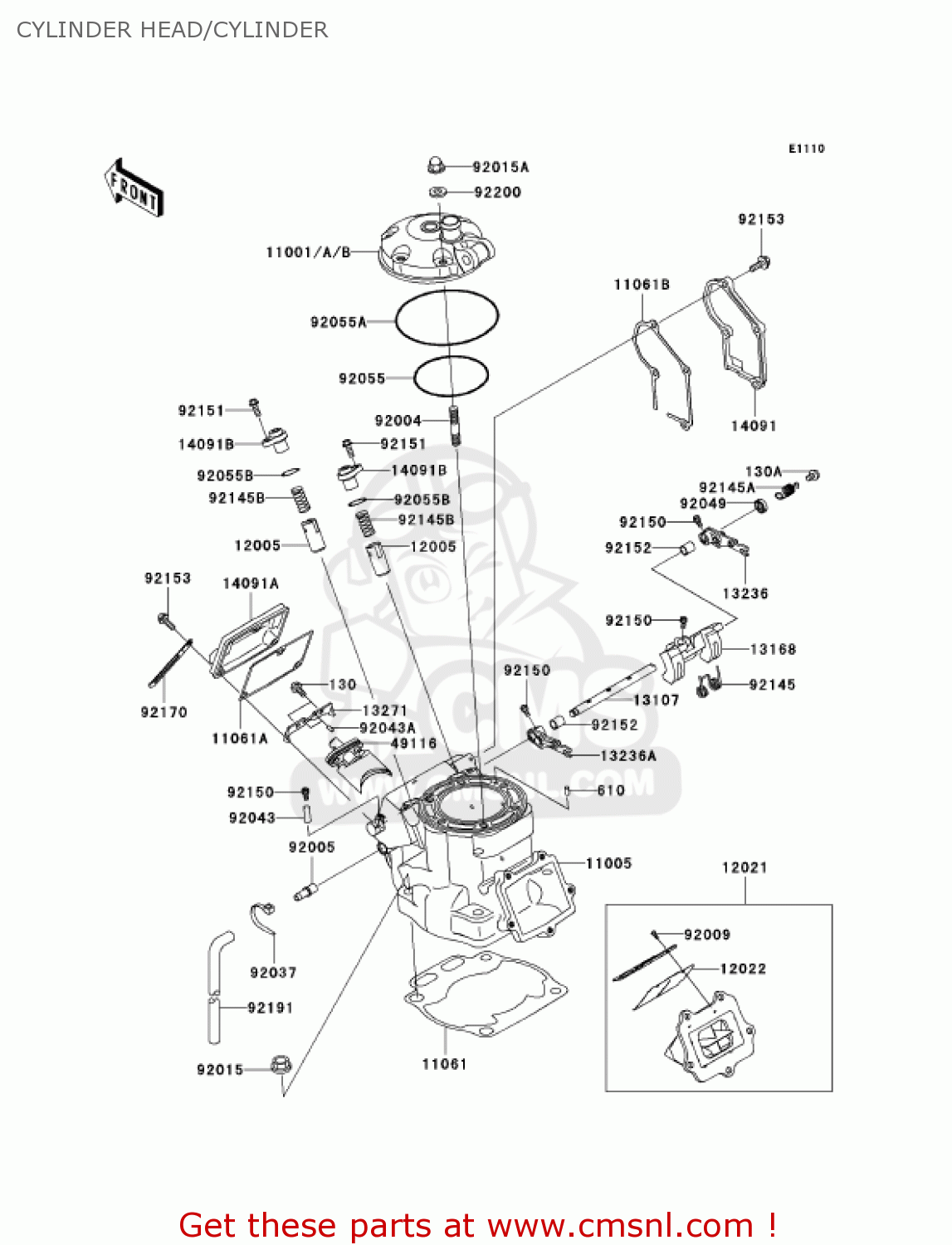

Cylinder head/cylinder diagram KX250R7F KX250 2007 USA CANADA
CYLINDER HEAD/CYLINDER KX250R7F KX250 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11001A
110010107
ref: 11001A
HEAD-CYLINDER
€ 188.00
11001B
110010108
ref: 11001B
(OPTION)
HEAD-CYLINDER
€ 238.00
11005
110050054
ref: 11005
CYLINDER-ENGINE
€ 650.00
11061
110610091
ref: 11061
GASKET,CYLINDER BASE (NAS)
€ 10.50
11061A
110610092
ref: 11061A
GASKET,CNT (NAS)
€ 5.00
11061B
110610093
ref: 11061B
GASKET,GOVERNOR COVER (NAS)
€ 6.00
12005
120050019
ref: 12005
VALVE-EXHAUST,SUB
€ 18.00
12021
120210014
ref: 12021
VALVE-ASSY-REED
€ 219.50
12022
120220004
ref: 12022
VALVE-REED
€ 50.00
13107
131070062
ref: 13107
SHAFT
€ 19.00
13168
131680058
ref: 13168
LEVER,VALVE-ASSY,MAIN
€ 73.00
13236
132360054
ref: 13236
LEVER-COMP,RH
€ 44.00
13236A
132360081
ref: 13236A
LEVER-COMP,LH
€ 44.00
13271
132710518
ref: 13271
PLATE
€ 5.50
14091
140910215
ref: 14091
COVER,RH
€ 30.50
14091A
140910217
ref: 14091A
COVER,CNT
€ 30.50
14091B
140910437
ref: 14091B
COVER,SUB VALVE
€ 10.50
49116
491160007
ref: 49116
VALVE-ASSY,MAIN
€ 154.00
92004
920041110
ref: 92004
STUD,8X20
€ 8.00
92005
920051127
ref: 92005
FITTING,BREATHER
€ 13.00
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92015
92015077
ref: 92015
NUT, 10MM
€ 3.00
92015A
920151151
ref: 92015A
NUT,CAP,8MM
€ 3.00
92037
920371173
ref: 92037
CLAMP,SPARK PLUG CAP
€ 1.00
92043
920430033
ref: 92043
PIN,3X8.5
€ 1.00
92043A
920430068
ref: 92043A
PIN,3X6.8
€ 1.50
92049
920491238
ref: 92049
SEAL-OIL,SD088144
€ 8.50
92055
920550049
ref: 92055
RING-O,73.9X1.9
€ 8.00
92055A
920550050
ref: 92055A
RING-O,102X1.9
€ 8.00
92055B
920550058
ref: 92055B
RING-O,8.8X1.9
€ 3.00
92145
921450180
ref: 92145
SPRING
€ 4.00
92145A
921450284
ref: 92145A
SPRING,MAIN,VALVE
€ 5.00
92145B
921450298
ref: 92145B
SPRING
€ 2.00
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
92151
921511423
ref: 92151
BOLT
€ 1.00
92152
921520264
ref: 92152
COLLAR,8.1X10.0X11.2
€ 2.50
92153
921530859
ref: 92153
BOLT,5X16
€ 1.50
92170
921701514
ref: 92170
CLAMP
€ 2.50
92191
921911692
ref: 92191
TUBE,5.8X10.8X225
€ 6.00
130
130G0512
ref: 130
BOLT-FLANGED
€ 1.00
130A
130L0508
ref: 130A
BOLT-FLANGED
€ 2.00
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92200
922000273
ref: 92200
WASHER,HEAD
€ 1.50
