REAR HUB
KX250R7F KX250 2007 USA CANADA

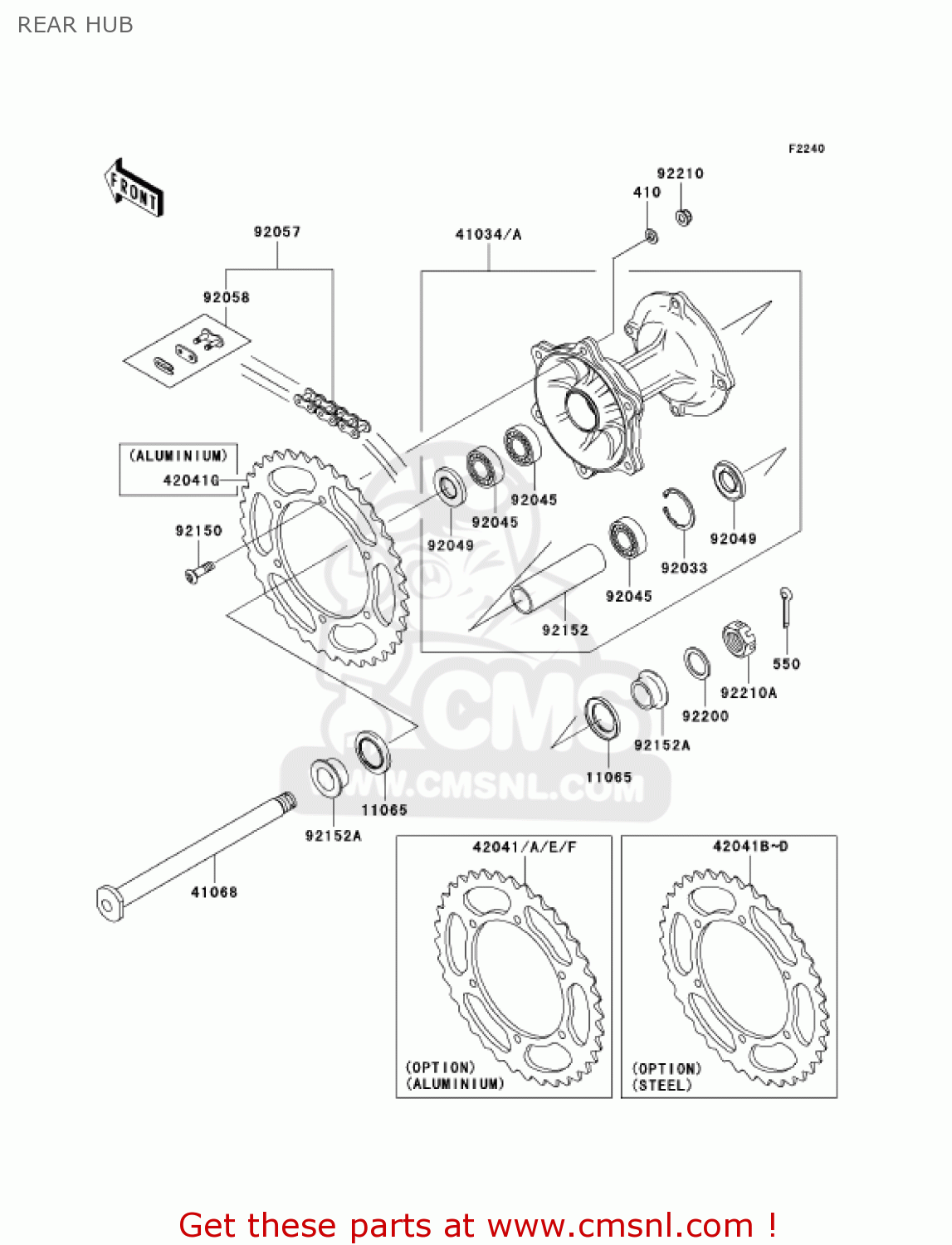

Rear hub diagram KX250R7F KX250 2007 USA CANADA
REAR HUB KX250R7F KX250 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
550
550D3035
ref: 550
PIN-COTTER,3.0X35
€ 2.00
11065
110651253
ref: 11065
CAP,AXLE
€ 4.50
41034A
41034003810Y
ref: 41034A
DRUM-ASSY,REAR BRAKE,
€ 360.50
41068
410681466
ref: 41068
AXLE,RR
€ 74.50
42041
420410001
ref: 42041
(OPTION)
SPROCKET-HUB,52T
€ 155.00
42041A
420410002
ref: 42041A
(OPTION)
SPROCKET-HUB,53T
€ 151.50
42041B
420411408
ref: 42041B
(OPTION)
SPROCKET-HUB,50T
€ 37.00
42041C
420411428
ref: 42041C
(OPTION)
SPROCKET-HUB,51T
€ 37.00
42041D
420411429
ref: 42041D
(OPTION)
SPROCKET-HUB,52T
€ 50.50
42041E
420411449
ref: 42041E
(OPTION)
SPROCKET-HUB,49T,AL
€ 80.00
42041F
420411450
ref: 42041F
(OPTION)
SPROCKET-HUB,50T,AL
€ 80.00
42041G
420411451
ref: 42041G
SPROCKET-HUB,51T,AL
€ 80.00
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92045
920451446
ref: 92045
BEARING-BALL,69052RS
€ 33.50
92049
920491614
ref: 92049
SEAL-OIL
€ 10.00
92057
920570086
ref: 92057
CHAIN,DRIVE,DID520DMA
€ 56.50
92058
920581074
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92150
921501978
ref: 92150
BOLT
€ 5.50
92152
921521427
ref: 92152
COLLAR,REAR BRAKE DRU
€ 23.00
92152A
921521473
ref: 92152A
COLLAR,RR AXLE,L=17
€ 20.00
92200
922001623
ref: 92200
WASHER,22.5X35X2.3
€ 1.00
92210
922100159
ref: 92210
NUT,FLANGED,LOCK,8MM
€ 9.00
92210A
922101411
ref: 92210A
NUT,CASTLE,22MM
€ 8.00
