SWINGARM
KX250-N2 KX250F 2005 USA CANADA

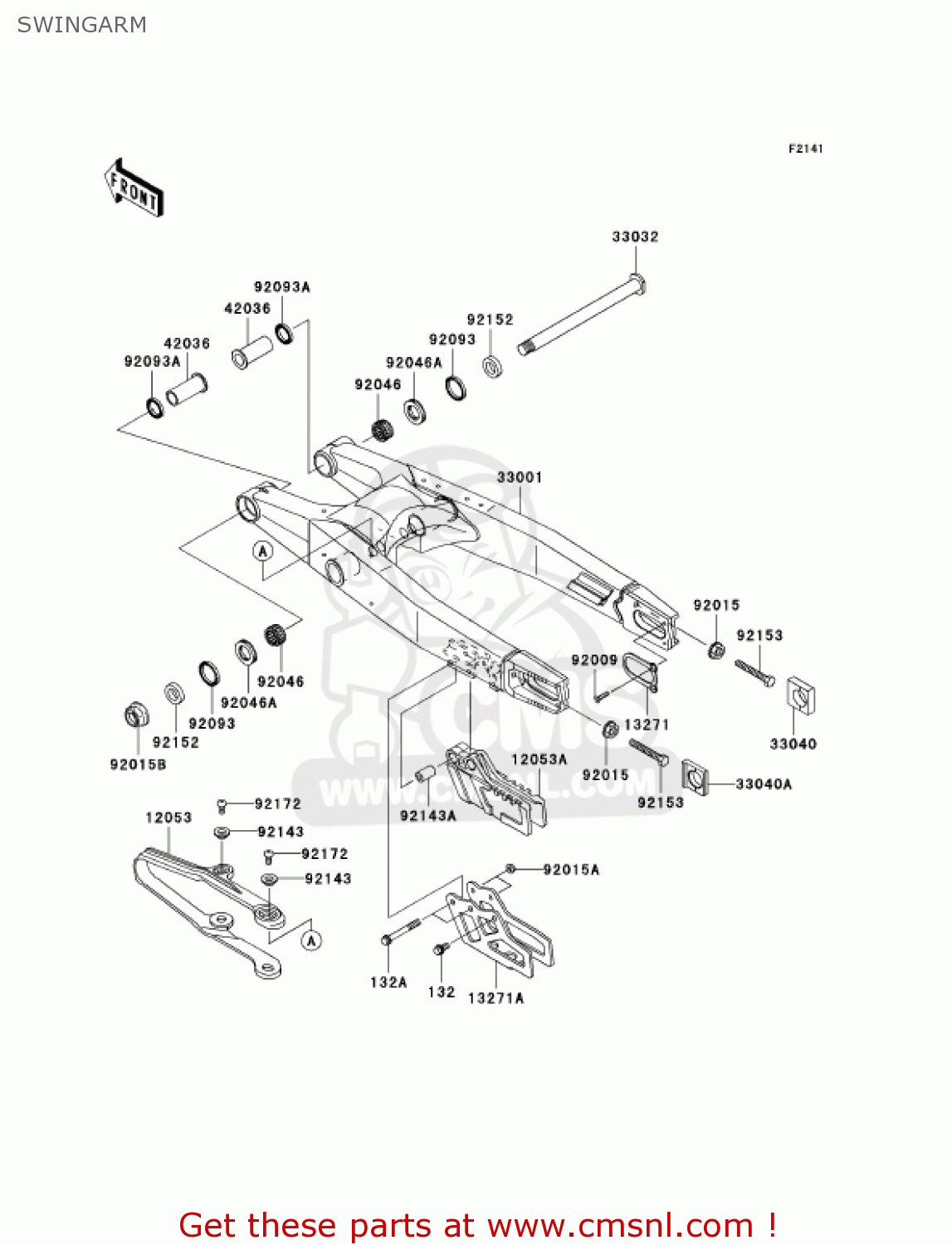

Swingarm diagram KX250-N2 KX250F 2005 USA CANADA
SWINGARM KX250-N2 KX250F 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0650
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
12053
120530019
ref: 12053
GUIDE-CHAIN,DRIVE,FR
€ 27.50
12053A
120531468
ref: 12053A
GUIDE-CHAIN
€ 52.00
13271
132711833
ref: 13271
PLATE,AXLE
€ 12.00
13271A
132711834
ref: 13271A
PLATE,CHAIN GUIDE
€ 35.00
33001
330010057458A
ref: 33001
ARM-COMP-SWING,P.SILV
€ 488.00
33032
330321189
ref: 33032
SHAFT-SWING ARM
€ 34.00
33040
330400013
ref: 33040
ADJUSTER-CHAIN,RH
€ 10.50
33040A
330401189
ref: 33040A
ADJUSTER-CHAIN,LH
€ 11.00
42036
420360003
ref: 42036
SLEEVE,SWING ARM,L=46
€ 16.00
92009
920091828
ref: 92009
SCREW
€ 1.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92015B
920151316
ref: 92015B
NUT,FLANGED,16MM
€ 16.50
92046
920461174
ref: 92046
BEARING-NEEDLE,TA2230
€ 37.50
92046A
920461240
ref: 92046A
BEARING-NEEDLE,NTBR22
€ 18.00
92093
920931434
ref: 92093
SEAL,SDO29X35X4.5
€ 6.00
92093A
920931435
ref: 92093A
SEAL,SDO22X29X5
€ 6.00
92143
921431676
ref: 92143
COLLAR
€ 4.00
92143A
921431867
ref: 92143A
COLLAR,6.5X14X24
€ 4.00
92152
921521137
ref: 92152
COLLAR,17.1X29X7.5
€ 5.00
92153
921530620
ref: 92153
BOLT,8X56
€ 2.50
92172
921720119
ref: 92172
SCREW,5X8
€ 1.50
