RADIATOR
KX250-N2 KX250F 2005 USA CANADA

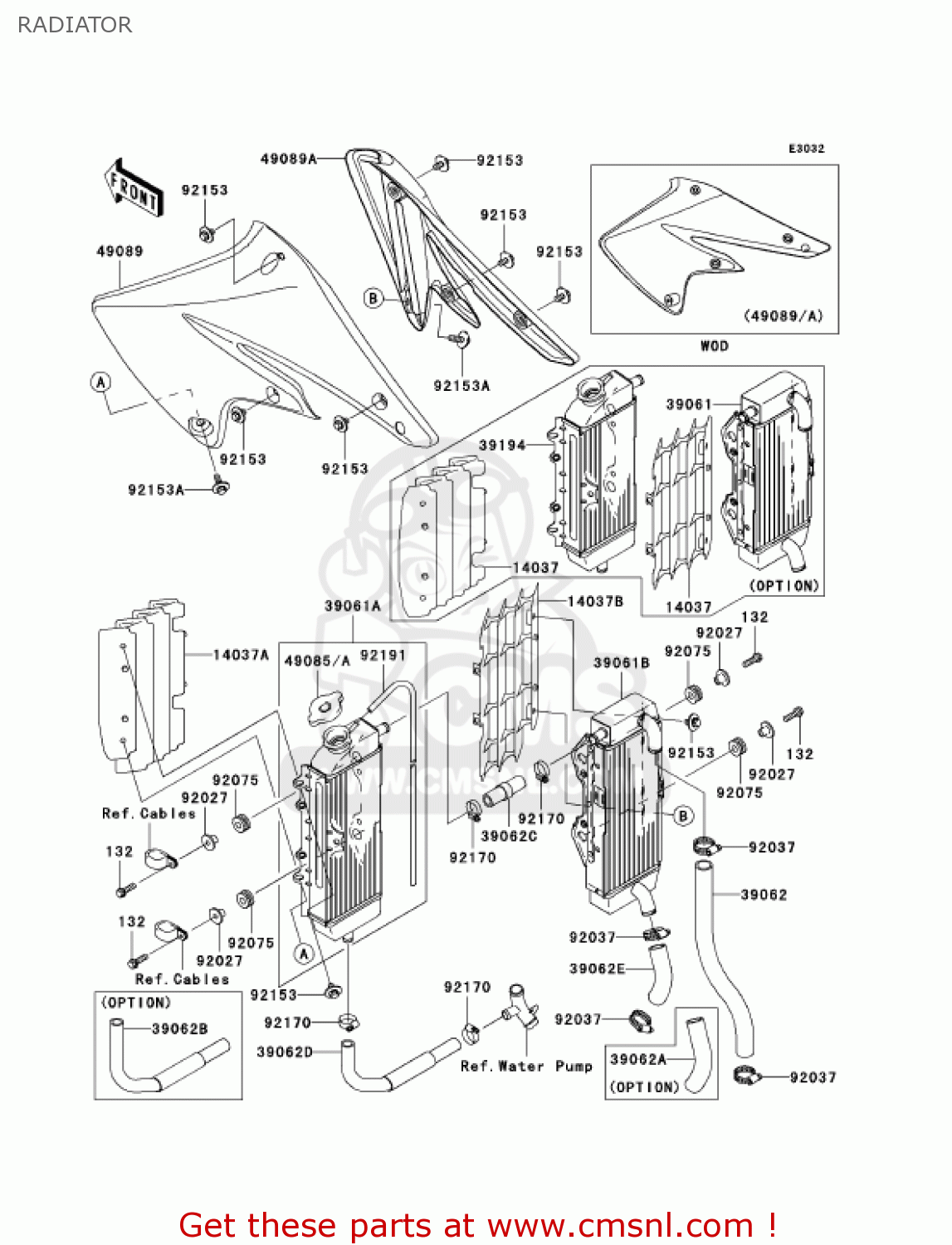

Radiator diagram KX250-N2 KX250F 2005 USA CANADA
RADIATOR KX250-N2 KX250F 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132L0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
14037
140370012RZ
ref: 14037
(OPTION)
SCREEN,WHITE
€ 16.50
14037A
140370029RZ
ref: 14037A
SCREEN,LH,WHITE
€ 16.50
14037B
140370030RZ
ref: 14037B
SCREEN,RH,WHITE
€ 17.00
39061
390610004
ref: 39061
(OPTION)
RADIATOR-ASSY,RH,CORE
€ 259.50
39061A
390610044
ref: 39061A
RADIATOR-ASSY,LH,CORE
€ 274.00
39061B
390610045
ref: 39061B
RADIATOR-ASSY,RH,CORE
€ 254.50
39062
390620012
ref: 39062
HOSE-COOLING,HEAD-RAD
€ 28.50
39062A
390620040
ref: 39062A
(OPTION)
HOSE-COOLING,RADIATOR
€ 11.50
39062B
390620041
ref: 39062B
(OPTION)
HOSE-COOLING,RADIATOR
€ 22.00
39062C
390620044
ref: 39062C
HOSE-COOLING,RADIATOR
€ 6.00
39062D
390620076
ref: 39062D
HOSE-COOLING,CORE:260
€ 24.50
39062E
390620082
ref: 39062E
HOSE-COOLING,CORE:260
€ 12.50
39194
391940006
ref: 39194
(OPTION)
RADIATOR-ASSY(SUB)
€ 569.50
49085
490851070
ref: 49085
CAP-ASSY-PRESSURE
€ 37.50
49085A
490851073
ref: 49085A
(OPTION)
CAP-ASSY-PRESSURE
€ 37.50
49089
490890020290A
ref: 49089
SHROUD-ENGINE,LH,L.GR
€ 43.50
49089A
490890021290A
ref: 49089A
SHROUD-ENGINE,RH,L.GR
€ 43.50
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92153
921530503
ref: 92153
BOLT,6X12
€ 2.00
92153A
921530864
ref: 92153A
BOLT,6X20
€ 5.00
92170
921701283
ref: 92170
CLAMP
€ 9.00
92191
921911211
ref: 92191
TUBE,6X9X700
€ 7.50
