FRAME FITTINGS
KX250-N2 KX250F 2005 USA CANADA

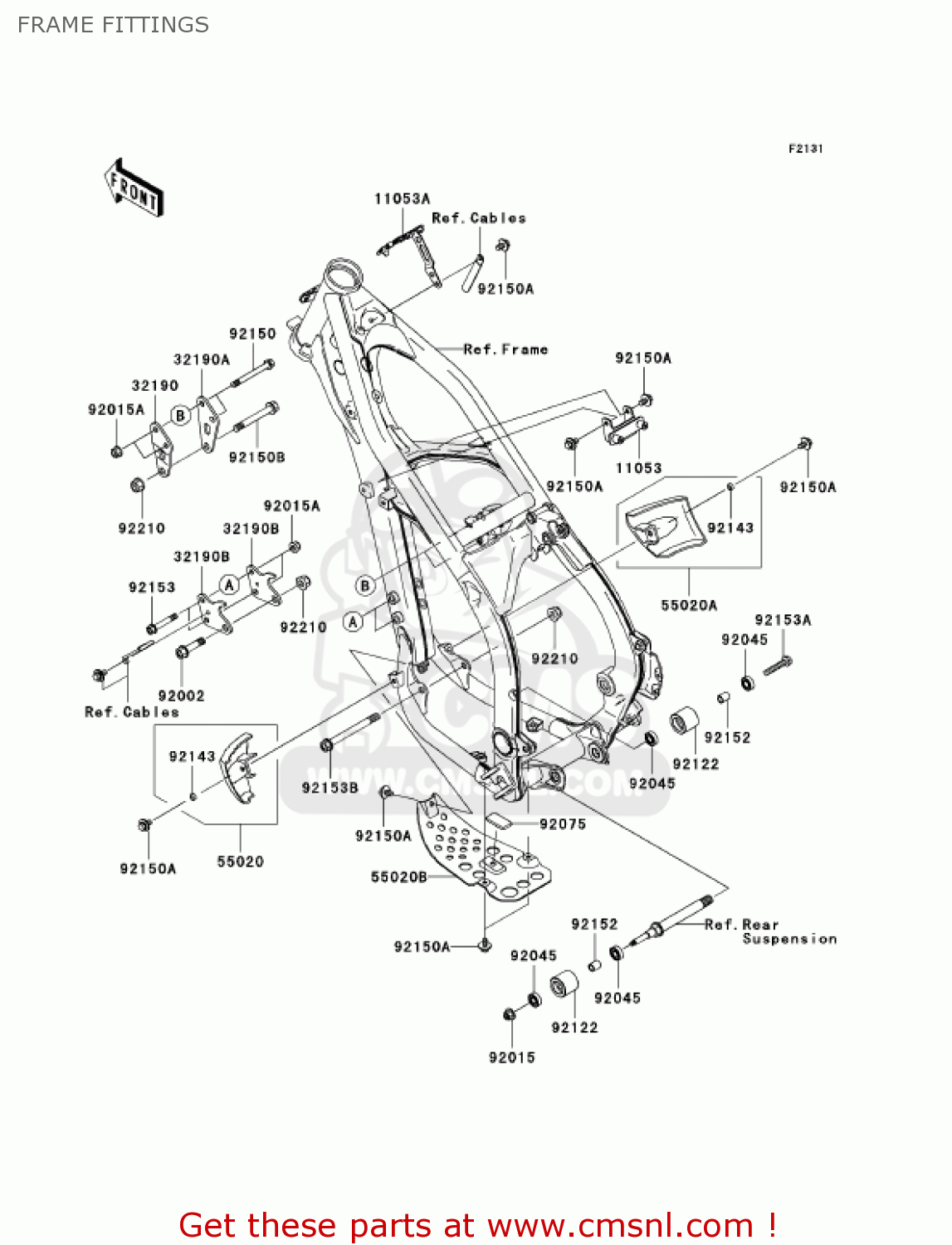

Frame fittings diagram KX250-N2 KX250F 2005 USA CANADA
FRAME FITTINGS KX250-N2 KX250F 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11053
110531300
ref: 11053
BRACKET,IGINITION COI
€ 13.00
11053A
110531637
ref: 11053A
BRACKET,IGNITER
€ 10.50
32190
321900014
ref: 32190
BRACKET-ENGINE,UPP,LH
€ 8.50
32190A
321900015
ref: 32190A
BRACKET-ENGINE,UPP,RH
€ 8.50
32190B
321900070
ref: 32190B
BRACKET-ENGINE,FR
€ 8.00
55020
550200023
ref: 55020
GUARD,ENGINE,FR,LH
€ 21.00
55020A
550200024
ref: 55020A
GUARD,ENGINE,FR,RH
€ 21.00
55020B
550200055
ref: 55020B
GUARD,ENGINE
€ 23.00
92002
920021576
ref: 92002
BOLT,ARM,10MM
€ 3.50
92015
920151339
ref: 92015
NUT,LOCK,FLANGED,6MM
€ 1.00
92015A
920151432
ref: 92015A
NUT,8MM
€ 4.50
92045
920451009
ref: 92045
BEARING-BALL,608LLU/2
€ 34.50
92075
920751054
ref: 92075
DAMPER
€ 3.00
92122
921220007
ref: 92122
ROLLER,CHAIN GUIDE
€ 9.00
92143
921431307
ref: 92143
COLLAR
€ 2.00
92150
921501214
ref: 92150
BOLT,FLANGED,8X50
€ 4.00
92150A
921501435
ref: 92150A
BOLT
€ 2.50
92150B
921501571
ref: 92150B
BOLT,FLANGED,10X42
€ 7.00
92152
921520211
ref: 92152
COLLAR,8.5X12.5X15.5
€ 4.50
92153
921530364
ref: 92153
BOLT,FLANGED,8X78
€ 3.00
92153A
921530585
ref: 92153A
BOLT,FLANGED,8X45
€ 2.50
92153B
921530615
ref: 92153B
BOLT,FLANGED,10X110
€ 6.00
92210
922101080
ref: 92210
NUT
€ 7.00
