FRONT FORK
KX250-N2 KX250F 2005 USA CANADA

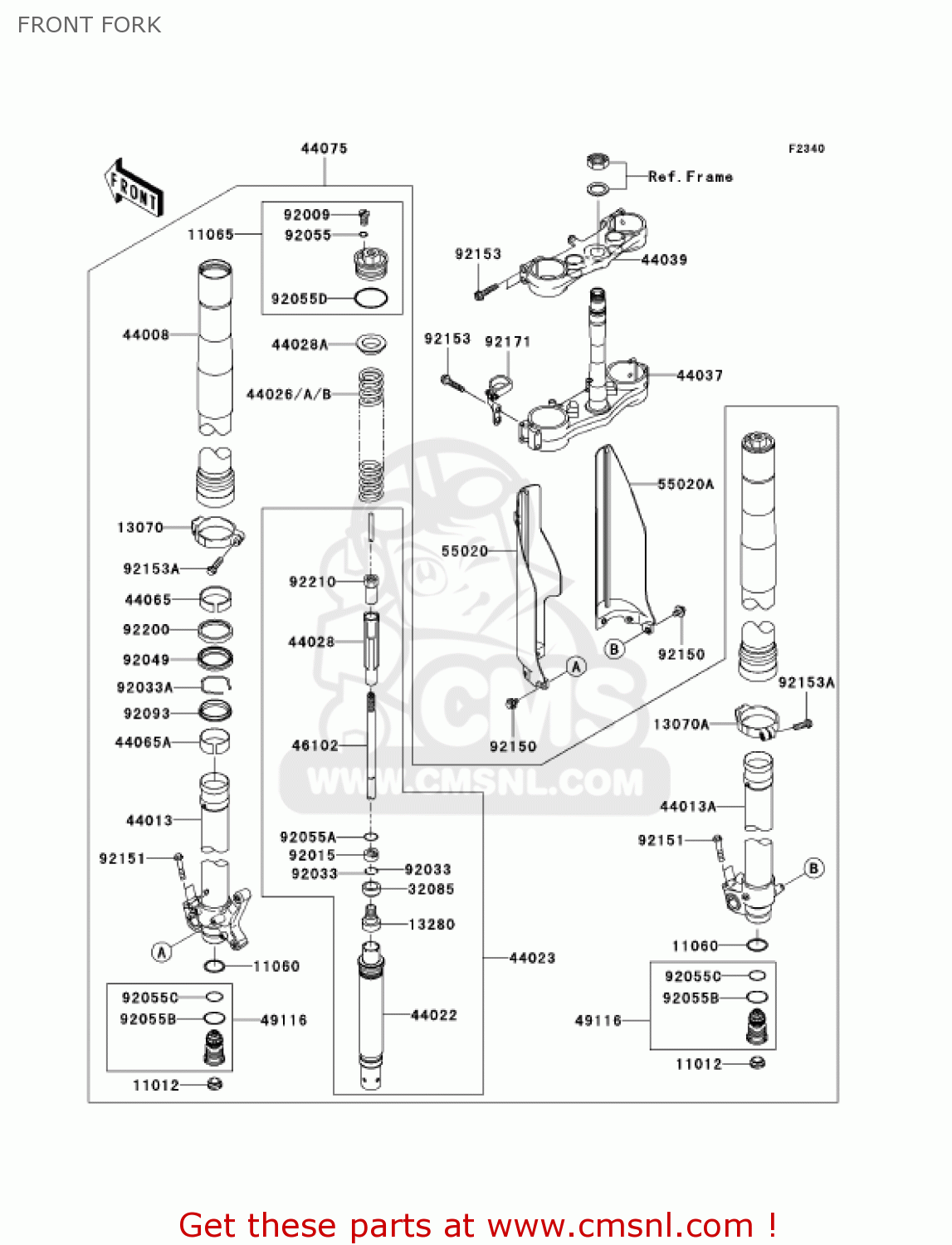

Front fork diagram KX250-N2 KX250F 2005 USA CANADA
FRONT FORK KX250-N2 KX250F 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121692
ref: 11012
CAP
€ 4.00
11060
110601707
ref: 11060
GASKET (NAS)
€ 3.00
11065
110651241
ref: 11065
CAP,FORK,TOP
€ 88.00
13070
130700025
ref: 13070
GUIDE,FORK,LH
€ 19.00
13070A
130700027
ref: 13070A
GUIDE,FORK,RH
€ 19.00
13280
132801127
ref: 13280
HOLDER
€ 12.50
32085
320851323
ref: 32085
STOPPER
€ 10.50
44008
440080010JS
ref: 44008
PIPE-FORK OUTER,BRONZ
€ 575.00
44013
440130030
ref: 44013
PIPE-FORK INNER,LH
€ 264.50
44013A
440130031
ref: 44013A
PIPE-FORK INNER,RH
€ 264.50
44022
440220006
ref: 44022
CYLINDER-FORK
€ 331.50
44023
440230025
ref: 44023
CYLINDER-SET-FORK
€ 908.50
44026
440260012
ref: 44026
(OPTION)
SPRING-FRONT FORK,K=4
€ 50.50
44026A
440260058
ref: 44026A
SPRING-FRONT FORK,K=4
€ 50.50
44026B
440260059
ref: 44026B
(OPTION)
SPRING-FRONT FORK,K=4
€ 50.50
44028
440280001
ref: 44028
GUIDE-FORK SPRING
€ 34.50
44028A
440281104
ref: 44028A
GUIDE-FORK SPRING
€ 10.50
44037
440370017
ref: 44037
HOLDER-FORK UNDER
€ 417.00
44039
440390017458A
ref: 44039
HOLDER-FORK UPPER,P.S
€ 144.50
44065
440650006
ref: 44065
BUSHING-FRONT FORK
€ 14.00
44065A
440651140
ref: 44065A
BUSHING-FRONT FORK
€ 15.00
44075
440750073JS
ref: 44075
DAMPER-SET-FORK,BRONZ
€ 1,462.50
46102
461020064
ref: 46102
ROD,PISTON,ASSY
€ 488.00
49116
491160012
ref: 49116
VALVE-ASSY,FORK
€ 116.50
55020
550200060RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 39.50
55020A
550200142RZ
ref: 55020A
GUARD,FORK,RH,WHITE
€ 40.50
92009
920091884
ref: 92009
SCREW
€ 4.50
92015
920151805
ref: 92015
NUT
€ 14.50
92033
920331271
ref: 92033
RING-SNAP
€ 3.50
92033A
920331329
ref: 92033A
RING-SNAP
€ 4.50
92049
920490056
ref: 92049
SEAL-OIL
€ 15.50
92055
920551441
ref: 92055
RING-O
€ 2.50
92055A
920551442
ref: 92055A
RING-O
€ 4.50
92055B
920551547
ref: 92055B
RING-O,FORK VALVE
€ 2.50
92055C
920551548
ref: 92055C
RING-O,FORK VALVE
€ 2.00
92055D
920551677
ref: 92055D
RING-O
€ 6.50
92093
920931566
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92151
921511877
ref: 92151
BOLT,FLANGED,8X40
€ 3.00
92153
921530484
ref: 92153
BOLT,FLANGED,8X40
€ 2.00
92153A
921530689
ref: 92153A
BOLT,FLANGED,6X20
€ 2.00
92171
921710414
ref: 92171
CLAMP,HOSE
€ 15.00
92200
922000067
ref: 92200
WASHER
€ 9.00
92210
922101177
ref: 92210
NUT
€ 14.00
