FRAME

KX250-H1 1990 EUROPE UK AL AS

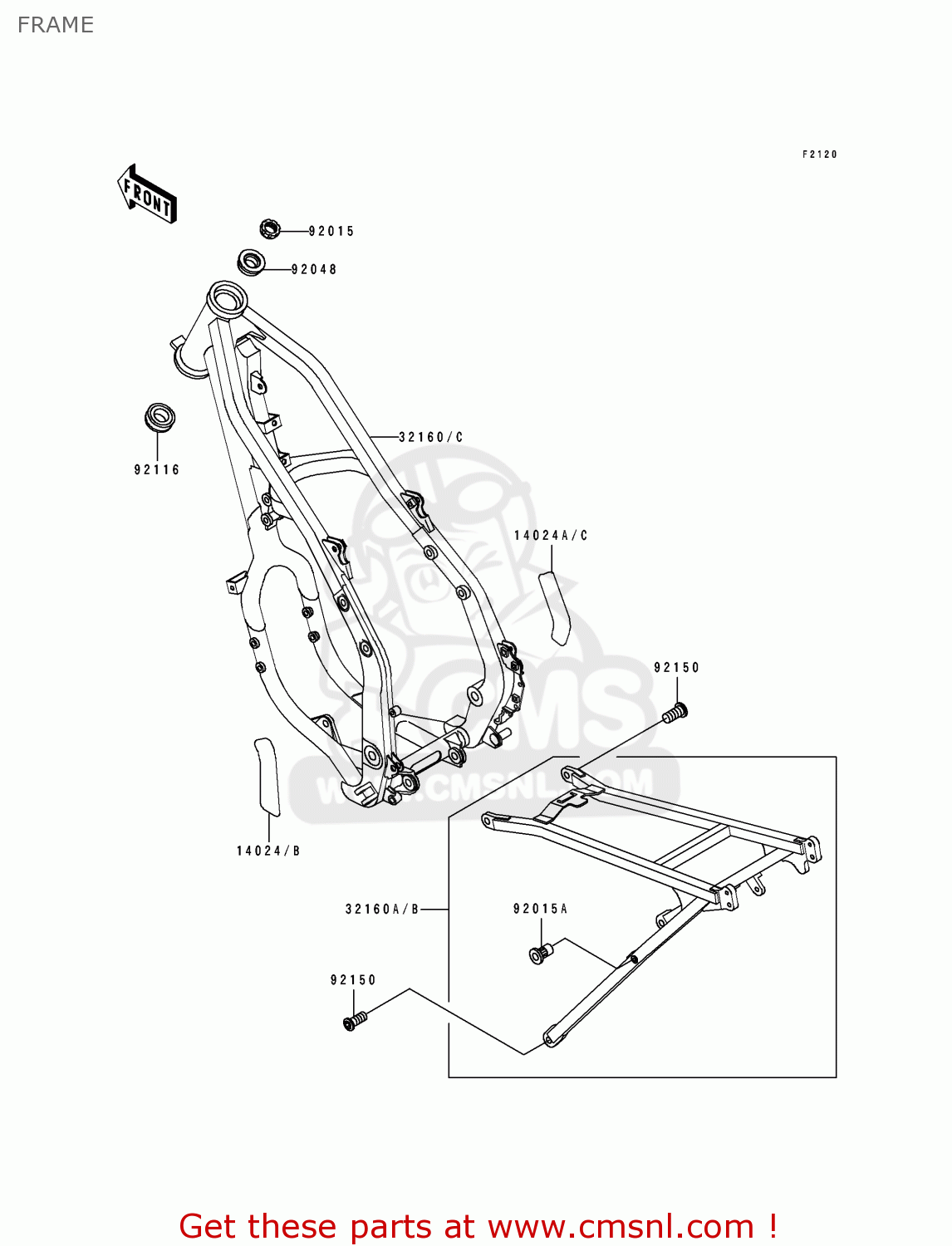

Frame diagram KX250-H1 1990 EUROPE UK AL AS

FRAME KX250-H1 1990 EUROPE UK AL AS

FRAME KX250-H1 1990 EUROPE UK AL AS

prices are in EUR

ref

part #

description

quantity

14024

140241922
ref: 14024

COVER,LH

€ 7.50

14024A

140241923
ref: 14024A

COVER,RH

€ 9.50

32160

321601094
ref: 32160

FRAME-COMP,FR

€ 721.00

32160A

321601096
ref: 32160A

FRAME-COMP,RR

€ 272.50

92015

920151684
ref: 92015

NUT,STEERING STEM,25M

€ 15.50

92015A

920151792
ref: 92015A

NUT,POP,6MM,L=16.5

€ 3.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00

92150

921501266
ref: 92150

BOLT

€ 5.50
