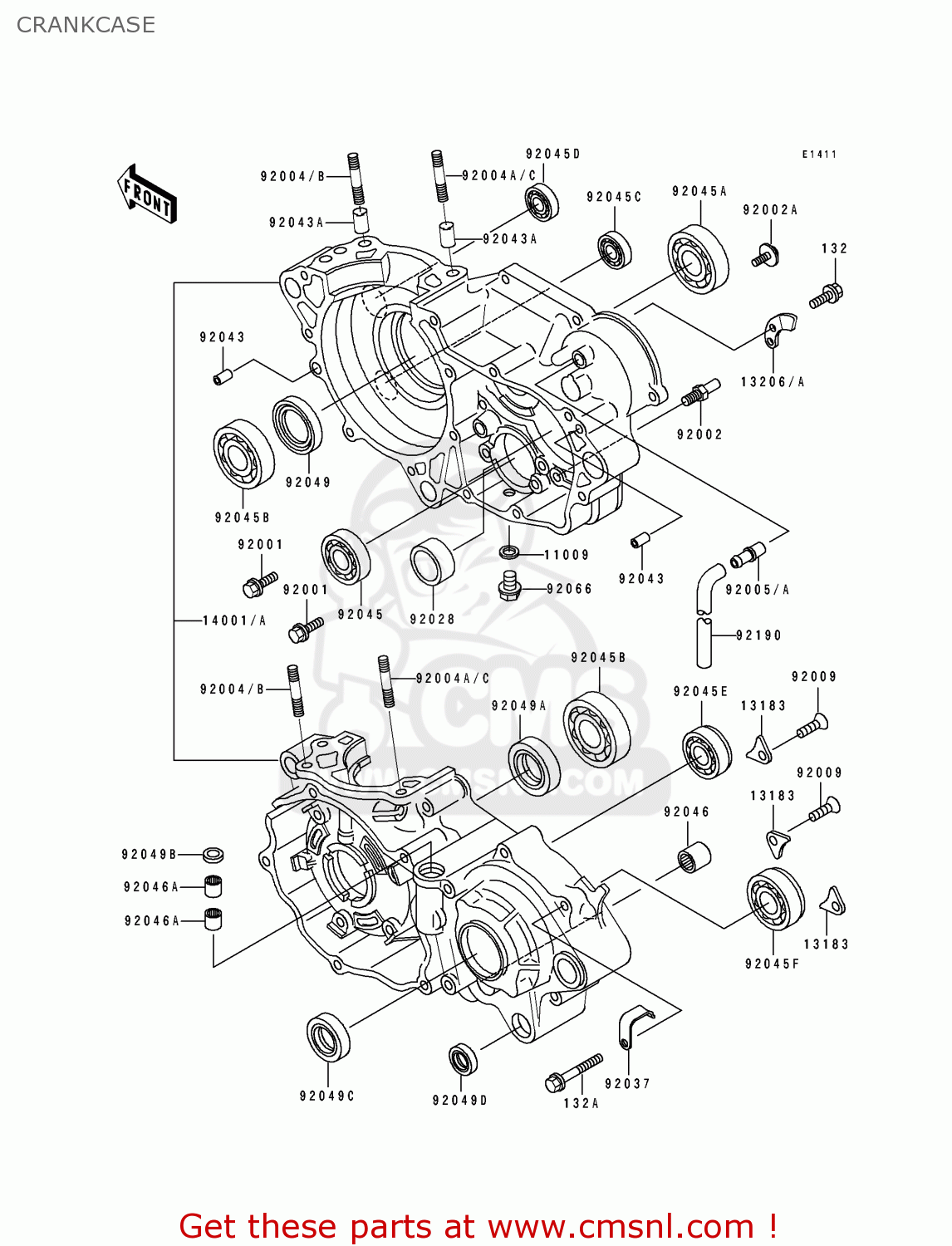

CRANKCASE

ref

part #

description

quantity

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

132A

132G0645
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

13183

131831182
ref: 13183

PLATE

€ 3.00

13206

132061059
ref: 13206

GUIDE-KICK

€ 7.00

14001

140015275
ref: 14001

SET-CRANKCASE

€ 997.00

92001

920011829
ref: 92001

BOLT,W/WASHER,6X14

€ 2.50

92002

920021601
ref: 92002

BOLT,8X15

€ 5.00

92002A

920021659
ref: 92002A

BOLT

€ 3.00

92004

920041165
ref: 92004

STUD,10X53

€ 6.50

92004A

920041176
ref: 92004A

STUD,10X55

€ 8.00

92005

920051127
ref: 92005

FITTING,BREATHER

€ 13.00

92009

920091563
ref: 92009

SCREW,6X10

€ 2.50

92028

92028131
ref: 92028

BUSHING

€ 28.00

92037

920371318
ref: 92037

CLAMP,HARNESS

€ 4.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00

92045A

920451134
ref: 92045A

BEARING-BALL,63/22T2C

€ 36.00

92045B

920451183
ref: 92045B

BEARING-BALL,TMB3/28J

€ 50.50

92045C

920451211
ref: 92045C

BEARING-BALL

€ 11.00

92045D

920451212
ref: 92045D

BEARING-BALL

€ 11.50

92045E

920451233
ref: 92045E

BEARING-BALL

€ 32.00

92045F

920451240
ref: 92045F

BEARING-BALL,TMB205/5

€ 52.50

92046

92046037
ref: 92046

BEARING-NEEDLE,7E-HK1

€ 17.00

92046A

920461010
ref: 92046A

BEARING-NEEDLE,HK1210

€ 17.00

92049

920491051
ref: 92049

OIL SEAL,TCJ25457

€ 22.50

92049A

920491052
ref: 92049A

OIL SEAL,TCJ20407

€ 19.50

92049B

920491262
ref: 92049B

SEAL-OIL

€ 4.00

92049C

92050033
ref: 92049C

SEAL-OIL,TB3040

€ 14.00

92049D

92051005A
ref: 92049D

OIL SEAL,TB13225.5

€ 5.50

92066

920661241
ref: 92066

PLUG

€ 4.00

92190

921901116
ref: 92190

TUBE,6X9X330

€ 8.00
