CLUTCH
KX250-H1 1990 EUROPE UK AL AS

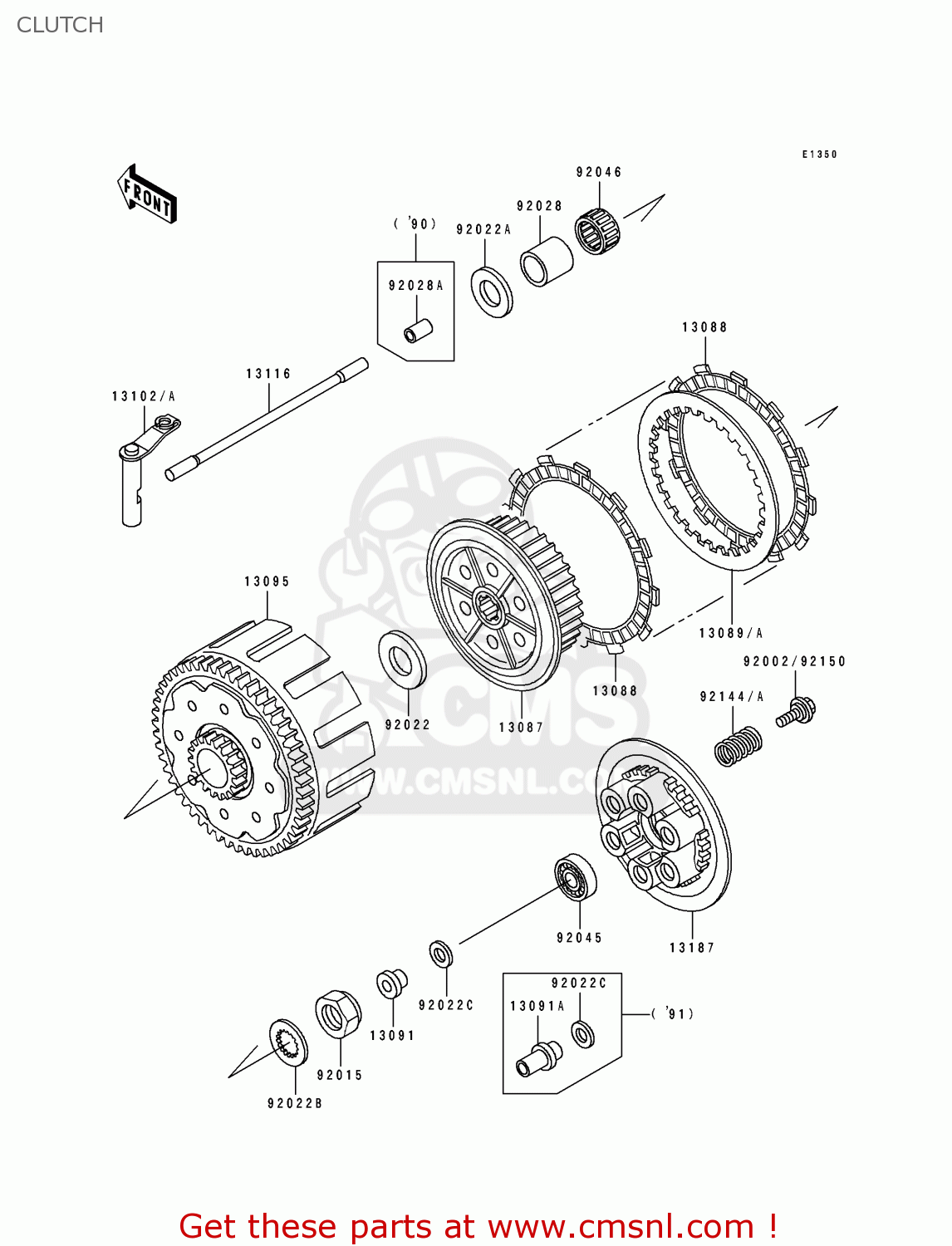

Clutch diagram KX250-H1 1990 EUROPE UK AL AS
CLUTCH KX250-H1 1990 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
13087
130871098
ref: 13087
HUB-CLUTCH
€ 111.00
13088
130881069
ref: 13088
PLATE-FRICTION (NAS)
€ 15.50
13089
130891079
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.00
13091
130911582
ref: 13091
HOLDER,ROD
€ 30.50
13095
130951206
ref: 13095
HOUSING-COMP-CLUTCH
€ 321.50
13102
131021107
ref: 13102
RELEASE-COMP-CLUTCH
€ 39.50
13116
131161124
ref: 13116
ROD-PUSH,L=205
€ 20.00
13187
131871060
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 63.00
92002
920021949
ref: 92002
BOLT
€ 4.00
92015
920151725
ref: 92015
NUT
€ 13.00
92022
920221739
ref: 92022
WASHER,22.5X46X2.6
€ 7.50
92022A
920221836
ref: 92022A
WASHER,22.3X38X2.0
€ 3.00
92022B
920221942
ref: 92022B
WASHER
€ 5.50
92022C
92022269
ref: 92022C
WASHER,PLAIN
€ 1.00
92028
920281551
ref: 92028
BUSHING
€ 22.00
92028A
920281587
ref: 92028A
BUSHING
€ 16.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92046
920461193
ref: 92046
BEARING-NEEDLE
€ 29.50
92144
921441484
ref: 92144
SPRING,CLUTCH
€ 4.50
