CRANKSHAFT/PISTON

KX250-H1 1990 EUROPE UK AL AS

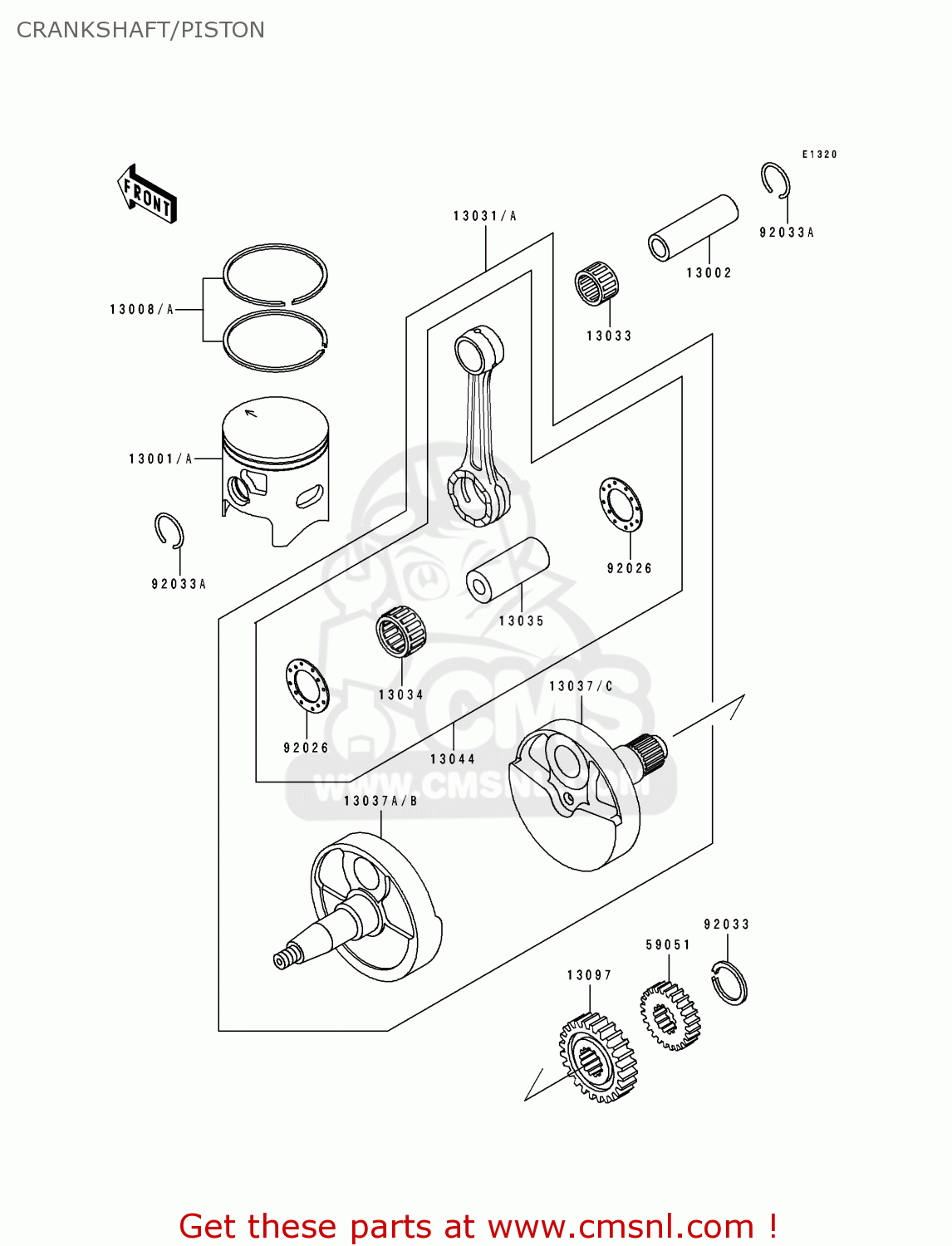

Crankshaft/piston diagram KX250-H1 1990 EUROPE UK AL AS

prices are in EUR

ref

part #

description

quantity

13001A

130011345
ref: 13001A

PISTON-ENGINE

€ 106.50

13002

130021068
ref: 13002

PIN-PISTON

€ 19.00

13008

130081091
ref: 13008

RING-SET-PISTON

€ 27.00

13031

130311302
ref: 13031

CRANKSHAFT-COMP

€ 548.00

13033

130331010
ref: 13033

BEARING-NEEDLE,KBK18X

€ 22.50

13034

130341076
ref: 13034

BEARING-BIG END,SKTZ2

€ 46.50

13035

13035034
ref: 13035

PIN-CRANK

€ 54.50

13037

130371372
ref: 13037

CRANKSHAFT,RH

€ 262.50

13037A

130371383
ref: 13037A

CRANKSHAFT,LH

€ 262.50

13044

130445056
ref: 13044

SET-CONNECTING ROD

€ 134.50

13097

130971208
ref: 13097

GEAR-PRIMARY SPUR,20T

€ 46.00

59051

590511193
ref: 59051

GEAR-SPUR,PUMP,18T

€ 20.00

92026

920261241
ref: 92026

SPACER

€ 4.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331267
ref: 92033A

RING-SNAP,PISTON PIN

€ 3.00

CRANKSHAFT/PISTON

all assemblies
