FRONT FORK
KX250-E1 1987 EUROPE UK AL

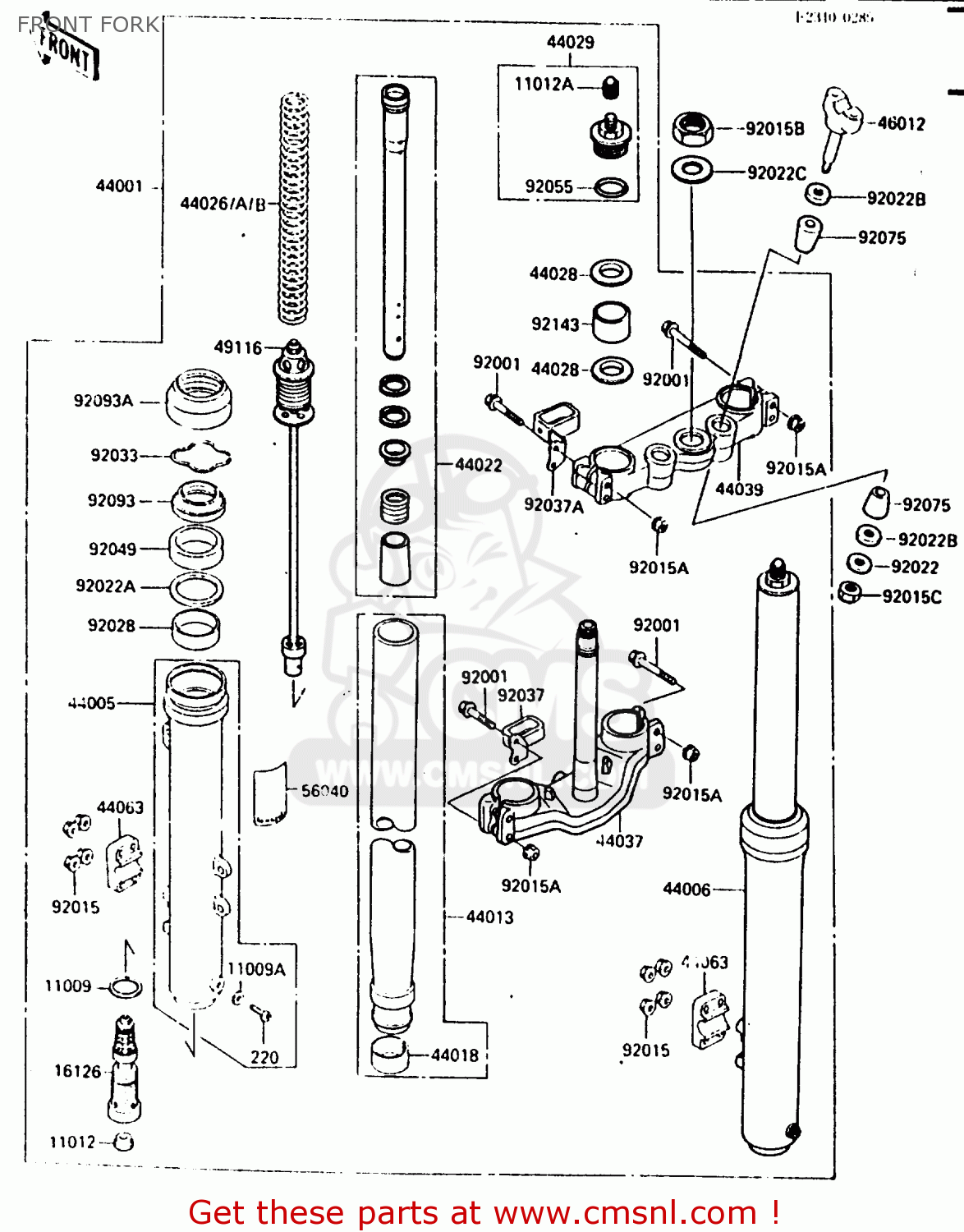

Front fork diagram KX250-E1 1987 EUROPE UK AL
FRONT FORK KX250-E1 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
11012A
110121391
ref: 11012A
CAP,VALVE AIR
€ 3.50
16126
161261185
ref: 16126
VALVE,FORK CYLINDER
€ 102.00
44001
440011643
ref: 44001
FORK-FRONT
€ 1,306.00
44005
440051253
ref: 44005
PIPE-LEFT FORK OUTER
€ 301.50
44006
440061243
ref: 44006
PIPE-RIGHT FORK OUTER
€ 246.00
44013
440131256
ref: 44013
PIPE-FORK INNER
€ 226.00
44018
440181005
ref: 44018
BUSHING-FRONT FORK,IN
€ 24.00
44022
440221205
ref: 44022
CYLINDER-FORK
€ 108.50
44026
440261314
ref: 44026
SPRING-FRONT FORK,K=0
€ 54.50
44026A
440261324
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=0
€ 57.50
44026B
440261325
ref: 44026B
(OPTION)
SPRING-FRONT FORK,K=0
€ 83.00
44028
440281010
ref: 44028
GUIDE-FORK SPRING
€ 7.00
44029
440291107
ref: 44029
SEAT-FORK SPRING
€ 38.50
44037
440371208
ref: 44037
HOLDER-FORK UNDER
€ 379.00
44039
440391147
ref: 44039
HOLDER-FORK UPPER
€ 194.00
44063
440631008
ref: 44063
HOLDER-FRONT AXLE
€ 31.00
46012
460121167
ref: 46012
HOLDER-HANDLE,LWR
€ 25.00
49116
491161068
ref: 49116
VALVE-ASSY,FORK
€ 123.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011639
ref: 92001
BOLT
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151485
ref: 92015A
NUT,FLANGED,8MM
€ 3.50
92015B
920151653
ref: 92015B
NUT,STEERING STEM,22M
€ 11.50
92015C
92019021
ref: 92015C
NUT,LOCK,10M/M
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221299
ref: 92022A
WASHER
€ 5.50
92022B
920221737
ref: 92022B
WASHER
€ 3.50
92022C
920221873
ref: 92022C
WASHER
€ 5.00
92028
920281145
ref: 92028
BUSHING
€ 19.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92037
920371627
ref: 92037
CLAMP
€ 19.50
92037A
920371628
ref: 92037A
CLAMP
€ 12.50
92049
920491104
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
92055
920551123
ref: 92055
RING-O
€ 4.00
92075
920751776
ref: 92075
DAMPER
€ 5.00
92093
920931086
ref: 92093
SEAL,FORK DUST
€ 12.50
92093A
920931184
ref: 92093A
SEAL,FORK
€ 12.50
92143
921431065
ref: 92143
COLLAR,L=55.5
€ 5.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
