CRANKCASE
KX250-E1 1987 EUROPE UK AL

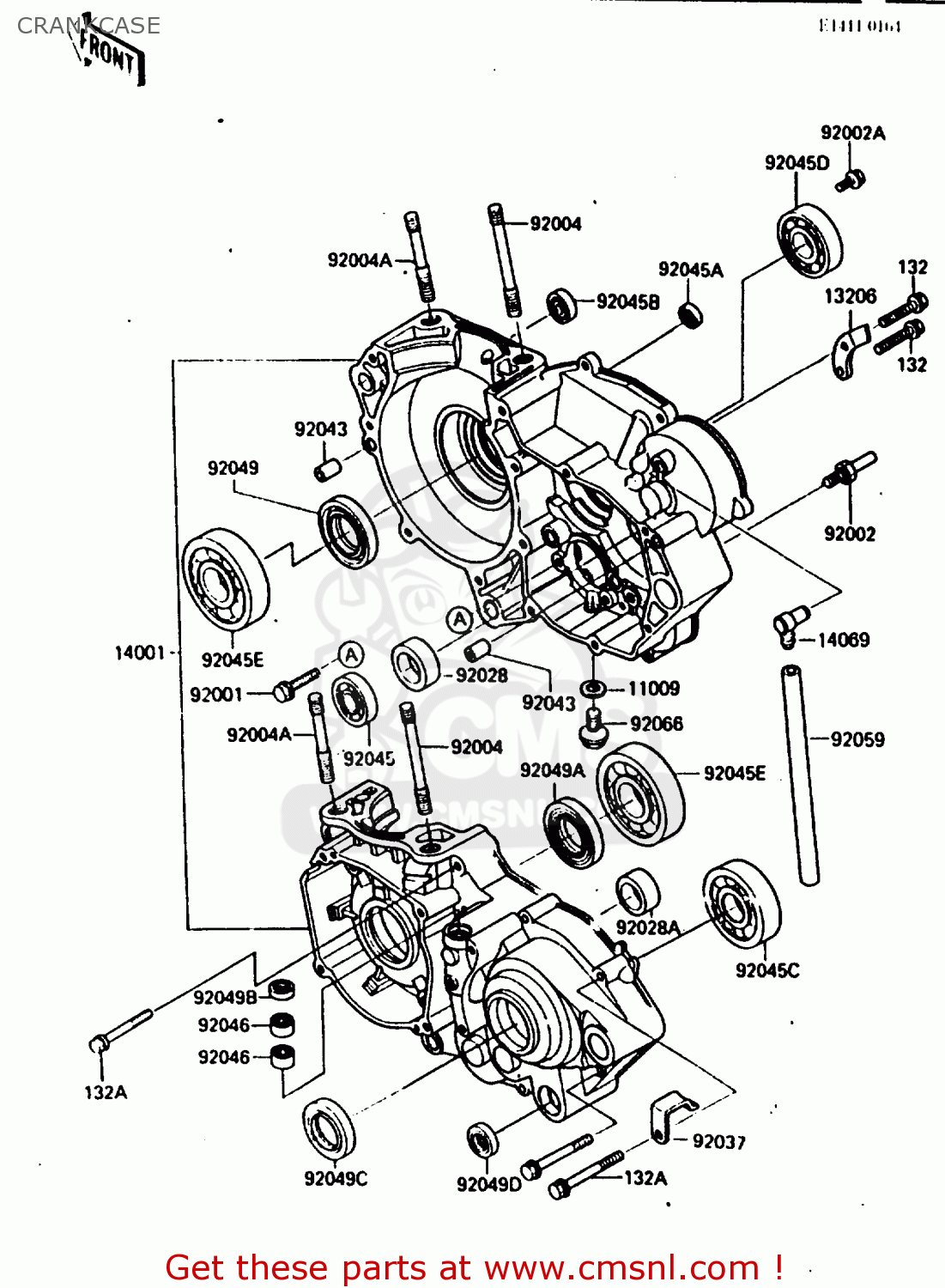

Crankcase diagram KX250-E1 1987 EUROPE UK AL
CRANKCASE KX250-E1 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13206
132061052
ref: 13206
GUIDE-KICK
€ 7.50
14001
140015226
ref: 14001
SET-CRANKCASE
€ 560.50
14069
14069002
ref: 14069
BREATHER
€ 17.50
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
€ 2.50
92002
920021601
ref: 92002
BOLT,8X15
€ 5.00
92002A
920021659
ref: 92002A
BOLT
€ 3.00
92004
920041032
ref: 92004
STUD,10X65
€ 6.50
92004A
920041165
ref: 92004A
STUD,10X53
€ 6.50
92028
92028131
ref: 92028
BUSHING
€ 28.00
92028A
92028132
ref: 92028A
BUSHING
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
€ 29.00
92045A
920451010
ref: 92045A
BEARING,BALL 626
€ 11.00
92045B
920451048
ref: 92045B
BEARING-BALL,#608
€ 11.50
92045C
920451105
ref: 92045C
BEARING-BALL,TMB205
€ 25.00
92045D
920451134
ref: 92045D
BEARING-BALL,63/22T2C
€ 36.00
92045E
920451183
ref: 92045E
BEARING-BALL,TMB3/28J
€ 50.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491051
ref: 92049
OIL SEAL,TCJ25457
€ 22.50
92049A
920491052
ref: 92049A
OIL SEAL,TCJ20407
€ 19.50
92049B
920491271
ref: 92049B
SEAL, OIL
€ 7.00
92049C
92050033
ref: 92049C
SEAL-OIL,TB3040
€ 14.00
92049D
92051005A
ref: 92049D
OIL SEAL,TB13225.5
€ 5.50
92059
92059061
ref: 92059
PIPE-BREATHER
€ 3.00
92066
920661241
ref: 92066
PLUG
€ 4.00
132
132G0618
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
