CLUTCH
KX250-E1 1987 EUROPE UK AL

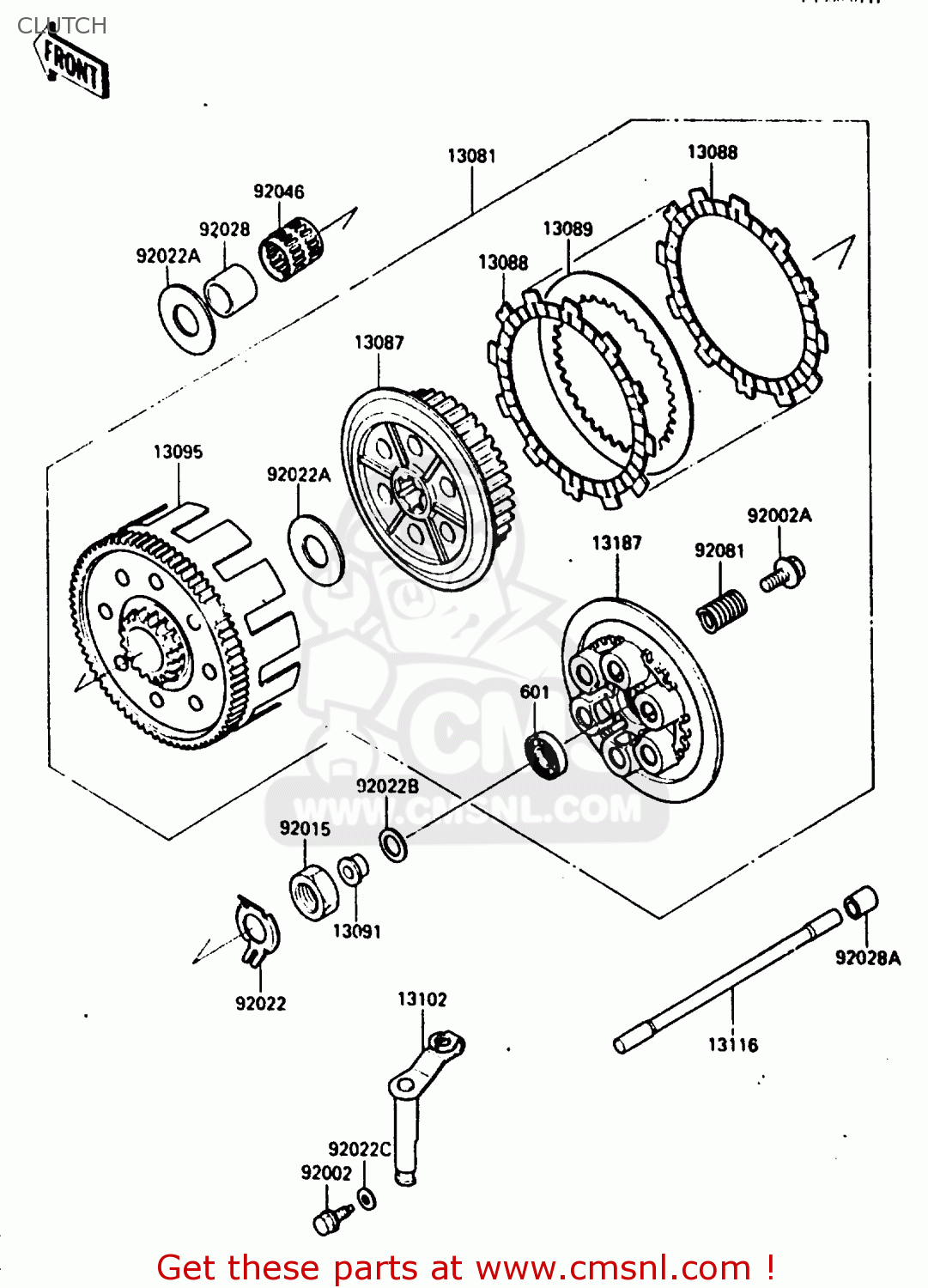

Clutch diagram KX250-E1 1987 EUROPE UK AL
CLUTCH KX250-E1 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
13081
130811242
ref: 13081
CLUTCH-ASSY
€ 445.50
13087
130871085
ref: 13087
HUB-CLUTCH
€ 71.50
13088
130881069
ref: 13088
PLATE-FRICTION (NAS)
€ 15.50
13089
130891074
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.00
13091
130911460
ref: 13091
HOLDER,ROD
€ 30.50
13095
130951155
ref: 13095
HOUSING-COMP-CLUTCH
€ 309.00
13102
131021090
ref: 13102
RELEASE-COMP-CLUTCH
€ 38.50
13116
131161125
ref: 13116
ROD-PUSH,L=202
€ 15.50
13187
131871060
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 63.00
92002
920021357
ref: 92002
BOLT
€ 3.00
92002A
920021949
ref: 92002A
BOLT
€ 4.00
92015
92016028
ref: 92015
NUT
€ 9.50
92022
920221835
ref: 92022
WASHER
€ 2.50
92022A
920221836
ref: 92022A
WASHER,22.3X38X2.0
€ 3.00
92022B
92022209
ref: 92022B
WASHER-PLAIN,30MM
€ 6.50
92022C
92022304
ref: 92022C
WASHER,PLAIN
€ 2.50
92028
920281385
ref: 92028
BUSHING,22X28X27.5
€ 17.50
92028A
920281484
ref: 92028A
BUSHING
€ 16.50
92046
920461149
ref: 92046
BEARING-NEEDLE,28R322
€ 21.00
92081
920811151
ref: 92081
SPRING,CLUTCH
€ 5.00
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
