KICKSTARTER MECHANISM (78-79)
KX250-A 1975

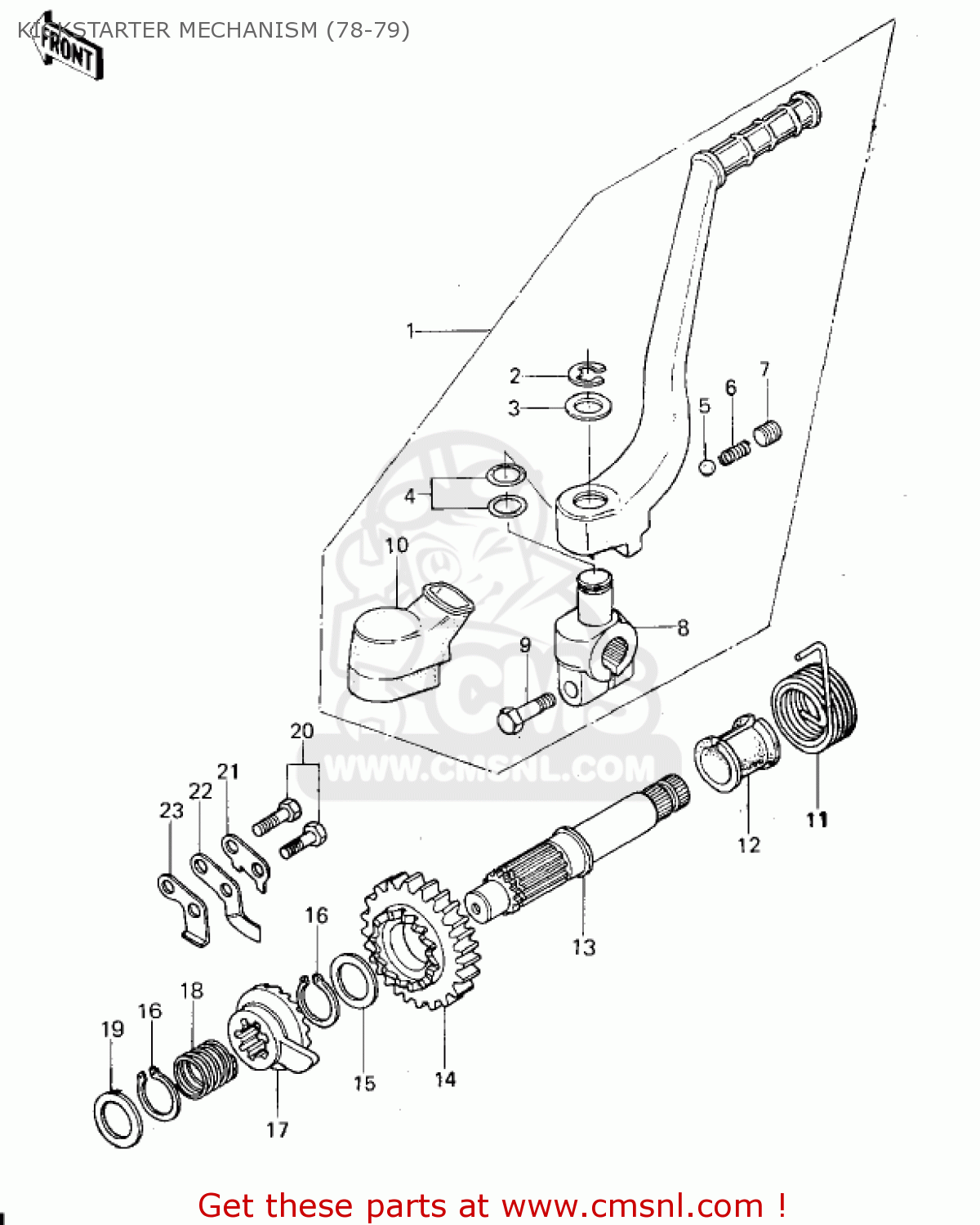

Kickstarter mechanism (78-79) diagram KX250-A 1975
KICKSTARTER MECHANISM (78-79) KX250-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
130641004
ref: 1
PEDAL ASSY,KICK
€ 186.50
2
482K0100
ref: 2
CIRCLIP-TYPE-E,10MM
€ 0.50
3
920221019
ref: 3
WASHER,15.2X20X1
€ 3.50
4
670B2015
ref: 4
O RING,15MM
€ 1.00
5
600A0800
ref: 5
BALL-STEEL,1/4
€ 0.50
6
92081020
ref: 6
SPRING-KICK PEDAL
€ 2.50
7
290Q0808
ref: 7
SCREW,8X8
€ 2.50
8
130611007
ref: 8
BOSS,KICK PEDAL
€ 65.50
9
920011042
ref: 9
BOLT,HEX HEAD,8X28
€ 4.00
10
490061006
ref: 10
BOOT,KICKSTARTER
€ 12.50
11
92082003
ref: 11
SPRING-KICKSTARTER
€ 19.00
12
13070007
ref: 12
GUIDE,KICK SPRING
€ 5.50
13
130661003
ref: 13
SHAFT,KICKSTATER
€ 57.00
14
13068025
ref: 14
GEAR-KICKSTARTER
€ 26.00
15
92022159
ref: 15
WASHER-THRUST,25MM
€ 5.50
16
92033026
ref: 16
CIRCLIP
€ 6.00
17
13078007
ref: 17
RATCHET
€ 50.00
18
92081097
ref: 18
SPRING
€ 7.50
19
92022252
ref: 19
WASHER
€ 4.00
20
112G0618
ref: 20
BOLT-UPSET
€ 0.50
21
92031010
ref: 21
WASHER,KICK STOPPER
€ 2.50
22
13206011
ref: 22
GUIDE,KICK STOPPER
€ 3.00
23
13072016
ref: 23
STOPPER,KICKSHAFT
€ 5.50
