FRONT HUB/BRAKE (KX250-A/A3)
KX250-A 1975

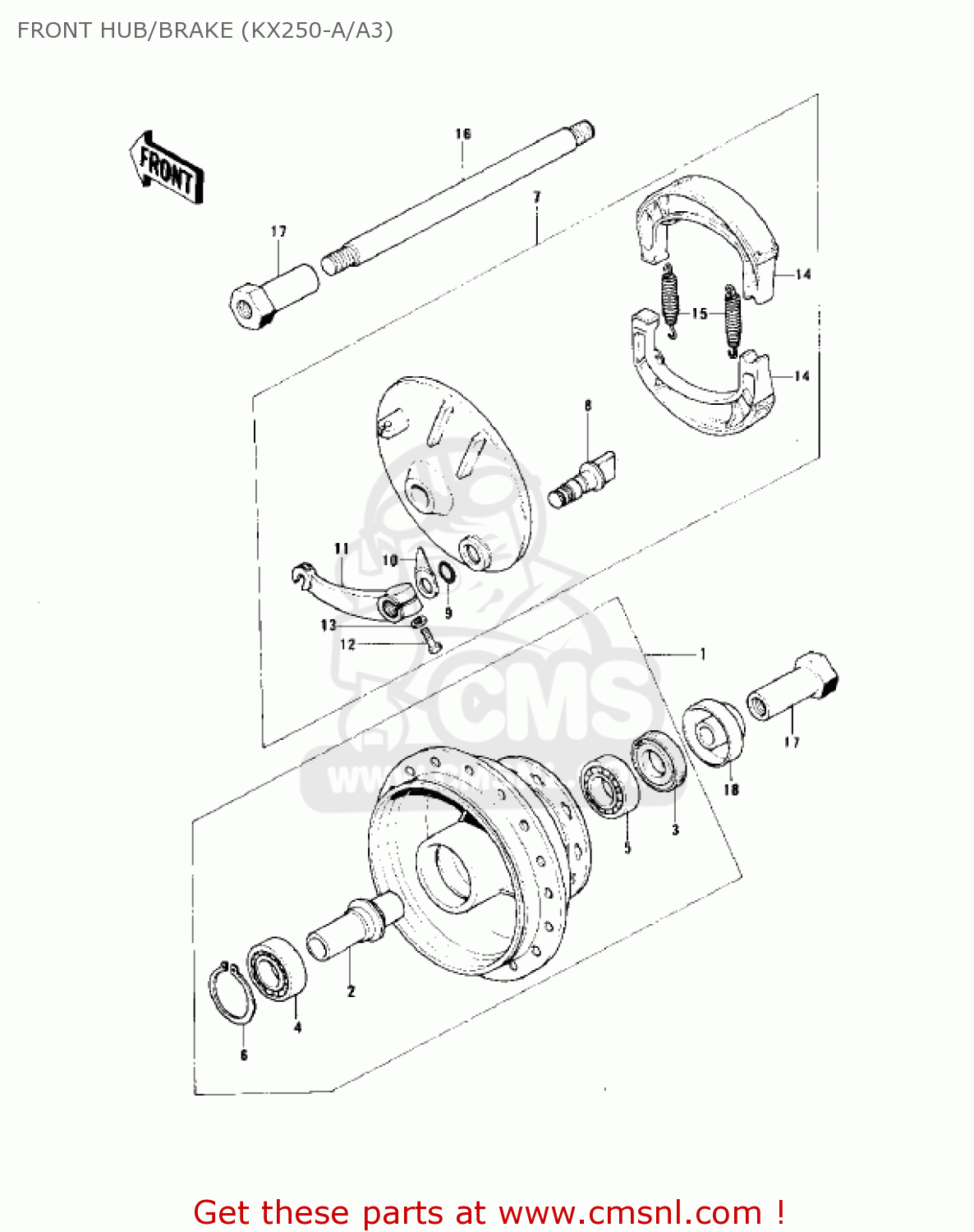

Front hub/brake (kx250-a/a3) diagram KX250-A 1975
FRONT HUB/BRAKE (KX250-A/A3) KX250-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
4103403921
ref: 1
KX250A/-A3
DRUM ASSY,FR BRK,BLK
€ 125.50
2
41039027
ref: 2
COLLAR,FR BRK DRUM
€ 4.50
3
654A224207
ref: 3
OIL SEAL,#22427
€ 3.00
4
92045033
ref: 4
BEARING,BALL,#6302NS
€ 20.00
5
601B6302
ref: 5
BEARING-BALL,#6302C3
€ 16.00
6
920331041
ref: 6
CIRCLIP,42MM
€ 4.00
7
4103506521
ref: 7
FLAT BLACK
PANEL ASSY,FR BRK,BLK
€ 125.00
8
42026021
ref: 8
CAM-BRAKE
€ 19.00
9
41051001
ref: 9
DUST SHIELD-BRAKE CAM
€ 2.50
10
41085017
ref: 10
INDICATOR,BRAKE SHOE
€ 7.50
11
41053023
ref: 11
LEVER,FRONT BRAKE CAM
€ 23.00
12
112G0625
ref: 12
BOLT-UPSET,6X25
€ 4.00
13
410B0600
ref: 13
WASHER-PLAIN-SMALL,6M
€ 0.50
14
410481068
ref: 14
SHOE-BRAKE (NAS)
€ 16.00
15
42020004
ref: 15
SPRING-BRAKE SHOE
€ 5.50
16
41068048
ref: 16
AXLE,FRONT
€ 26.50
17
41069031
ref: 17
COLLAR,FRONT AXLE
€ 20.50
18
41069030
ref: 18
COLLAR,FRONT AXLE
€ 7.50
