AIR CLEANER/MUFFLER (74-76)
KX250-A 1975

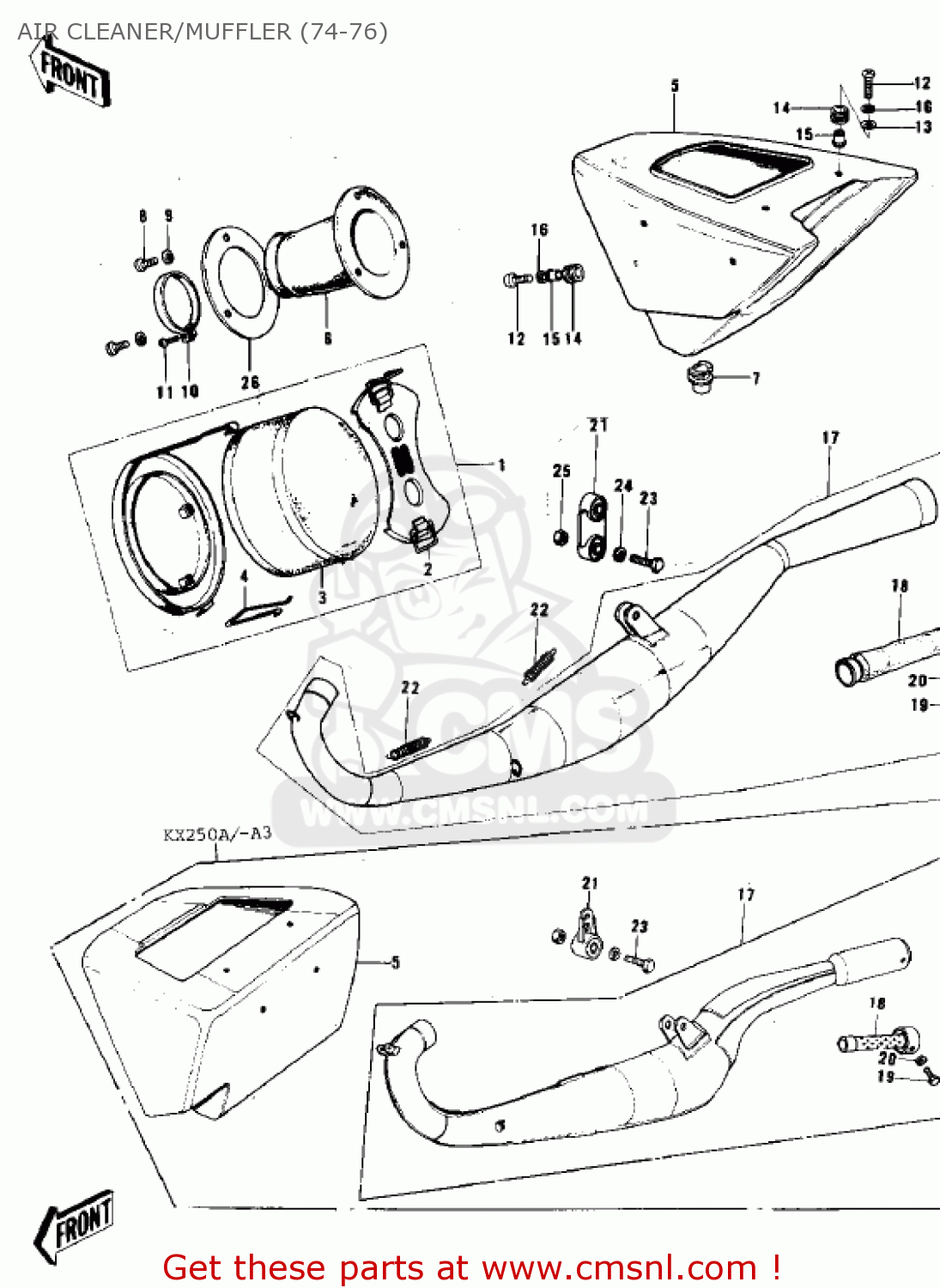

Air cleaner/muffler (74-76) diagram KX250-A 1975
AIR CLEANER/MUFFLER (74-76) KX250-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
11010073
ref: 1
AIR CLEANER ASSY
€ 129.00
2
11012040
ref: 2
CAP,AIR CLEANER
€ 6.50
3
11013043
ref: 3
ELEMENT,AIR CLEANER
€ 57.00
4
92079007
ref: 4
FASTNER,AIR CLEANER
€ 3.00
5
11011033
ref: 5
BODY,AIR CLEANER
€ 140.00
5
11011047
ref: 5
KX250A/-A3
BODY,AIR CLEANER
€ 129.00
6
11015039
ref: 6
PIPE, AIR INLET
€ 20.50
7
92067019
ref: 7
PLUG,AIR DRAIN
€ 2.50
8
220B0616
ref: 8
SCREW-PAN HEAD,6X16
€ 2.50
9
410B0600
ref: 9
WASHER-PLAIN-SMALL,6M
€ 0.50
10
92037115
ref: 10
CLAMP
€ 4.00
11
220B0635
ref: 11
SCREW-PAN HEAD,6X35
€ 1.00
12
220B0620
ref: 12
SCREW-PAN HEAD,6X20
€ 2.50
13
92022125
ref: 13
WASHER,6.5X20X1.6
€ 1.00
14
92075076
ref: 14
DAMPER
€ 3.00
15
92027194
ref: 15
COLLAR
€ 3.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
€ 0.50
17
18002112
ref: 17
MUFFLER ASSY
€ 192.00
17
1800115621
ref: 17
KX250A/-A3
MUFFLER ASSY,F,BLACK
€ 233.50
18
18033080
ref: 18
BAFFLE TUBE
€ 40.00
18
18033092
ref: 18
KX250A/-A3
BAFFLE TUBE
€ 53.50
19
112G0612
ref: 19
BOLT-UPSET
€ 2.50
19
112G0610
ref: 19
KX250A/-A3
BOLT,6X10
€ 0.50
20
464H0600
ref: 20
WASHER-LOCK,6MM
€ 0.50
20
461F0600
ref: 20
KX250A/-A3
WASHER-SPRING,6MM
€ 0.50
21
18024022
ref: 21
BRACKET,MUFFLER
€ 24.50
21
18024026
ref: 21
KX250A/-A3
BRACKET,MUFFLER
€ 29.50
22
18071006
ref: 22
SPRING,MUFFLER
€ 7.50
23
110N0835
ref: 23
BOLT, HEX HEAD, 8X35
€ 1.50
23
110N0840
ref: 23
KX250A/-A3
BOLT,8X40
€ 1.00
24
461F0800
ref: 24
WASHER-SPRING,8MM
€ 0.50
25
92019018
ref: 25
NUT,8MM
€ 5.50
26
92095013
ref: 26
HOLDER,AIR CLEANER
€ 2.50
