FENDERS/NUMBER PLATES (74-76)
KX250-A 1975

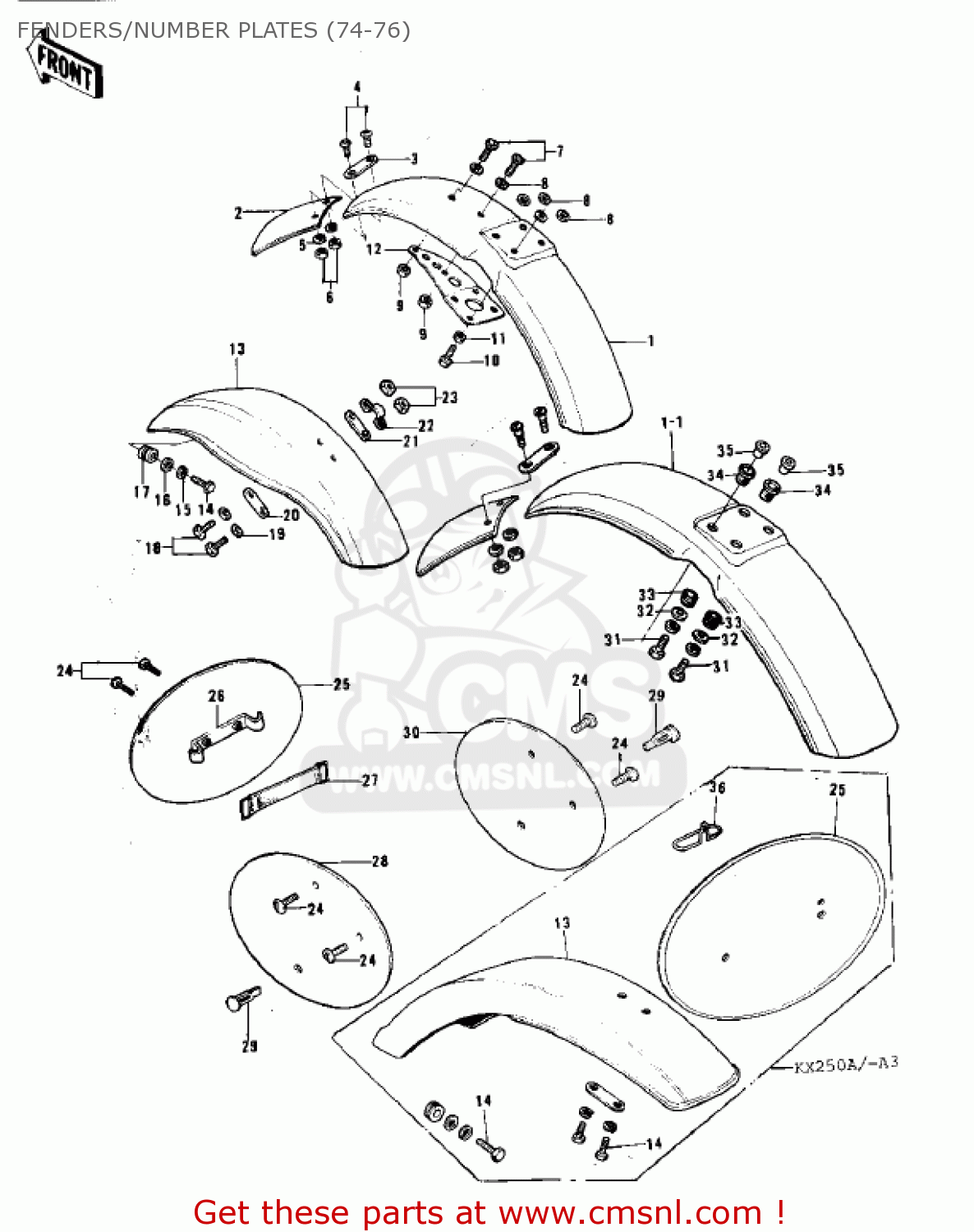

Fenders/number plates (74-76) diagram KX250-A 1975
FENDERS/NUMBER PLATES (74-76) KX250-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
35004096
ref: 1
FENDER,FRONT
€ 59.50
1-1
35004096
ref: 1-1
FENDER,FRONT
€ 59.50
1-1
3500409610
ref: 1-1
KX250-A3
FENDER,FRONT,BLACK
€ 79.00
2
35019005
ref: 2
FLAP,FRONT FENDER
€ 4.50
3
35020012
ref: 3
PLATE,FENDER FLAP
€ 0.50
4
92001134
ref: 4
BOLT,5X12
€ 3.00
5
461F0500
ref: 5
WASHER-SPRING,5MM
€ 0.50
6
311B0500
ref: 6
NUT-HEX
€ 0.50
7
220E0614
ref: 7
SCREW-PAN HEAD,6X14
€ 2.00
8
92022125
ref: 8
WASHER,6.5X20X1.6
€ 1.00
9
92019019
ref: 9
NUT,6MM
€ 4.00
10
112G0616
ref: 10
BOLT UPSET,6X16
€ 1.00
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
35013013
ref: 12
PLATE,FRONT FENDER
€ 3.50
13
35022104
ref: 13
FENDER,REAR
€ 126.00
13
3502213210
ref: 13
KX250A
FENDER,REAR,BLACK
€ 128.50
13
3502213210
ref: 13
KX250-A3
FENDER,REAR,BLACK
€ 128.50
14
112B0614
ref: 14
KX250/-A3
BOLT-UPSET 6X14
€ 2.50
14
112G0620
ref: 14
KX250A
BOLT 6X20
€ 1.00
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
92027122
ref: 16
COLLAR,L=4.7
€ 5.50
17
92075118
ref: 17
DAMPER RUBBER
€ 1.00
18
112G0618
ref: 18
BOLT-UPSET
€ 0.50
18
112B0622
ref: 18
KX250-A3
BOLT, 6X22
€ 2.50
19
411B0600
ref: 19
WASHER-PLAIN,6MM
€ 0.50
20
35041002
ref: 20
PLATE,REAR FENDER
€ 3.50
21
92075245
ref: 21
(2 REQ KX250-A3)
DAMPER RUBBER,FENDER
€ 2.00
22
35025027
ref: 22
BRACKET,REAR FENDER
€ 3.50
23
92019019
ref: 23
NUT,6MM
€ 4.00
24
920091286
ref: 24
SCREW,6X10
€ 2.50
25
58029026
ref: 25
PLATE,FRONT NUMBER
€ 25.00
25
58029031
ref: 25
KX250A/-A3
PLATE,FRONT NUMBER
€ 18.00
26
58030008
ref: 26
BRACKET,NUMBER PLATE
€ 13.50
27
92072006
ref: 27
BAND,L=142.1
€ 8.00
28
58029029
ref: 28
PLATE,L.H NUMBER
€ 15.00
29
92072069
ref: 29
BAND,SIDE COVER
€ 2.00
30
36077045
ref: 30
UNAVAILABLE IN PRICE BOOK
€ 0.00
31
112G0625
ref: 31
BOLT-UPSET,6X25
€ 4.00
32
92022228
ref: 32
WASHER-PLAIN,7MM
€ 2.50
33
92075121
ref: 33
DAMPER,FENDER
€ 2.50
34
92075103
ref: 34
DAMPER
€ 2.50
35
92027194
ref: 35
COLLAR
€ 3.50
36
92037158
ref: 36
KX250A/-A3
CLAMP,NUMBER PLATE
€ 4.00
