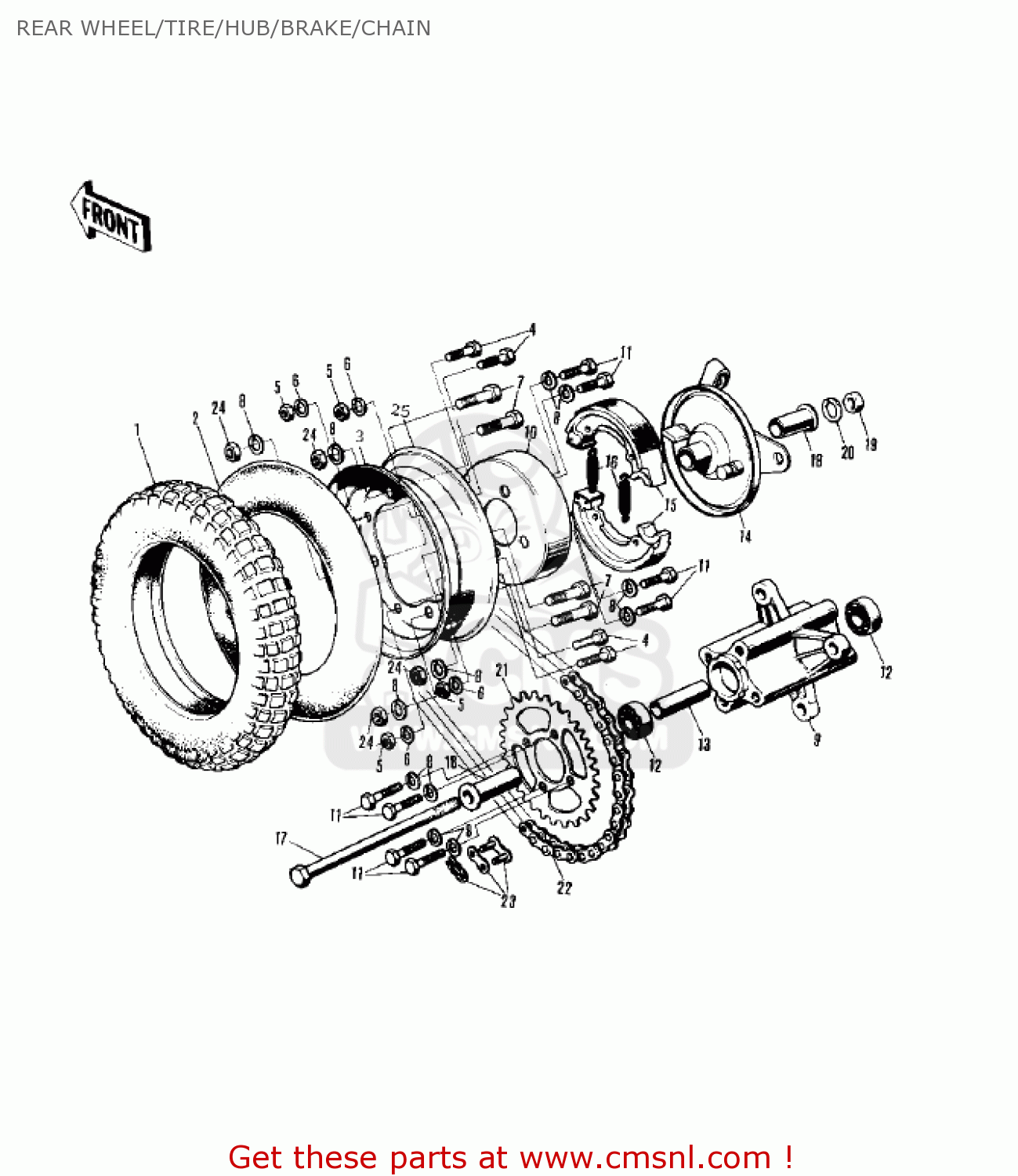

REAR WHEEL/TIRE/HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

41021052
ref: 1

NO PRODUCT DESCRIPTION

€ 0.00

2

41022037
ref: 2

TUBE,3.50-8

€ 21.00

3

41025081
ref: 3
WITH VALVE HOLE

RIM,2.50-8

€ 27.00

4

113G1016A
ref: 4

BOLT,HEX HEAD.10X16

€ 2.00

5

314B1000
ref: 5

NUT,10MM

€ 0.50

6

461F1000
ref: 6

WASHER-SPRING,10MM

€ 0.50

7

113G1025
ref: 7

BOLT-SMALL-FINE,10X25

€ 2.50

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

?

42005025
ref: ?
Includes items 8 - 1

DRUM ASSY-REAR BRAKE

€ 137.50

10

41054003
ref: 10

DRUM-BRAKE

€ 15.00

11

92001017
ref: 11

BOLT,HEX HEAD,10X28

€ 3.00

12

601B6201Z
ref: 12

BEARING-BALL,#6201ZC3

€ 11.50

13

42010020
ref: 13

SPACER-BEARING

€ 5.00

?

42006056
ref: ?
Includes items 14 -

PANEL ASSY,REAR BRAKE

€ 34.50

?

410351010
ref: ?
Includes items 14 -

PANEL ASSY,REAR BRAKE

€ 85.00

?

410481010
ref: ?
Includes items 15 an

SHOE,BRAKE (MCA)

€ 20.00

?

410481010
ref: ?
Includes items 15 an

SHOE,BRAKE (MCA)

€ 20.00

16

41049009
ref: 16

SPRING-BRAKE SHOE

€ 3.00

17

42031028
ref: 17

AXLE-REAR

€ 22.50

18

42032029
ref: 18

COLLAR-REAR AXLE

€ 15.00

19

314B1200
ref: 19

NUT-HEX-FINE

€ 1.00

20

461F1200
ref: 20

WASHER-SPRING,12MM

€ 0.50

21

42041086
ref: 21
33 TEETH

REAR SPROCKET 33T

€ 41.00

22

920571006
ref: 22

CHAIN ASSY,DRIVE,88RE

€ 15.50

22

920571006
ref: 22
KV75-A7

CHAIN ASSY,DRIVE,88RE

€ 15.50

23

92058003
ref: 23

JOINT-DRIVE CHAIN

€ 1.50

24

314B1000
ref: 24

NUT,10MM

€ 0.50

25

41025082
ref: 25

RIM,2.50-8

€ 27.00

REAR WHEEL/TIRE/HUB/BRAKE/CHAIN
