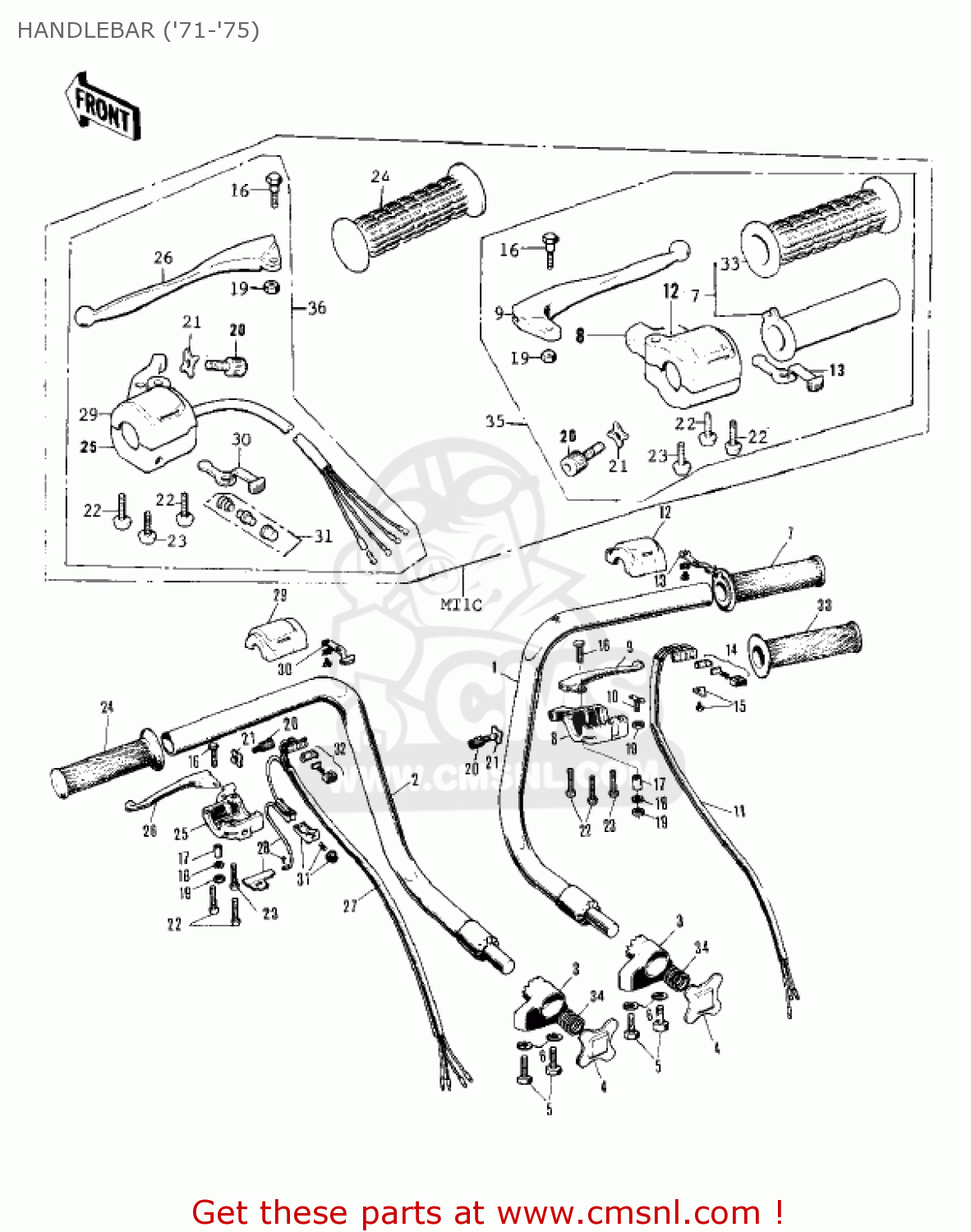

HANDLEBAR ('71-'75)

ref

part #

description

quantity

1

46007010
ref: 1

HANDLEBAR,R.H

€ 49.00

2

46007011
ref: 2

HANDLEBAR,L.H

€ 44.50

3

46012009
ref: 3

HOLDER-HANDLEBAR

€ 16.50

4

46129001
ref: 4

KNOB-HANDLEBAR HOLDER

€ 6.50

5

113B1018
ref: 5

BOLT-HEX HEAD,10X18

€ 2.50

6

461F1000
ref: 6

WASHER-SPRING,10MM

€ 0.50

?

460171071
ref: ?
Includes items 7 - 2

GRIP-ASSY-RIGHT

€ 77.00

7

46019005
ref: 7

GRIP-ASSY,THROTTLE

€ 36.00

7

46019024
ref: 7
MT1C

GRIP-ASSY,THROTTLE

€ 26.50

8

46022012
ref: 8

CASE-R.H SWITCH LOWER

€ 22.00

8

46022017
ref: 8
MT1C

CASE,LOWER,RH

€ 70.50

9

46058004
ref: 9

LEVER-GRIP,FRONT BRAK

€ 24.00

10

46024002
ref: 10

SPRING-THROTTLE GRIP

€ 0.50

11

46032010
ref: 11

WIRING HARNESS-R.H SW

€ 2.50

12

460171071
ref: 12

GRIP-ASSY-RIGHT

€ 77.00

12

46040015
ref: 12
MT1C

CASE,UPPER,RH

€ 28.50

13

46043002
ref: 13

KNOB ASSY-R.H SWITCH

€ 2.50

14

46045004
ref: 14

SLIDE BLOCK AY-R.H SW

€ 4.50

15

46085012
ref: 15

HOLDER-WIRING HARNESS

€ 1.50

16

92007020
ref: 16

BOLT-HEX HEAD,5X20

€ 2.50

16

92007046
ref: 16
MT1C

BOLT,HEX HEAD,5X22

€ 4.50

17

46059011
ref: 17

COLLAR,LEVER

€ 3.50

18

464H0500
ref: 18

WASHER-LOCK,5MM

€ 0.50

19

312B0500A
ref: 19

NUT,5MM

€ 0.50

19

92019014
ref: 19
MT1C

NUT-LOCK,5M/M

€ 2.50

20

46055010
ref: 20

SCREW,CABLE ADJUST

€ 21.00

21

46056001
ref: 21

NUT-ADJUST SCREW LOCK

€ 2.50

22

220B0520A
ref: 22

SCREW-PAN HEAD,5X20

€ 0.50

23

220B0518A
ref: 23

SCREW-PAN HEAD,5X18

€ 2.00

15-32

46074017
ref: 15-32

GRIP ASSY-L.H

€ 43.00

24

46075007
ref: 24

GRIP,LH

€ 15.00

24

46075020
ref: 24
MT1C

GRIP,LH

€ 12.50

25

46077008
ref: 25

CASE-L.H SWITCH LOWER

€ 20.00

25

46077026
ref: 25
MT1C

CASE,LOWER,LH

€ 74.50

26

46092015
ref: 26

LEVER-GRIP,CLUTCH

€ 11.50

26

46092015
ref: 26
MT1C

LEVER-GRIP,CLUTCH

€ 11.50

27

46082009
ref: 27

WIRING HARNESS-L.H SW

€ 10.50

28

46085008
ref: 28

HOLDER-L.H SWITCH

€ 9.00

29

46086007
ref: 29

CASE-L.H SWITCH UPPER

€ 12.00

29

46086025
ref: 29

CASE,UPPER,LH

€ 46.50

30

46088001
ref: 30

KNOB ASSY-L.H SWITCH

€ 5.50

31

46078003
ref: 31

SWITCH ASSY LH BUTTON

€ 5.50

32

46089002
ref: 32

SLIDE BLOCK AY-L.H SW

€ 7.00

33

46061009
ref: 33

RUBBER-R.H GRIP

€ 4.00

33

46061015
ref: 33
MT1C

GRIP,RUBBER,RH

€ 13.00

34

92081078
ref: 34

SPRING

€ 1.50

34

92081090
ref: 34
MT1C

SPRING

€ 3.00

35

46017077
ref: 35
MT1C

GRIP-ASSY-RIGHT

€ 87.50

36

46074092
ref: 36
MT1C

GRIP-ASSY-LEFT

€ 96.00

all assemblies
