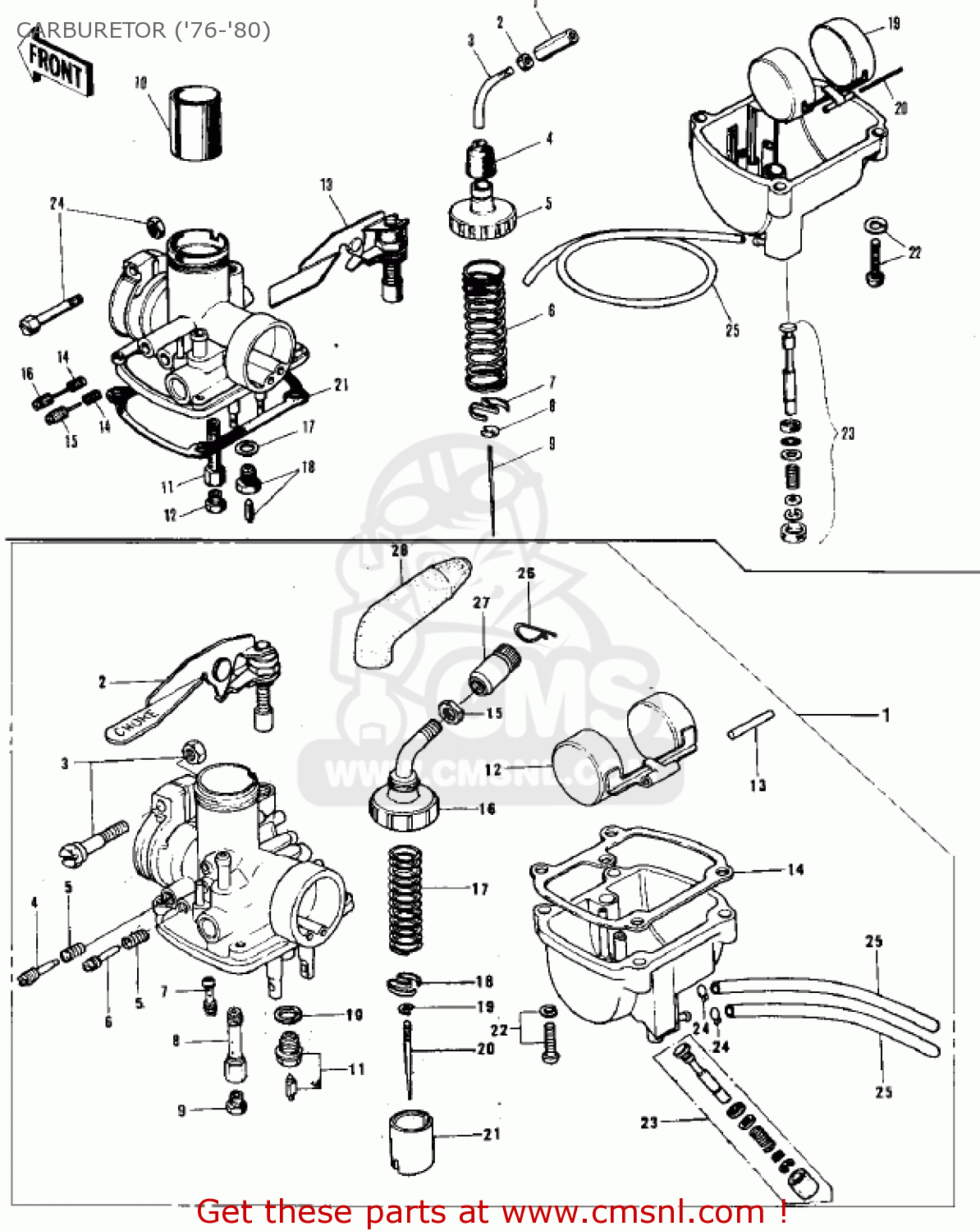

CARBURETOR ('76-'80)

ref

part #

description

quantity

1-25

16001129
ref: 1-25
VM15SC

CARBURETOR ASSY

€ 97.50

1

16002004
ref: 1

CABLE ADJUSTER

€ 8.00

2

16003004
ref: 2

NUT-CABLE ADJUST LOCK

€ 4.50

3

16077003
ref: 3

GUIDE

€ 0.00

4

16037001
ref: 4

CAP-RUBBER

€ 6.00

5

16005001
ref: 5

TOP-MIXING CHAMBER

€ 4.50

6

16006001
ref: 6

SPRING,THROTTLE VALVE

€ 7.50

7

16007001
ref: 7

SPRING SEAT,THRTL VLV

€ 6.50

8

16008010
ref: 8

CLAMP,E-TYPE

€ 5.00

9

16009042
ref: 9
3G9

JET NEEDLE 3G09

€ 20.50

10

16025038
ref: 10
C.A 2.0

VALVE-THROTTLE CA2.0

€ 67.00

11

16017051
ref: 11
E-O

NEEDLE JET E-O

€ 24.00

12

92063110
ref: 12

JET,MAIN,#70M

€ 25.00

13

16016009
ref: 13

PLUNGER-STARTER

€ 35.50

14

16022007
ref: 14

SPRING-THR STOP SCREW

€ 5.50

15

16021001
ref: 15

SCREW,THROTTLE STOP

€ 9.00

16

16014002
ref: 16

SCREW-PILOT AIR

€ 11.00

17

16029002
ref: 17

WASHER-VALVE SEAT

€ 2.50

18

16030002
ref: 18

FLOAT VALVE ASSY

€ 22.00

19

16031014
ref: 19

FLOAT

€ 33.00

20

16032003
ref: 20

FLOAT PIN

€ 4.00

21

16019011
ref: 21

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

22

16033012
ref: 22

SCREW-FLOAT CHAMBER

€ 1.00

24

16010005
ref: 24

SCREW-CLAMP

€ 2.00

1

160011033
ref: 1
KV75-A7

CARBURETOR ASSEMBLY

€ 89.50

2

16016009
ref: 2

PLUNGER-STARTER

€ 35.50

3

16010005
ref: 3

SCREW-CLAMP

€ 2.00

4

16014002
ref: 4

SCREW-PILOT AIR

€ 11.00

5

16022007
ref: 5

SPRING-THR STOP SCREW

€ 5.50

6

16021001
ref: 6

SCREW,THROTTLE STOP

€ 9.00

7

920641018
ref: 7

JET-PILOT,#A15

€ 13.00

10

16029002
ref: 10

WASHER-VALVE SEAT

€ 2.50

11

16030002
ref: 11

FLOAT VALVE ASSY

€ 22.00

12

16031014
ref: 12

FLOAT

€ 33.00

13

16032003
ref: 13

FLOAT PIN

€ 4.00

14

16019011
ref: 14

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

15

16003006
ref: 15

NUT-CABLE ADJUST LOCK

€ 4.50

16

160051003
ref: 16

TOP,MIXING CHAMBER

€ 29.00

17

16006001
ref: 17

SPRING,THROTTLE VALVE

€ 7.50

18

16007001
ref: 18

SPRING SEAT,THRTL VLV

€ 6.50

19

920371117
ref: 19

CLAMP,JET NEEDLE

€ 4.50

19

920371043
ref: 19
KV75-A8

CLAMP,TUBE

€ 1.50

19

920371117
ref: 19
KV75-A9

CLAMP,JET NEEDLE

€ 4.50

20

16009042
ref: 20

JET NEEDLE 3G09

€ 20.50

21

160251004
ref: 21

VALVE,THROTTLE,CA2.0

€ 58.00

22

16033012
ref: 22

SCREW-FLOAT CHAMBER

€ 1.00

23

16064001
ref: 23

EJECTOR ASSY-FUEL

€ 39.00

24

920371043
ref: 24

CLAMP,TUBE

€ 1.50

25

920591015
ref: 25

TUBE,OVERFLOW,3X5X200

€ 4.00

26

92036018
ref: 26

CIRCLIP

€ 2.50

27

16002007
ref: 27

ADJUSTER-CABLE,THROTT

€ 7.50

28

490061010
ref: 28

BOOTS,CABLE ADJUSTER

€ 3.50

all assemblies
