AIR CLEANER/MUFFLER ('71-'75)
KV75A9 1980

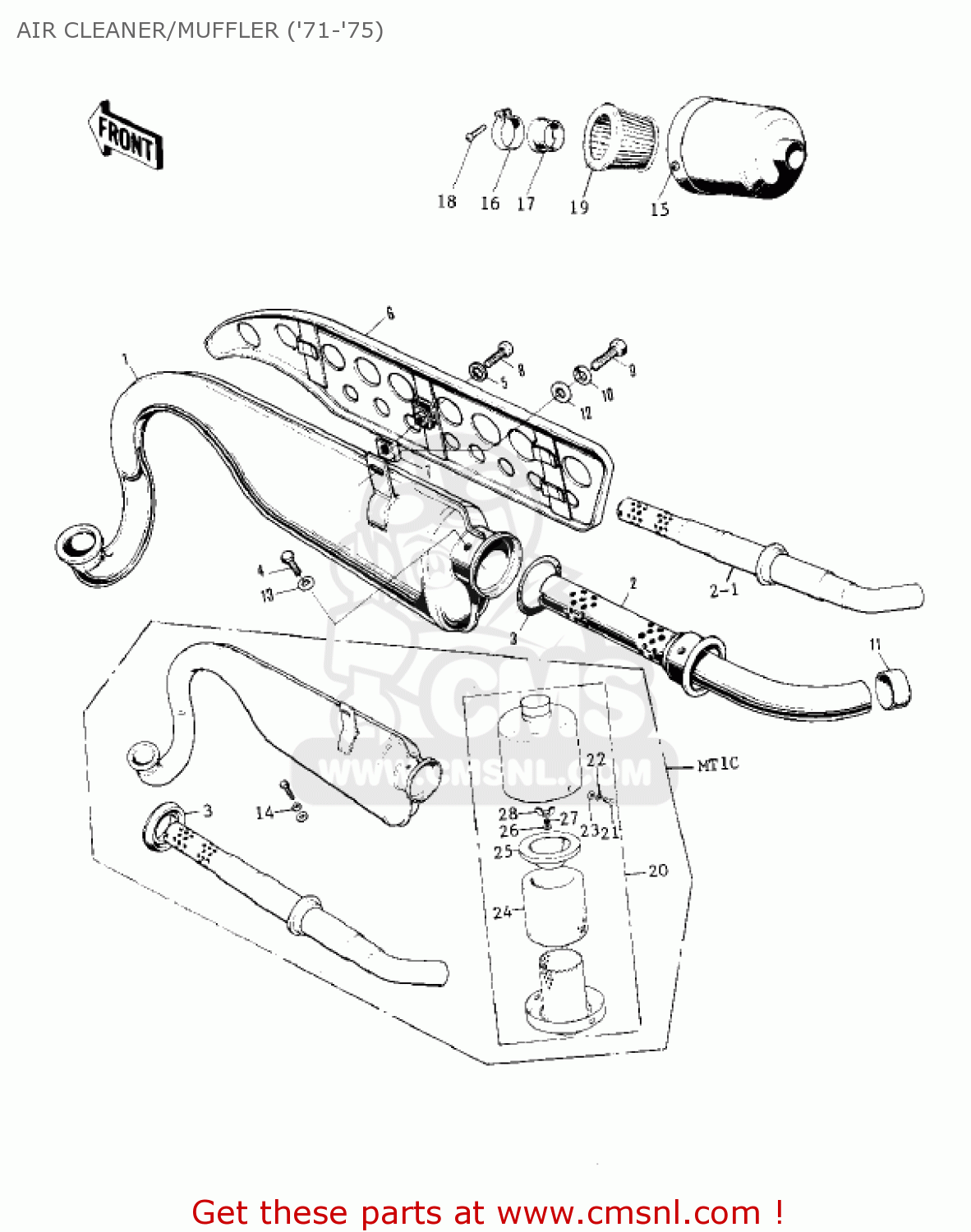

Air cleaner/muffler ('71-'75) diagram KV75A9 1980
AIR CLEANER/MUFFLER ('71-'75) KV75A9 1980
×
prices are in EUR
ref
part #
description
quantity
?
18001034
ref: ?
Includes items 4 and
MUFFLER ASSY
€ 68.50
?
18001079
ref: ?
Includes items 4 and
MUFFLER ASSY
€ 122.00
2
18033046
ref: 2
MT1
BAFFLE TUBE
€ 156.00
2-1
18033060
ref: 2-1
MT1A/B/C
BAFFLE TUBE
€ 20.00
3
670B3036
ref: 3
O RING,36MM
€ 0.50
3
92056004
ref: 3
MT1C
OIL SEAL
€ 12.00
4
112G0610
ref: 4
MT1
BOLT,6X10
€ 0.50
4
112B0608
ref: 4
MT1A/B/C
BOLT-HEX,HEAD,6X8
€ 0.50
5
464H0600
ref: 5
MT1
WASHER-LOCK,6MM
€ 0.50
5
463H0600
ref: 5
MT1A/B/C
WASHER-LOCK,6MM
€ 0.50
6
1805703621
ref: 6
MT1/A
COVER-MUFFLER,BLACK
€ 19.50
6
18057048
ref: 6
MT1B/C
MUFFLER COVER
€ 74.50
7
18065009
ref: 7
INSULATOR,HEAT
€ 3.00
8
220E0612
ref: 8
SCREW-PAN HEAD,6X12
€ 3.00
9
115G0820
ref: 9
BOLT,8X20
€ 2.00
10
461F0800
ref: 10
WASHER-SPRING,8MM
€ 0.50
11
92073012
ref: 11
MT1
CAP,RUBBER
€ 3.00
11
92073021
ref: 11
MT1A/B/C
CAP-MUFFLER RUBBER
€ 1.00
12
411B0800
ref: 12
WASHER-PLAIN,8MM
€ 0.50
13
92022183
ref: 13
WASHER,6.2X11X1.5
€ 2.50
14
410B0600
ref: 14
MT1C
WASHER-PLAIN-SMALL,6M
€ 0.50
15
11010081
ref: 15
MT1/A/B
AIR CLEANER ASSY
€ 31.00
16
18045002
ref: 16
MT1/A/B
HOLDER,CONNECT
€ 2.00
17
920921001
ref: 17
MT1/A/B
BUSHING,RUBBER
€ 1.50
18
220B0620
ref: 18
MT1/A/B
SCREW-PAN HEAD,6X20
€ 2.50
19
11010081
ref: 19
MT1/A/B
AIR CLEANER ASSY
€ 31.00
20
11010081
ref: 20
MT1C
AIR CLEANER ASSY
€ 31.00
21
220B0410
ref: 21
MT1C
SCREW-PAN-CROS
€ 2.00
22
461F0400
ref: 22
MT1C
WASHER-SPRING,4MM
€ 0.50
23
410B0400
ref: 23
MT1C
WASHER-PLAIN-SMALL,4M
€ 0.50
24
11013048
ref: 24
MT1C
AIR CLEANER ELEMENT
€ 22.00
25
11013050
ref: 25
MT1C
AIR CLEANER ELEMENT,TOP
€ 18.50
26
410B0400
ref: 26
MT1C
WASHER-PLAIN-SMALL,4M
€ 0.50
27
461F0400
ref: 27
MT1C
WASHER-SPRING,4MM
€ 0.50
28
92015074
ref: 28
MT1C
NUT,WING,4MM
€ 4.50
