TRANSMISSION/CHANGE DRUM
KT250-A 1975 USA / MPH

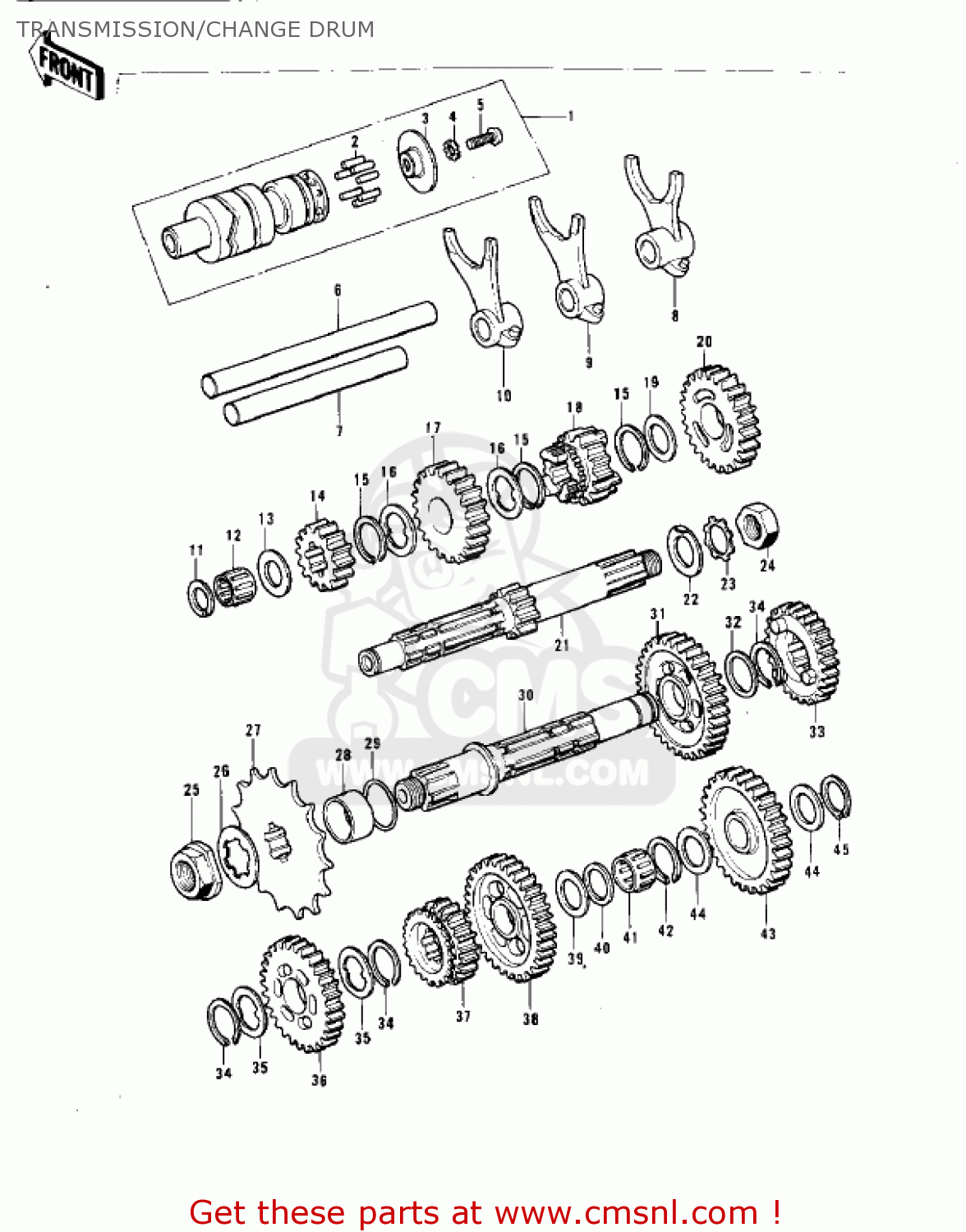

Transmission/change drum diagram KT250-A 1975 USA / MPH
TRANSMISSION/CHANGE DRUM KT250-A 1975 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
13239016
ref: 1
DRUM ASSY,GEAR CHANGE
€ 55.50
2
92042029
ref: 2
PIN,GEAR CHANGE DRUM
€ 3.50
3
13142014
ref: 3
HOLDER,CHANGE DRUM PI
€ 14.00
4
464H0600
ref: 4
WASHER-LOCK,6MM
€ 0.50
5
220B0614
ref: 5
SCREW-PAN HEAD,6X14
€ 2.00
6
490471003
ref: 6
ROD,SHIFT 93.7MM
€ 18.00
7
490471002
ref: 7
ROD,SHIFT 71.7MM
€ 32.00
8
13140061
ref: 8
FORK,SELECTOR,LOW
€ 44.50
9
13140062
ref: 9
FORK,SELECTOR,2ND&3RD
€ 57.00
10
13140063
ref: 10
FORK,SELECTOR,4TH&TOP
€ 59.00
11
92033030
ref: 11
CIRCLIP,DRIVE SHAFT
€ 6.50
12
92046038
ref: 12
KT152016
BEARING,2KTV119
€ 10.00
13
92022279
ref: 13
1.0T
WASHER,15.3X25X1
€ 7.00
14
13130040
ref: 14
15T
2ND GEAR,DRIVE 15T
€ 30.50
15
92033029
ref: 15
CIRCLIP,18MM
€ 6.50
16
92024059
ref: 16
O.D=25#
WASHER,LOCK
€ 3.00
17
13134022
ref: 17
23T
4TH GEAR,DRIVE 23T
€ 53.50
18
13132042
ref: 18
18T
3RD GEAR,DRIVE,18T
€ 48.00
19
92022252
ref: 19
WASHER
€ 4.00
20
13136055
ref: 20
28T
TOP GEAR,DRIVE,28T
€ 34.50
21
13127050
ref: 21
12T
SHAFT,DRIVE 12T
€ 58.00
22
920221277
ref: 22
WASHER,16.8X32X1.6
€ 3.50
23
464H1600
ref: 23
WASHER-TOOTHED,16MM
€ 3.00
24
92015072
ref: 24
NUT,LOCK,16MM
€ 4.50
25
92015075
ref: 25
NUT,18M/M
€ 12.00
26
92024065
ref: 26
WASHER,LOCK
€ 3.50
27
13144064
ref: 27
STD
ENGINE SPROCKET,15T
€ 18.00
27
13144059
ref: 27
OPT
ENGINE SPROCKET
€ 23.00
27
13144067
ref: 27
OPT
ENGINE SPROCKET,13T
€ 25.50
28
92027236
ref: 28
COLLAR,ENGINE SPROCKT
€ 4.50
29
92055035
ref: 29
O RING
€ 3.00
30
13128043
ref: 30
SHAFT,OUTPUT
€ 95.50
31
13131047
ref: 31
37T
2ND GEAR,OUTPUT 37T
€ 23.50
32
92022198
ref: 32
I.D=22.3#
WASHER-PLAIN
€ 3.50
33
13135028
ref: 33
28T
4TH GEAR,OUTPUT 28T
€ 53.50
34
92033025
ref: 34
CIRCLIP,25MM
€ 3.00
35
92024039
ref: 35
WASHER-LOCK
€ 4.00
36
13133039
ref: 36
33T
3RD GEAR,OUTPUT 33T
€ 34.00
37
13137033
ref: 37
22T
TOP GEAR,OUTPUT 22T
€ 47.00
38
13129055
ref: 38
39T
LOW GEAR,OUTPUT 39T
€ 33.50
39
92022280
ref: 39
WASHER,PLAIN
€ 3.00
40
92022281
ref: 40
WASHER,PLAIN
€ 4.00
41
920461184
ref: 41
KT172314
BEARING-NEEDLE
€ 20.00
42
92033032
ref: 42
CIRCLIP
€ 3.00
43
13073012
ref: 43
28T
IDLE GEAR
€ 49.00
44
92022197
ref: 44
WASHER-THRUST
€ 1.00
45
480J1600
ref: 45
CIRCLIP-TYPE-C,16MM
€ 2.50
