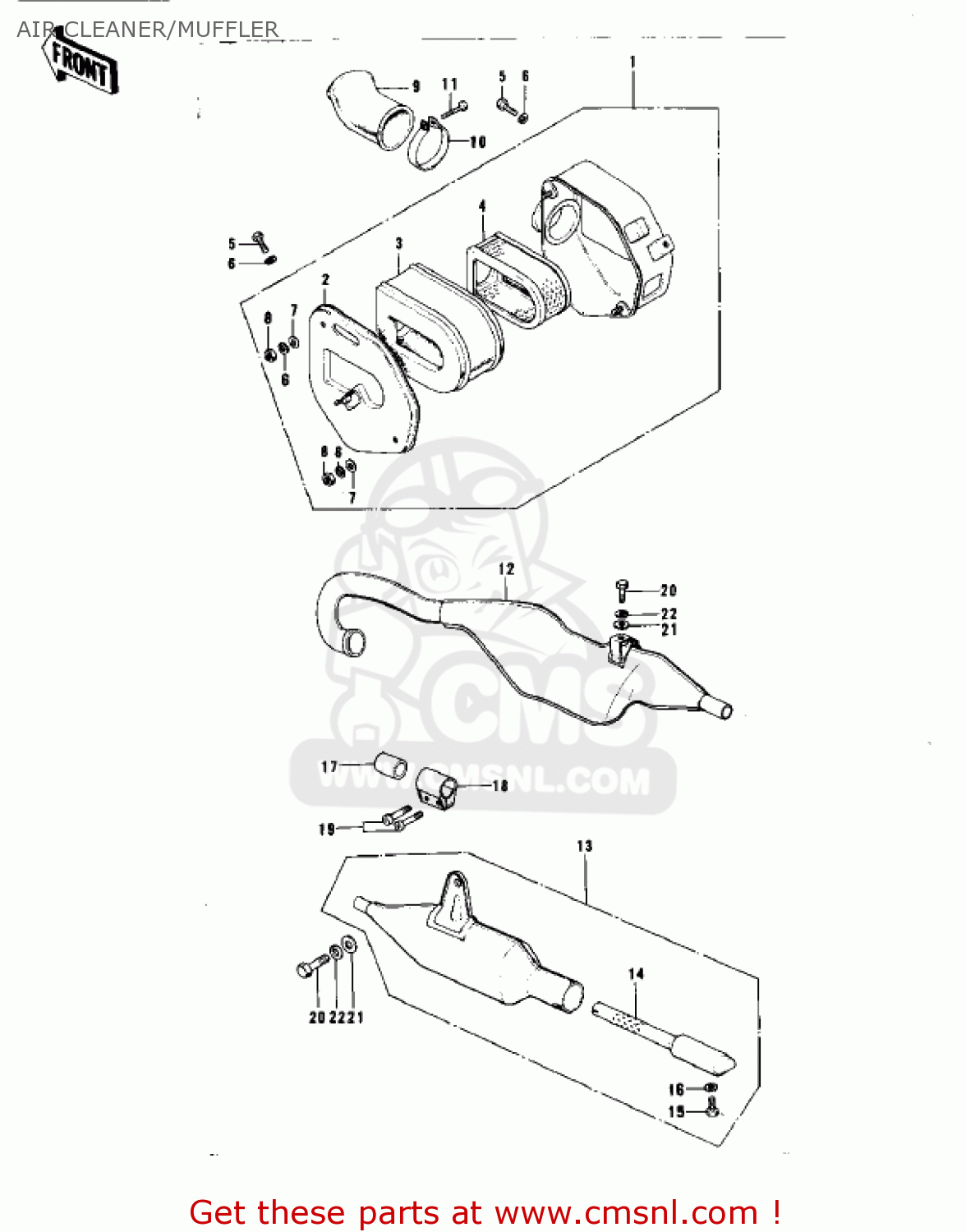

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

11010092
ref: 1

AIR CLEANER ASSY

€ 81.00

2

11012055
ref: 2

CAP,AIR CLEANER BODY

€ 8.50

3

11013049
ref: 3

ELEMENT,AIR CLEANER

€ 27.00

4

11014013
ref: 4

WIRE NET,AIR CLEANER

€ 23.00

5

112G0612
ref: 5

BOLT-UPSET

€ 2.50

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

311B0600
ref: 8

NUT,6MM

€ 0.50

9

11026013
ref: 9

CONNECTOR,AIR CLEANER

€ 4.00

10

92037061
ref: 10

CLAMP

€ 10.50

11

220B0535
ref: 11

SCREW-PAN-CROS

€ 2.00

12

1800115221
ref: 12

MUFFLER ASSY,F.BLACK

€ 204.00

13

1807800121
ref: 13

SPARK ARRESTOR ASSY

€ 108.50

14

18033089
ref: 14

BAFFLE TUBE

€ 77.50

15

112G0612
ref: 15

BOLT-UPSET

€ 2.50

15

112G0612
ref: 15

BOLT-UPSET

€ 2.50

16

463H0600
ref: 16

WASHER-LOCK,6MM

€ 0.50

17

18043014
ref: 17

CONNECTOR,MUFFLER

€ 19.50

18

18044015
ref: 18

HOLDER,MUFFLER

€ 7.50

19

220B0616
ref: 19

SCREW-PAN HEAD,6X16

€ 2.50

20

110B1018
ref: 20

BOLT,10X18

€ 2.50

20

113G1018
ref: 20
KT250A-2

BOLT,HEX HEAD,10X18

€ 2.50

21

410B1000
ref: 21

WASHER-PLAIN-SMALL,10

€ 0.50

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

all assemblies
