CHASSIS ELECTRICAL EQUIPMENT
KT250-A 1975 USA / MPH

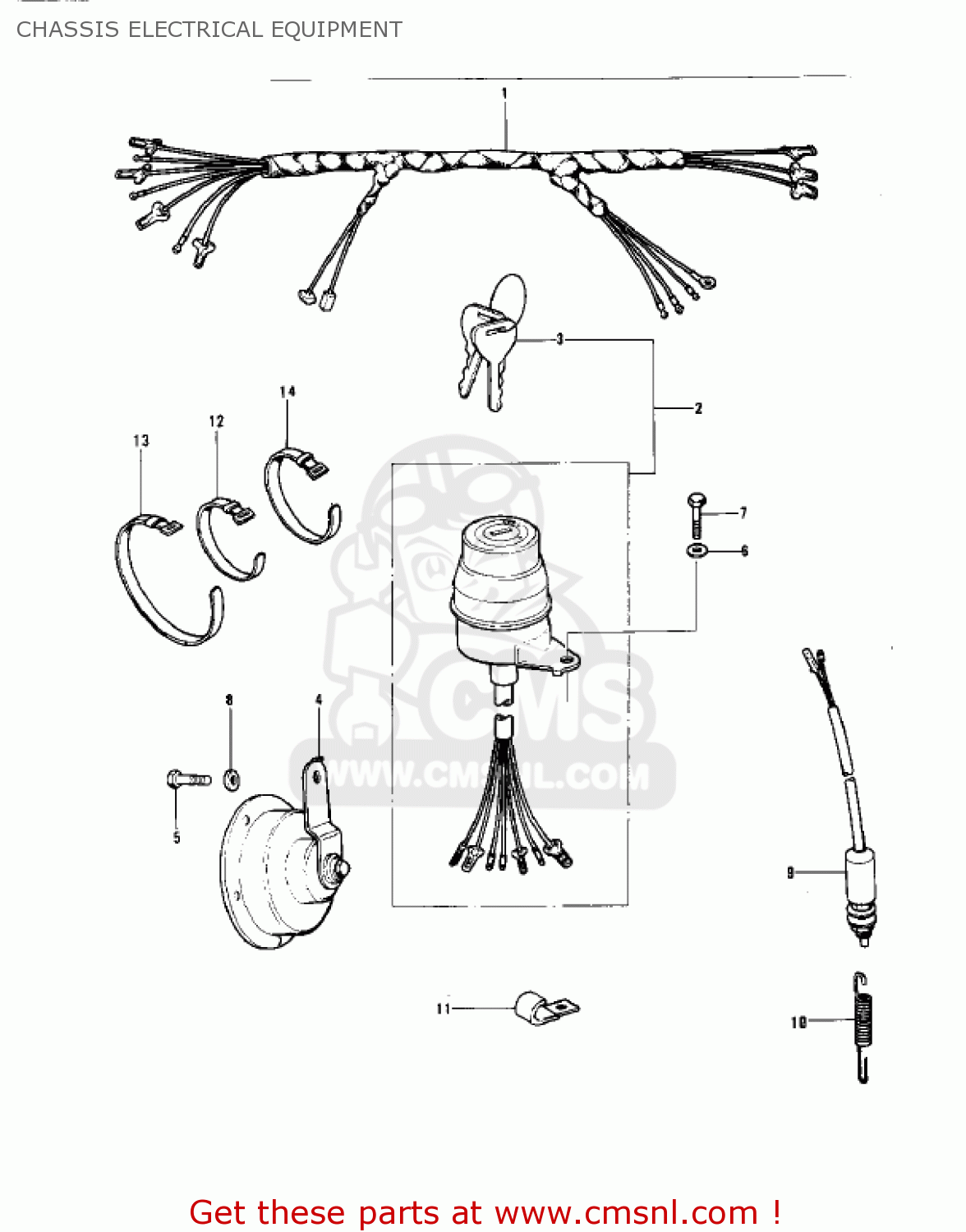

Chassis electrical equipment diagram KT250-A 1975 USA / MPH
CHASSIS ELECTRICAL EQUIPMENT KT250-A 1975 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
26001127
ref: 1
WIRING HARNESS,MAIN
€ 47.00
2
27005079
ref: 2
SWITCH ASSY,IGNITION
€ 80.50
3
2700805011
ref: 3
KEY SET,#311
€ 5.50
3
2700805012
ref: 3
KEY SET,#312
€ 5.50
3
2700805013
ref: 3
KEY SET,#313
€ 5.50
3
2700805014
ref: 3
KEY SET,#314
€ 5.50
3
2700805015
ref: 3
KEY SET,#315
€ 5.50
3
270081030
ref: 3
KEY-LOCK,BLANK
€ 12.00
3
270081031
ref: 3
KEY-LOCK,BLANK
€ 12.00
3
270081032
ref: 3
KEY-LOCK,BLANK
€ 13.50
3
270081033
ref: 3
KEY-LOCK,BLANK
€ 13.00
4
27003058
ref: 4
HORN
€ 28.00
5
112B0614
ref: 5
BOLT-UPSET 6X14
€ 2.50
5
112B0614
ref: 5
BOLT-UPSET 6X14
€ 2.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
112G0612
ref: 7
BOLT-UPSET
€ 2.50
8
461F0600
ref: 8
WASHER-SPRING,6MM
€ 0.50
9
27010015
ref: 9
SWITCH,BRAKE LAMP
€ 23.00
10
27011013
ref: 10
SPRING-BRAKE LAMP SW
€ 9.50
11
92037113
ref: 11
CLAMP
€ 4.00
12
92072030
ref: 12
L=123M/M
BAND,SHORT
€ 3.00
13
92072032
ref: 13
L=218M/M
BAND,LONG
€ 3.00
14
92072056
ref: 14
L=186M/M
BAND,RUBBER
€ 3.00
