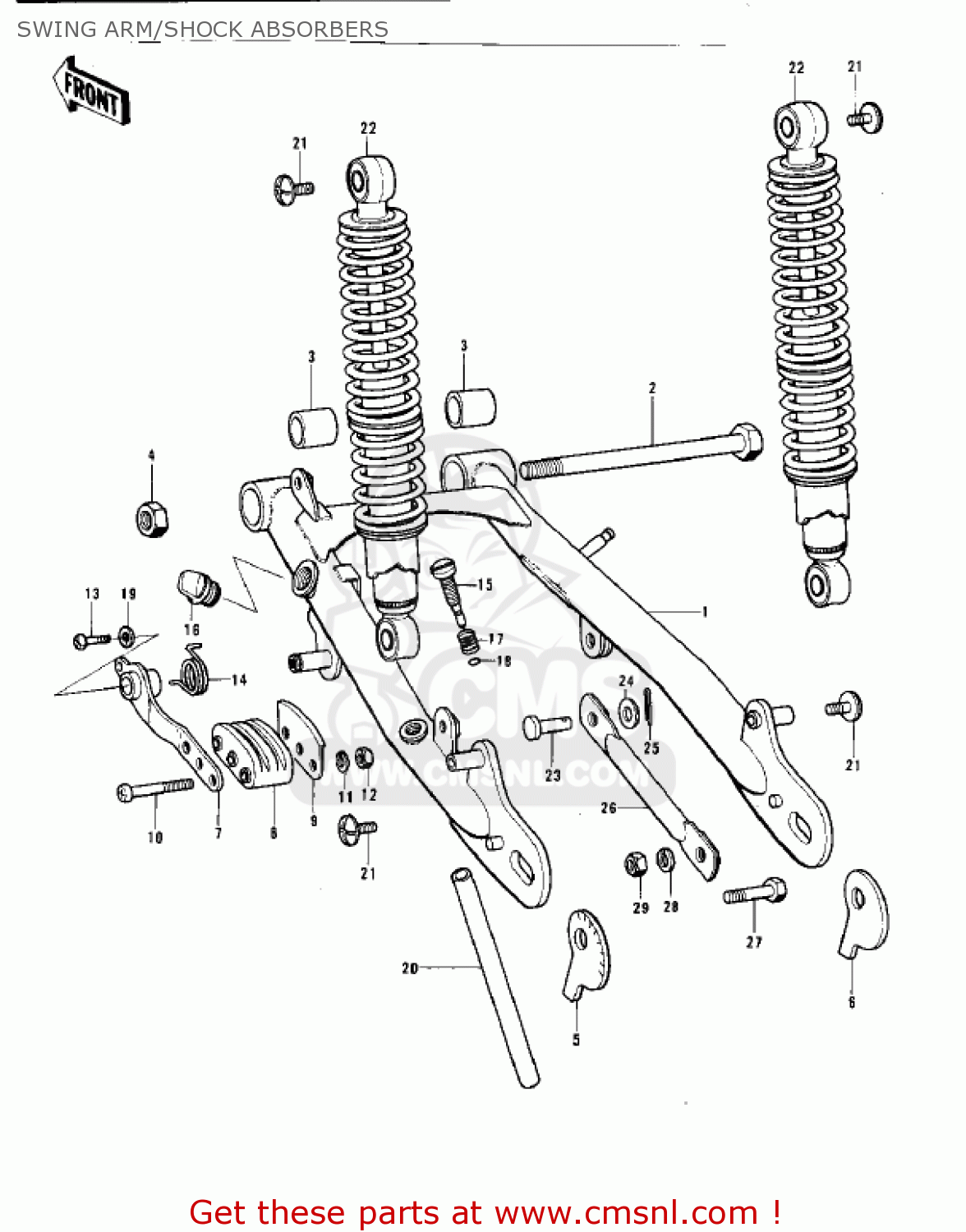

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

33001077
ref: 1

SWINGING ARM

€ 194.00

2

33032042
ref: 2

SHAFT,SWING ARM PIVO

€ 47.00

3

92092005
ref: 3

BUSH-SWING ARM SHAFT

€ 9.50

4

92019009
ref: 4

NUT,LOCK,12MM

€ 5.00

5

33040064
ref: 5

ADJUSTER,L.H CHAIN

€ 4.50

6

33040065
ref: 6

ADJUSTER,R.H CHAIN

€ 4.50

7

12049002
ref: 7

TENSIONER,CHAIN

€ 28.50

8

12053012
ref: 8

SLIPPER,CHAIN TENSION

€ 22.50

9

12051002
ref: 9

HOLDER,CHAIN TENSIONE

€ 7.00

10

220B0640
ref: 10

SCREW-PAN HEAD,6X40

€ 2.00

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

311B0600
ref: 12

NUT,6MM

€ 0.50

13

220B0612
ref: 13

SCREW-PAN HEAD,6X12

€ 1.00

14

58024003
ref: 14

SPRING,CHAIN TENSION

€ 16.00

15

92003176
ref: 15

BOLT,CHAIN OILER

€ 14.50

16

16115026
ref: 16

PLUG,OIL FILLER

€ 13.50

17

55033002
ref: 17

SPRING,ADJUST BOLT

€ 3.00

18

670B1503
ref: 18

O RING,3MM

€ 2.50

19

92022125
ref: 19

WASHER,6.5X20X1.6

€ 1.00

20

92059116
ref: 20
L=40M/M

TUBE,OILER

€ 0.50

21

92003173
ref: 21

BOLT,6X12

€ 10.00

22

45014103
ref: 22

SHOCKABSORBER,REAR

€ 151.00

23

92043105
ref: 23

PIN,TORQUE LINK

€ 6.50

24

92022239
ref: 24

WASHER-PLAIN

€ 2.50

25

550D2020
ref: 25

PIN-COTTER,2.0X20

€ 0.50

26

43007043
ref: 26

TORQUE LINK,RR BRAKE

€ 6.00

27

92003003
ref: 27

BOLT-HEX HEAD,10X32

€ 4.00

28

461F1000
ref: 28

WASHER-SPRING,10MM

€ 0.50

29

314B1000
ref: 29

NUT,10MM

€ 0.50
