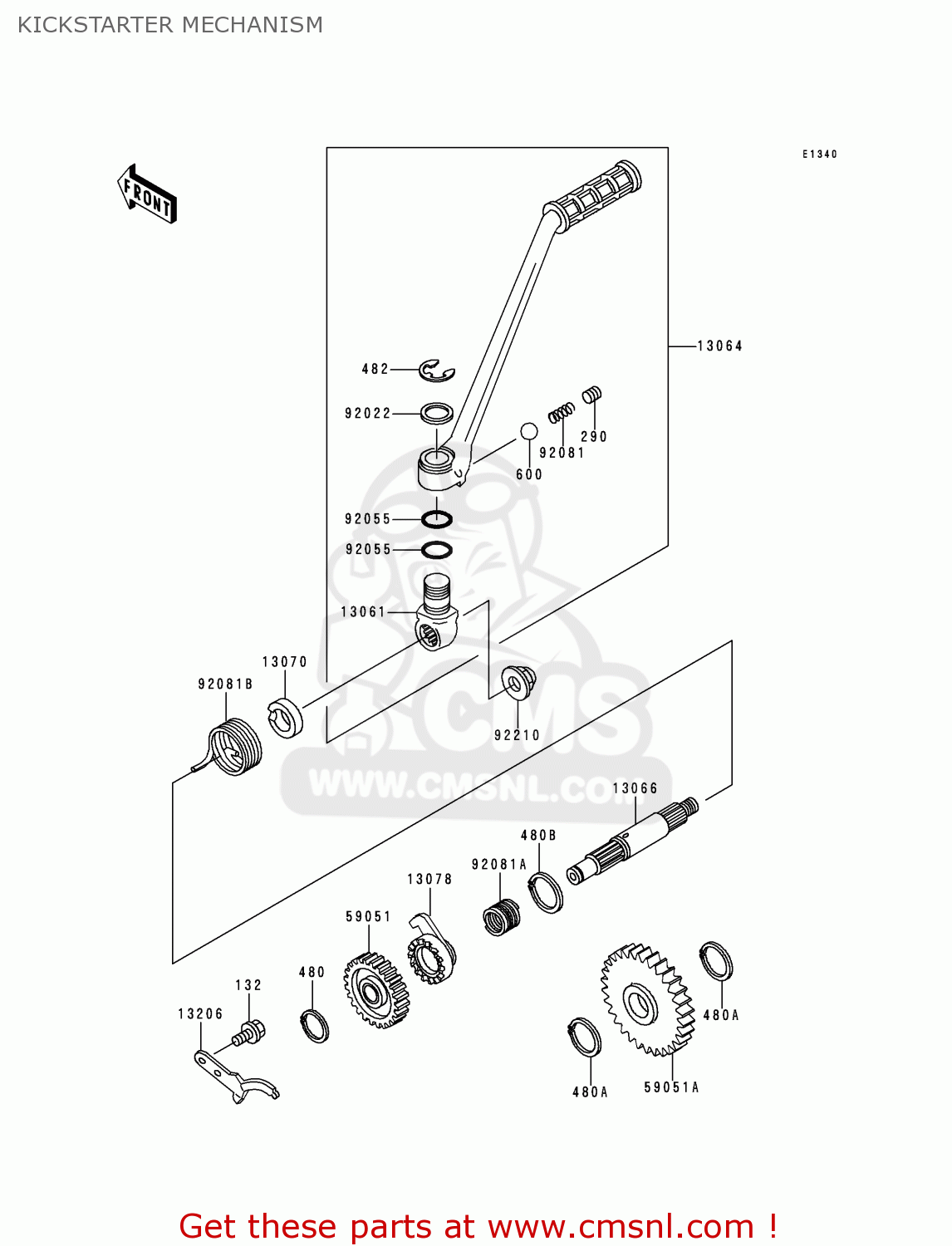

KICKSTARTER MECHANISM

ref

part #

description

quantity

132

132G0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

290

290Q0808
ref: 290

SCREW,8X8

€ 2.50

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

480A

480J1500
ref: 480A

CIRCLIP-TYPE-C,15MM

€ 1.00

480B

480J1600
ref: 480B

CIRCLIP-TYPE-C,16MM

€ 2.50

482

482J0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

13061

130611047
ref: 13061

BOSS,KICK PEDAL

€ 47.50

13064

130641126
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 136.50

13066

130661066
ref: 13066

SHAFT-KICK

€ 91.00

13070

130701034
ref: 13070

GUIDE,KICK SPRING

€ 6.00

13078

130781004
ref: 13078

RACHET

€ 44.00

13206

132061057
ref: 13206

GUIDE-KICK

€ 8.00

59051

590511164
ref: 59051

GEAR-SPUR,KICKSTARTER

€ 61.50

59051A

590511236
ref: 59051A

GEAR,KICKSTARTER,35T

€ 74.00

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92055

92055061
ref: 92055

RING-O,10X1.5

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

920811434
ref: 92081B

SPRING,KICK

€ 11.00

92210

922101081
ref: 92210

NUT

€ 8.50
