HANDLEBAR
KMX125-B10 1999 UNITED KINGDOM FR FG

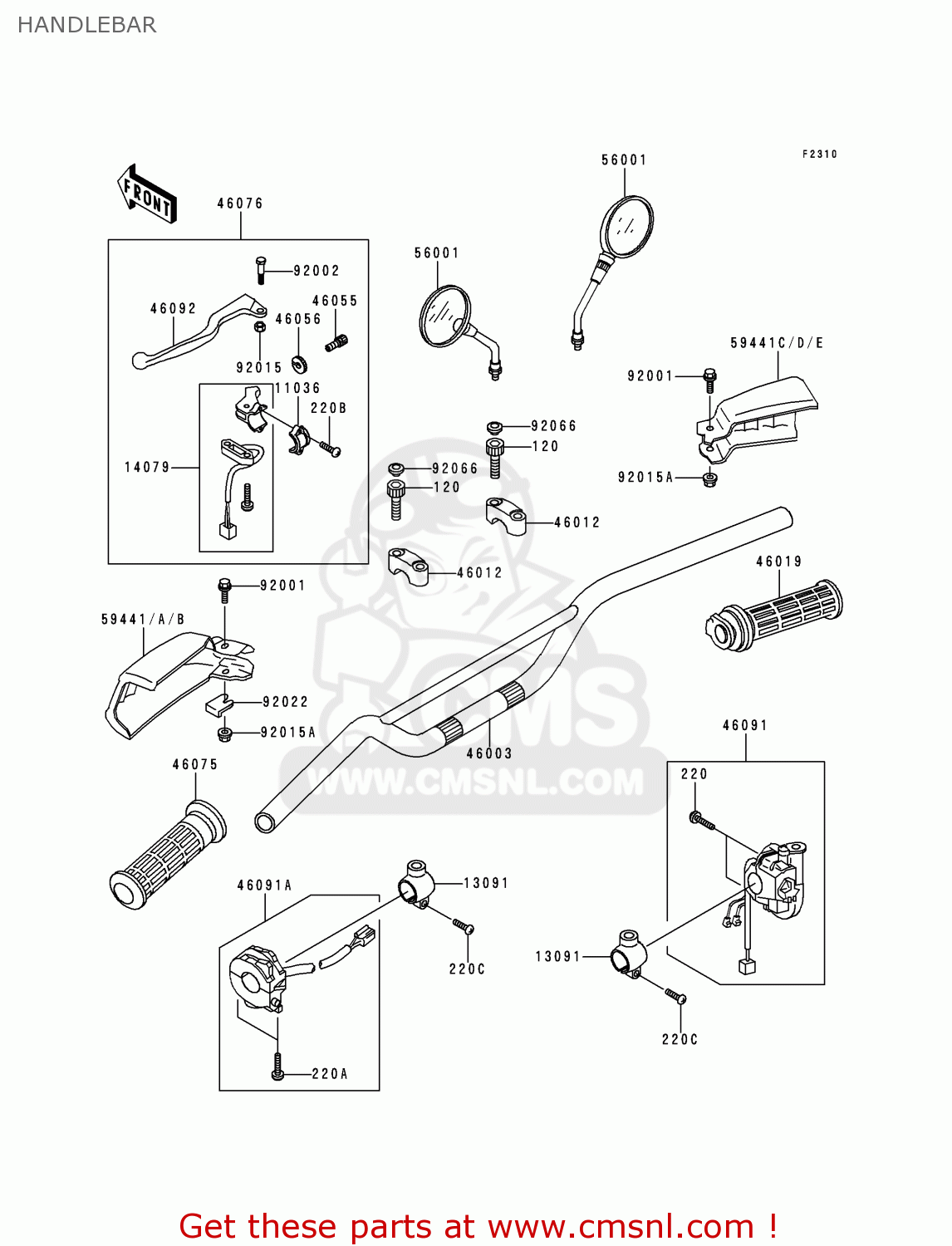

Handlebar diagram KMX125-B10 1999 UNITED KINGDOM FR FG
HANDLEBAR KMX125-B10 1999 UNITED KINGDOM FR FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0830
ref: 120
BOLT,SOCKET,8X30
€ 2.00
220
220B0518
ref: 220
SCREW-PAN HEAD,5X18
€ 2.50
220A
220B0522
ref: 220A
SCREW-PAN-CROS
€ 0.50
220B
220C0514
ref: 220B
SCREW-PAN-CROS
€ 1.00
220C
220C0620
ref: 220C
SCREW-PAN-CROS,6X20,B
€ 1.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13091
130911255
ref: 13091
HOLDER,ENGINE STOP SW
€ 55.00
14079
140791055
ref: 14079
HOLDER-ASSY,CLUTCH
€ 34.00
46003
460031513
ref: 46003
HANDLE
€ 97.50
46012
460121293
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46019
460191005
ref: 46019
GRIP-ASSY,THROTTLE
€ 26.00
46055
46055009
ref: 46055
SCREW,CABLE ASJUST
€ 13.00
46056
46056006
ref: 46056
NUT,CABLE ADJUST NUT
€ 6.00
46075
460751004
ref: 46075
GRIP,L.H.
€ 8.00
46076
460761221
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 59.00
46091
460911744
ref: 46091
HOUSING-ASSY-CONTROL,
€ 59.00
46091A
460911745
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 128.50
46092
460921159
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
56001
560011286
ref: 56001
MIRROR-ASSY
€ 40.00
59441
594411089RN
ref: 59441
COVER-HANDLE,LH,BLUE
€ 16.50
59441A
5944110896L
ref: 59441A
COVER-HANDLE,LH,F.RED
€ 15.00
59441B
5944110896W
ref: 59441B
COVER-HANDLE,LH,L.GRE
€ 16.50
59441C
594411090RN
ref: 59441C
COVER-HANDLE,RH,BLUE
€ 16.50
59441D
5944110906L
ref: 59441D
COVER-HANDLE,RH,F.RED
€ 15.00
59441E
5944110906W
ref: 59441E
COVER-HANDLE,RH,L.GRE
€ 14.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92002
920021880
ref: 92002
BOLT,LEVER SET
€ 14.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151603
ref: 92015A
NUT
€ 3.00
92022
920221896
ref: 92022
WASHER
€ 2.50
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
€ 3.00
