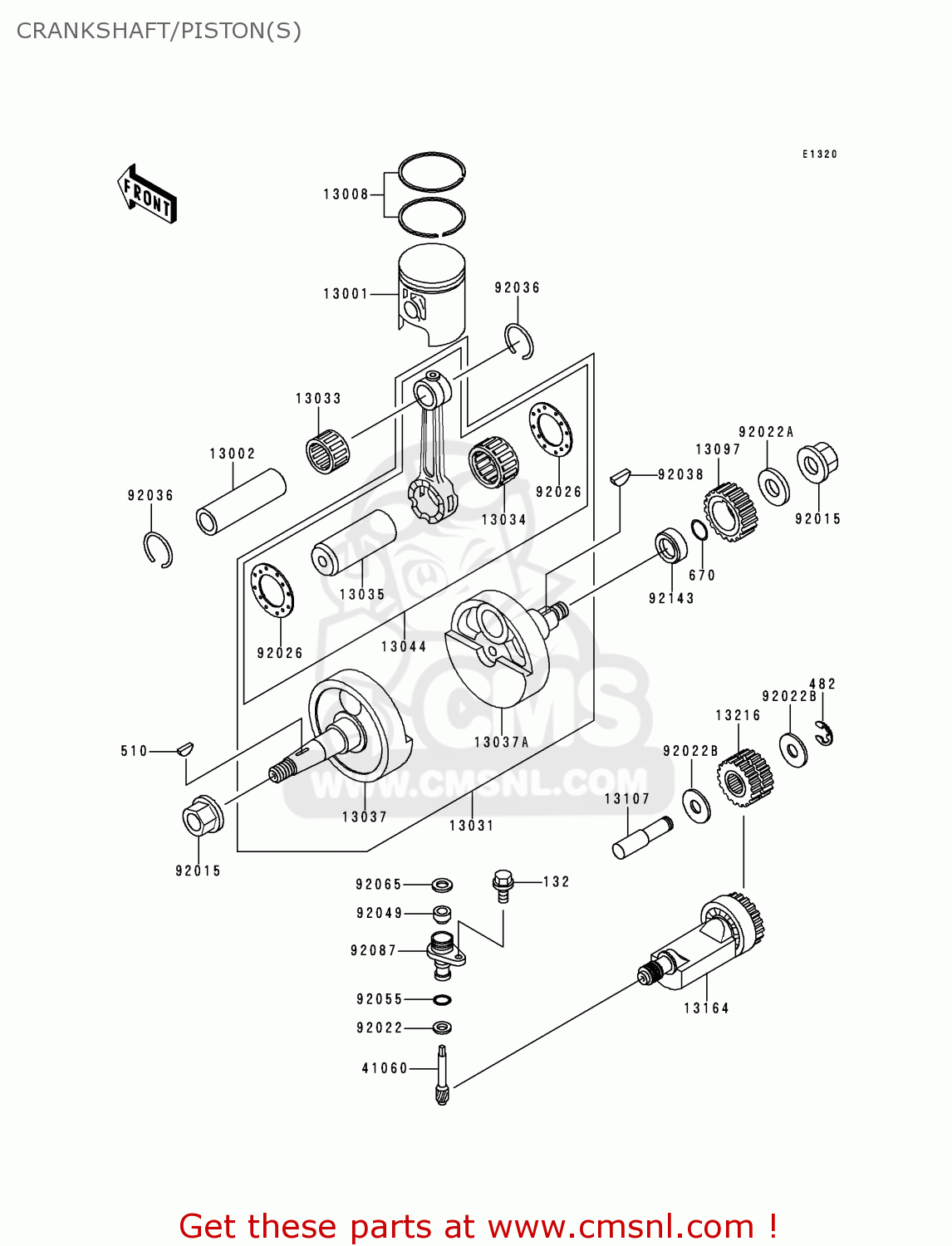

CRANKSHAFT/PISTON(S)

ref

part #

description

quantity

132

132G0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

482

482J8000
ref: 482

CIRCLIP-TYPE-E,8MM

€ 0.50

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00

13001

130011235
ref: 13001

PISTON-ENGINE

€ 88.50

13002

130021003
ref: 13002

PIN-PISTON

€ 16.50

13008

130081079
ref: 13008

RING-SET-PISTON

€ 63.00

13031

130311279
ref: 13031

CRANKSHAFT-COMP

€ 522.00

13033

130331051
ref: 13033

BEARING-SMALL END,KBK

€ 24.00

13034

130341070
ref: 13034

BEARING-BIG END

€ 30.50

13035

130351064
ref: 13035

PIN-CRANK

€ 33.00

13037

130371281
ref: 13037

CRANKSHAFT,LH

€ 206.50

13037A

130371354
ref: 13037A

CRANKSHAFT,RH

€ 217.00

13044

130445069
ref: 13044

SET-CONNECTING ROD

€ 170.00

13097

130971264
ref: 13097

GEAR-PRIMARY SPUR

€ 109.50

13107

131071180
ref: 13107

SHAFT,BALANCER IDLE

€ 22.50

13164

131641001
ref: 13164

BALANCER-COMP

€ 135.00

13216

132161121
ref: 13216

GEAR-COMP,BALNCER IDL

€ 148.50

41060

410601115
ref: 41060

GEAR-METER SCREW,TACH

€ 28.50

92015

920151156
ref: 92015

NUT,12MM

€ 4.50

92022

920221827
ref: 92022

WASHER,6X12.8X1.2

€ 3.00

92022A

920221831
ref: 92022A

WASHER

€ 3.50

92022B

920221973
ref: 92022B

WASHER

€ 3.00

92026

920261136
ref: 92026

SPACER,22.2X37X1.0

€ 5.50

92036

92036004
ref: 92036

CIRCLIP-PISTON PIN

€ 0.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

92049

920491315
ref: 92049

SEAL-OIL

€ 8.00

92055

920551149
ref: 92055

RING-O,10MM

€ 4.00

92065

92065103
ref: 92065

GASKET,TACHOMETER GER (NAS)

€ 2.50

92087

920871055
ref: 92087

BUSHING-METER GEAR

€ 24.50

92143

921431239
ref: 92143

COLLAR

€ 13.50
