FRONT BRAKE

KMX125-B10 1999 UNITED KINGDOM FR FG

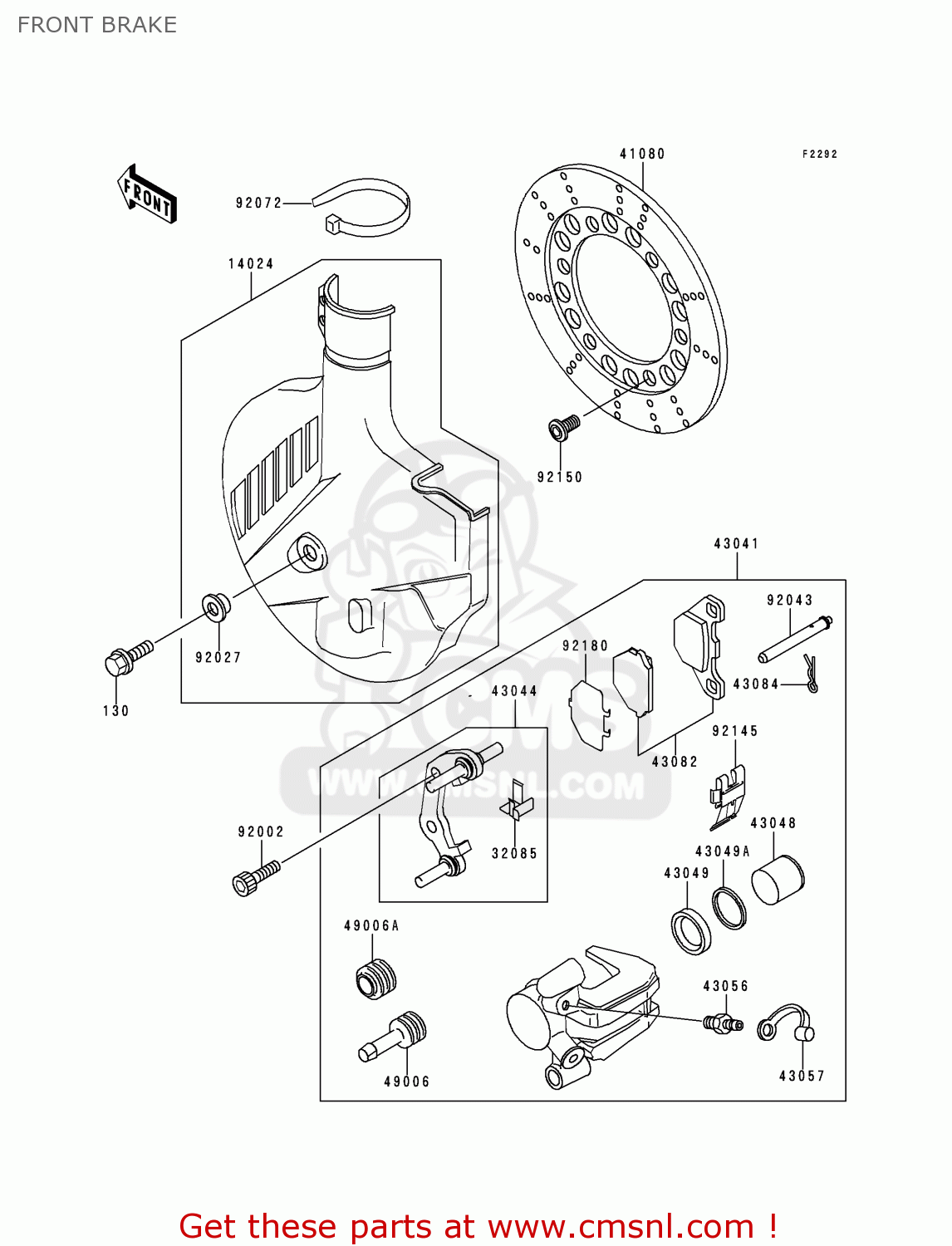

Front brake diagram KMX125-B10 1999 UNITED KINGDOM FR FG

FRONT BRAKE KMX125-B10 1999 UNITED KINGDOM FR FG
FRONT BRAKE KMX125-B10 1999 UNITED KINGDOM FR FG
FRONT BRAKE KMX125-B10 1999 UNITED KINGDOM FR FG
prices are in EUR
ref
part #
description
quantity
130
130G0614
ref: 130
BOLT,FLANGED,6X14
130G0614
€ 0.50
14024
1402417666F
ref: 14024
COVER,FRONT DISC,P.WH
1402417666F
€ 48.00
32085
320851437
ref: 32085
STOPPER
320851437
€ 9.00
41080
410801173
ref: 41080
DISC,FR
€ 193.00
43041
430411689GN
ref: 43041
CALIPER-ASSY,FR,LH,SI
€ 391.00
43044
430441119
ref: 43044
HOLDER-COMP-CALIPER,F
430441119
€ 100.50
43048
430481073
ref: 43048
PISTON-CALIPER
430481073
€ 47.50
43049
430491067
ref: 43049
PACKING (NAS)
430491067
€ 7.50
43049A
430491068
ref: 43049A
PACKING (NAS)
430491068
€ 6.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821229
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821229
€ 42.00
43084
43084003
ref: 43084
CLIP, PAD
43084003
€ 2.50
49006
490061054
ref: 49006
BOOT,CALIPER
490061054
€ 8.00
49006A
490061055
ref: 49006A
BOOT,CALIPER
490061055
€ 4.50
92002
920021178
ref: 92002
BOLT,SOCKET,8X20
920021178
€ 3.00
92027
920271936
ref: 92027
COLLAR,FRONT FENDER
920271936
€ 4.00
92043
920431356
ref: 92043
PIN,PAD
920431356
€ 7.00
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92145
921451260
ref: 92145
SPRING,PAD
921451260
€ 10.50
92150
921501852
ref: 92150
BOLT,DISC PLATE,8X15
921501852
€ 3.00
92180
921801297
ref: 92180
SHIM
921801297
€ 4.00
