SIDE COVERS/CHAIN COVER

KMX125-A3 1988 EUROPE UK GR IT NR ST

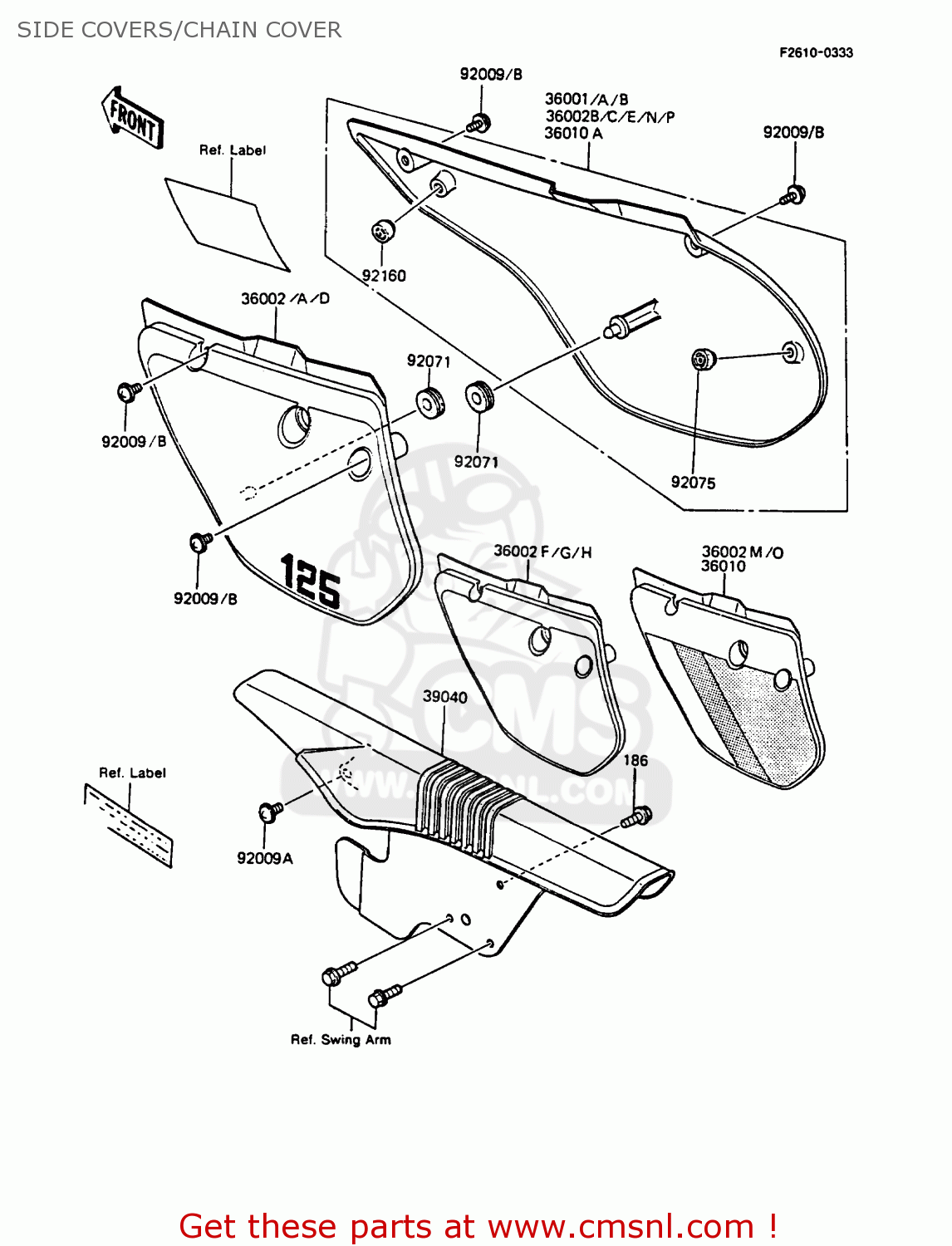

Side covers/chain cover diagram KMX125-A3 1988 EUROPE UK GR IT NR ST

prices are in EUR

ref

part #

description

quantity

36002M

3600254756W
ref: 36002M
EUGRNRSTUK

COVER-SIDE,LH,L.GREEN

€ 31.50

36002N

360025476AC
ref: 36002N
EUGRNRSTUK

COVER-SIDE,RH,GREEN/W

€ 62.00

36002O

3600254776F
ref: 36002O
EUGRITUK

COVER-SIDE,LH,P.WHITE

€ 46.00

36002P

360025478AN
ref: 36002P
EUGRITUK

COVER-SIDE,RH,WHITE/B

€ 41.00

36010

3601050076C
ref: 36010
EUGRITNRUK

COVER-SIDE,LH,EBONY

€ 66.00

36010A

360105008AR
ref: 36010A
EUGRITNRUK

COVER-SIDE,RH,EBONY/G

€ 51.00

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92009A

920091402
ref: 92009A

SCREW,6X10

€ 1.50

92009B

920091515
ref: 92009B

SCREW,6X8,BLACK

€ 2.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751598
ref: 92075

DAMPER,SIDE COVER

€ 5.50

92160

921601041
ref: 92160

DAMPER

€ 5.50
