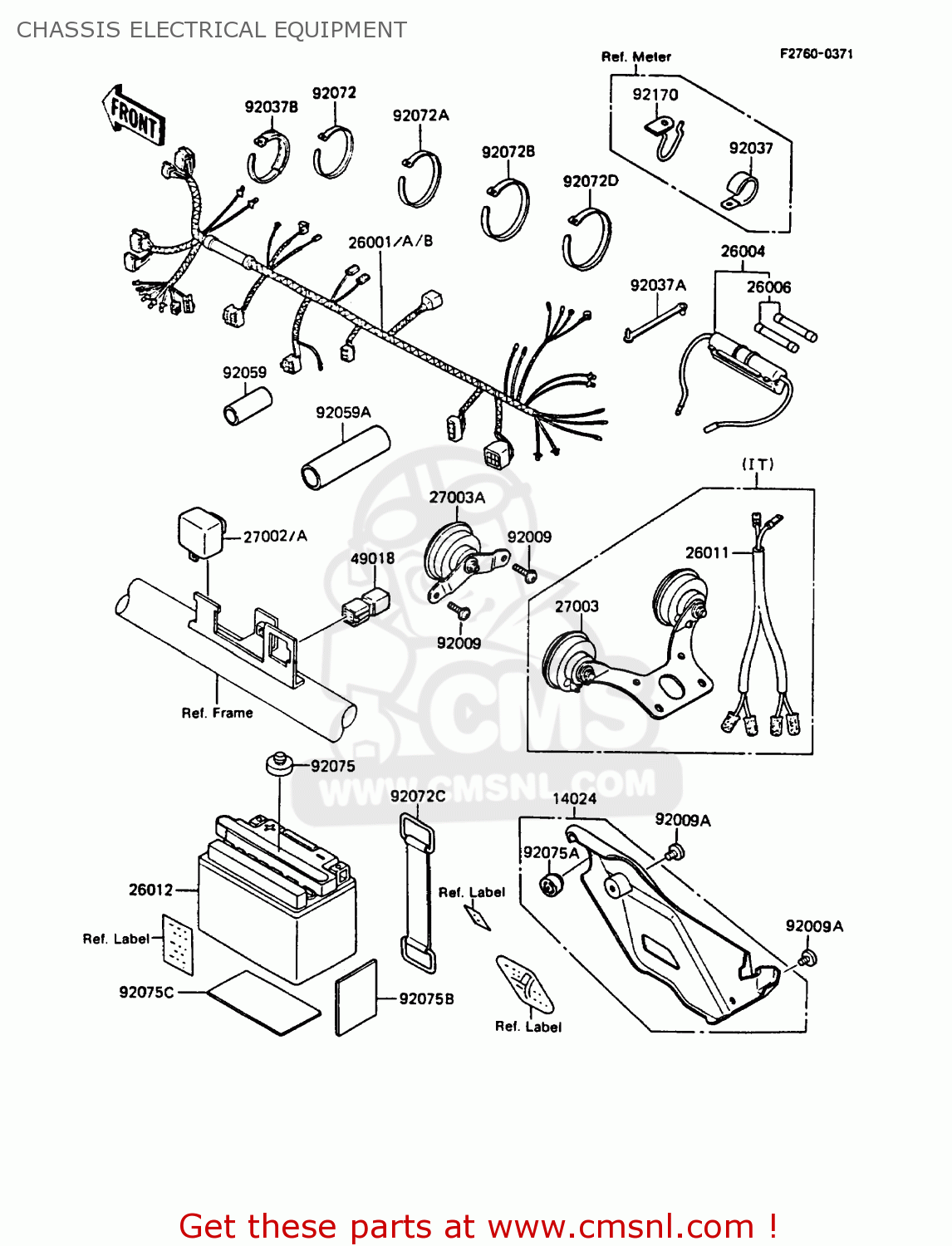

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

14024

140241543
ref: 14024

COVER,BATTERY

€ 11.50

26001B

260011925
ref: 26001B

HARNESS,MAIN

€ 153.00

26004

260041074
ref: 26004

FUSE-ASSY

€ 13.00

26006

260061056
ref: 26006

FUSE,20A,L=30

€ 3.00

26011

260111277
ref: 26011
IT

WIRE-LEAD,HORN

€ 28.50

26012

260121198
ref: 26012

BATTERY, 12V 4AH

€ 46.00

27002

270021053
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 33.50

27003

270031283
ref: 27003
IT

HORN

€ 46.00

27003A

270031306
ref: 27003A
EUGRNRSTUK

HORN

€ 50.00

49018

490181052
ref: 49018

DIODE

€ 35.50

92009

920091286
ref: 92009
EUGRNRSTUK

SCREW,6X10

€ 2.50

92009A

920091402
ref: 92009A

SCREW,6X10

€ 1.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371483
ref: 92037B

CLAMP,BAND,L=120

€ 8.50

92059

920591799
ref: 92059

TUBE,8X9X38

€ 2.00

92059A

920591878
ref: 92059A

TUBE,11X12X90

€ 2.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00

92072B

92072056
ref: 92072B

BAND,RUBBER

€ 3.00

92072C

92072071
ref: 92072C

BAND,BATTERY

€ 6.50

92072D

920721197
ref: 92072D

BAND

€ 5.00

92075

92075005
ref: 92075

DAMPER

€ 2.50

92075A

920751598
ref: 92075A

DAMPER,SIDE COVER

€ 5.50

92075B

920751727
ref: 92075B

DAMPER

€ 2.50

92075C

920751864
ref: 92075C

DAMPER,BATTERY

€ 3.50

92170

921701062
ref: 92170

CLAMP,HARNESS

€ 6.50

all assemblies
