Genuine KMX Kawasaki Parts delivered quickly!


CYLINDER HEAD/CYLINDER

KMX125-A3 1988 EUROPE UK GR IT NR ST

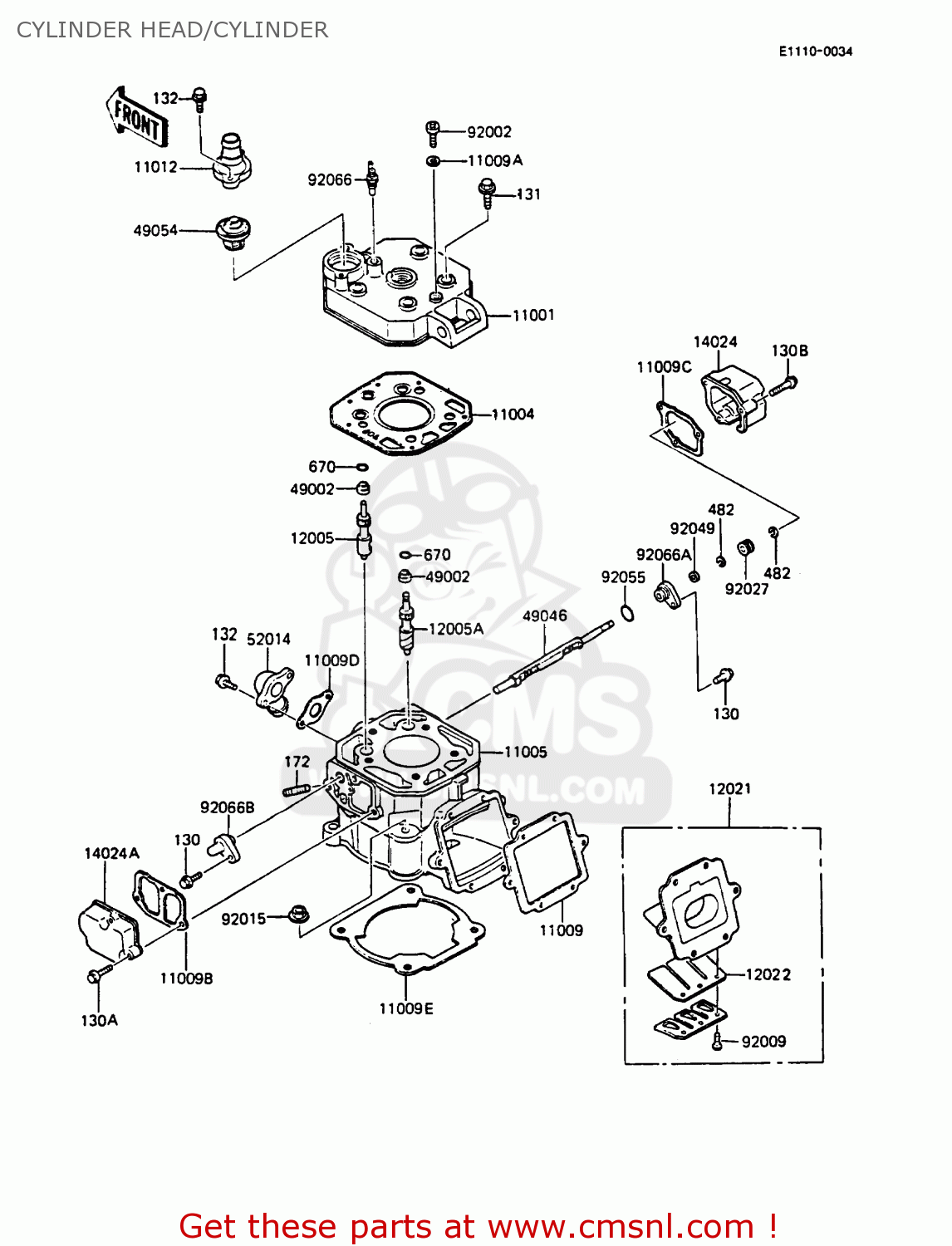

Cylinder head/cylinder diagram KMX125-A3 1988 EUROPE UK GR IT NR ST

CYLINDER HEAD/CYLINDER KMX125-A3 1988 EUROPE UK GR IT NR ST
CYLINDER HEAD/CYLINDER KMX125-A3 1988 EUROPE UK GR IT NR ST
CYLINDER HEAD/CYLINDER KMX125-A3 1988 EUROPE UK GR IT NR ST
prices are in EUR
ref
part #
description
quantity
130
130G0516
ref: 130
BOLT-FLANGED
130G0516
€ 0.50
130A
130J0525
ref: 130A
BOLT-FLANGED
130J0525
€ 2.50
130B
130J0530
ref: 130B
BOLT-FLANGED
130J0530
€ 2.50
131
131S0850
ref: 131
BOLT-FLANGED
131S0850
€ 5.00
132
132J0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
172
172G0822
ref: 172
BOLT-STUD,8X22
172G0822
€ 1.50
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
670
670B1510
ref: 670
O RING,9.8X1.9
670B1510
€ 2.50
11001
110011235
ref: 11001
HEAD-CYLINDER
€ 147.00
11004
110041151
ref: 11004
GASKET-HEAD (NAS)
110041151
€ 24.50
11005
110051497
ref: 11005
CYLINDER-ENGINE
110051497
€ 339.50
11009
110091263
ref: 11009
GASKET,REED VALVE (MCA)
110091263
€ 6.00
11009A
110091298
ref: 11009A
GASKET,6X12X10 (NAS)
110091298
€ 3.00
11009B
110091478
ref: 11009B
GASKET,LH,RESONATOR (MCA)
110091478
€ 5.50
11009C
110091479
ref: 11009C
GASKET,RH,GOVERNOR (MCA)
110091479
€ 5.50
11009D
110091584
ref: 11009D
GASKET,ELBOW (MCA)
110091584
€ 3.50
11009E
110091764
ref: 11009E
GASKET,CYLINDER BASE (MCA)
110091764
€ 11.00
11012
110121513
ref: 11012
CAP,THERMOSTAT
110121513
€ 18.50
12005
120051057
ref: 12005
VALVE-EXHAUST,LH
120051057
€ 42.00
12005A
120051060
ref: 12005A
VALVE-EXHAUST,RH
120051060
€ 42.00
12021
120211063
ref: 12021
VALVE-ASSY-REED
120211063
€ 124.50
12022
120221058
ref: 12022
VALVE-REED
120221058
€ 14.00
14024
140241650
ref: 14024
COVER,RH,GOVERNOR
140241650
€ 33.00
14024A
140251984
ref: 14024A
COVER,LH,RESONATOR
€ 28.50
49002
490021075
ref: 49002
GUIDE-VALVE
490021075
€ 10.50
49046
490461056
ref: 49046
ROD-GOVERNOR
490461056
€ 71.00
49054
490541057
ref: 49054
THERMOSTAT
490541057
€ 46.00
52014
520141061
ref: 52014
ELBOW
520141061
€ 18.50
92002
920021222
ref: 92002
BOLT,6X10
920021222
€ 5.50
92009
920091014
ref: 92009
SCREW,REED VALVE
920091014
€ 2.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92027
920271834
ref: 92027
COLLAR,GOVERNOR ROD
920271834
€ 11.50
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
920491206
€ 7.50
92055
920551150
ref: 92055
O-RING, 10MM
920551150
€ 5.50
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
920661118
€ 50.00
92066A
920661254
ref: 92066A
PLUG,GOVERNOR ROD,RH
920661254
€ 15.50
92066B
920661255
ref: 92066B
PLUG,GOVERNOR ROD,LH
920661255
€ 13.00
