METER(S)
KMX125-A3 1988 EUROPE UK GR IT NR ST

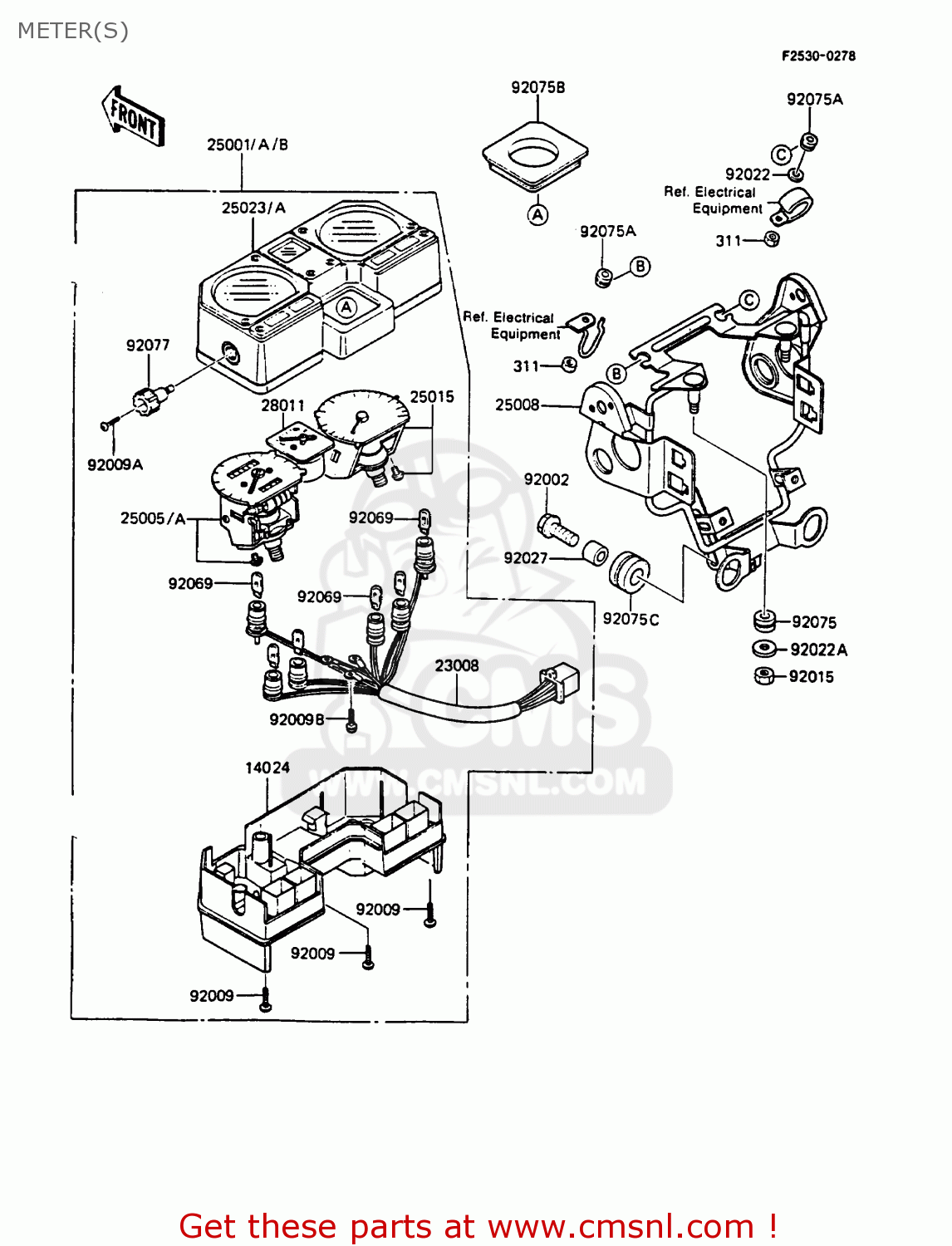

Meter(s) diagram KMX125-A3 1988 EUROPE UK GR IT NR ST
METER(S) KMX125-A3 1988 EUROPE UK GR IT NR ST
×
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
€ 0.50
14024
140251904
ref: 14024
COVER,METER CASE,LWR
€ 42.00
23008
230081311
ref: 23008
SOCKET-ASSY,METER
€ 36.00
25001
250011653
ref: 25001
EUGRITNRST
METER-ASSY,KPH
€ 681.00
25001A
250011654
ref: 25001A
UK
METER-ASSY,MPH
€ 513.50
25005
250051327
ref: 25005
EUGRITNRST
SPEEDOMETER,KPH
€ 124.00
25005A
250051328
ref: 25005A
UK
SPEEDOMETER,MPH
€ 132.50
25008
250081130
ref: 25008
BRACKET-METER
€ 59.50
25015
250151257
ref: 25015
TACHOMETER,X1000R/MIN
€ 107.00
25023
250231142
ref: 25023
COVER-METER CASE,UPP
€ 55.50
28011
280111084
ref: 28011
METER,TEMP
€ 97.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
92075024
ref: 92075
DAMPER
€ 2.50
92075A
920751385
ref: 92075A
DAMPER,METER BRACKET
€ 3.00
92075B
920751578
ref: 92075B
DAMPER,IGNITION SWITC
€ 4.50
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
92077
920771054
ref: 92077
KNOB,METER
€ 6.00
