MUFFLER(S)
KMX125-A12 1999 MEXICO

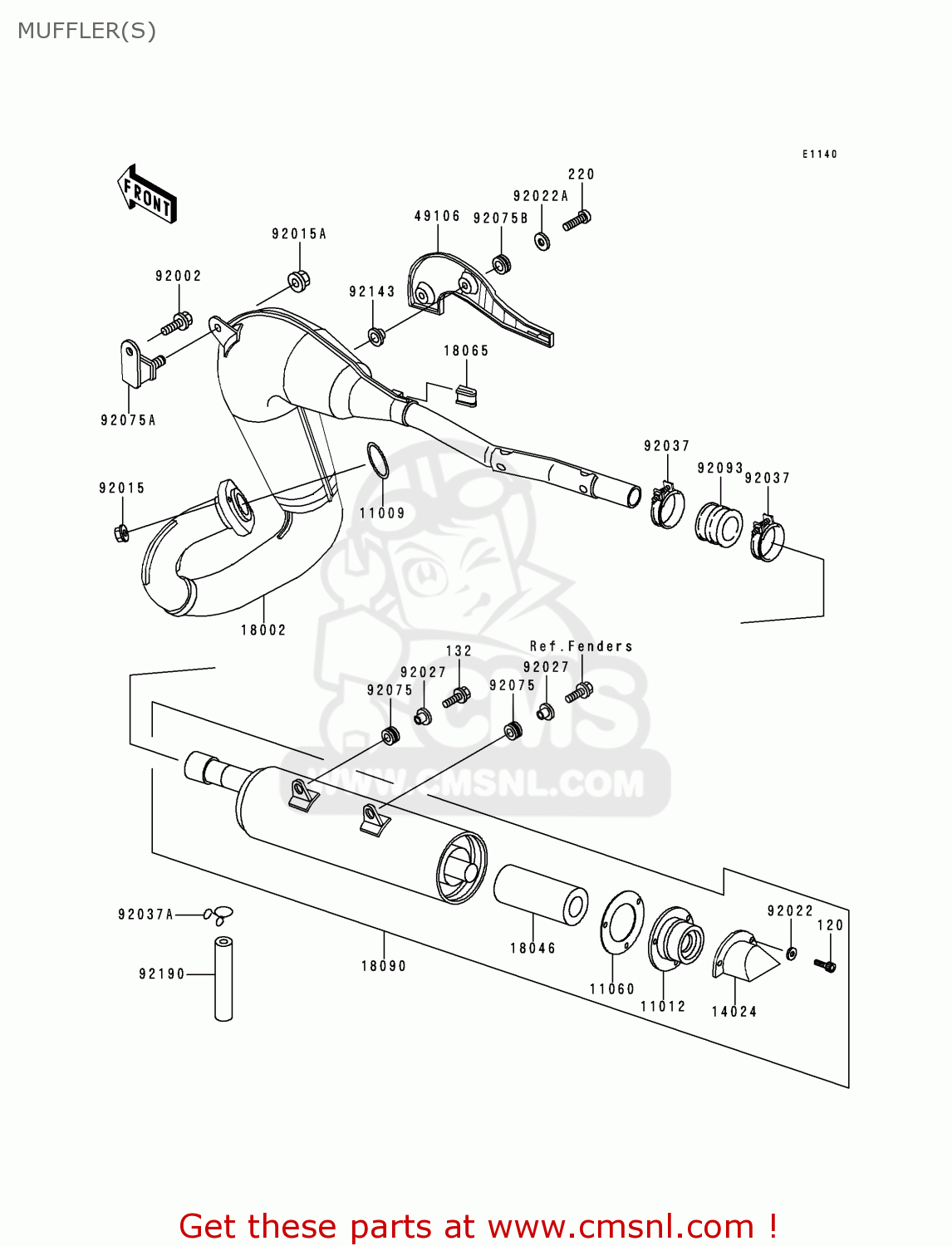

Muffler(s) diagram KMX125-A12 1999 MEXICO
MUFFLER(S) KMX125-A12 1999 MEXICO
×
prices are in EUR
ref
part #
description
quantity
120
120S0510
ref: 120
BOLT-SOCKET
€ 0.50
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
220
220C0614
ref: 220
SCREW-PAN-CROS,6X14,B
€ 1.50
11009
110091992
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 5.50
11012
110121527
ref: 11012
CAP
€ 19.50
11060
110601301
ref: 11060
GASKET (NAS)
€ 4.00
14024
140241365
ref: 14024
COVER,BAFFLE
€ 16.00
18002
180021688
ref: 18002
BODY-COMP-MUFFLER
€ 383.00
18046
180461066
ref: 18046
WOOL,MUFFLER
€ 18.00
18065
18065007
ref: 18065
INSULATOR,HEAT
€ 3.00
18090
180901219
ref: 18090
BODY-COMP-MUFFLER
€ 112.00
49106
491061099
ref: 49106
COVER-MUFFLER
€ 26.50
92002
920021242
ref: 92002
BOLT
€ 3.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
€ 3.50
92022
92022037
ref: 92022
WASHER,5.5X10.5X0.8
€ 2.50
92022A
920221344
ref: 92022A
WASHER,7X16X1.2
€ 2.50
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371129
ref: 92037
CLAMP,40MM
€ 6.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751891
ref: 92075A
DAMPER,MUFFLER
€ 21.00
92075B
920751947
ref: 92075B
DAMPER
€ 5.00
92093
920931012
ref: 92093
SEAL,EXHAUST PIPE
€ 24.00
92143
921431057
ref: 92143
COLLAR
€ 3.00
92190
921901228
ref: 92190
TUBE,5X10X668,BLUE
€ 12.00
