FRONT HUB
KMX125-A12 1999 MEXICO

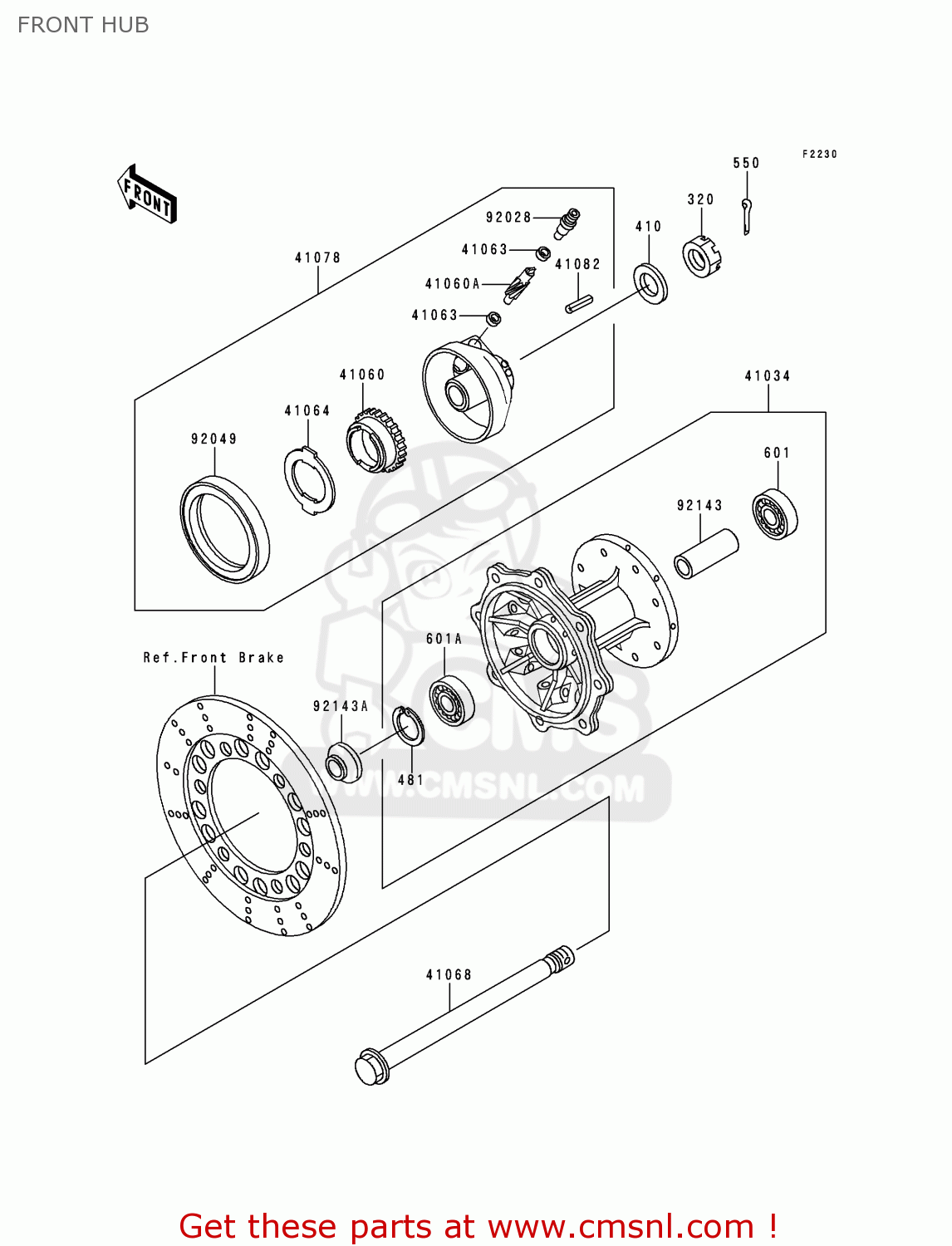

Front hub diagram KMX125-A12 1999 MEXICO
FRONT HUB KMX125-A12 1999 MEXICO
×
prices are in EUR
ref
part #
description
quantity
320
320G1200
ref: 320
NUT-CASTLE
€ 2.50
410
410B1200
ref: 410
WASHER-PLAIN-SMALL,12
€ 0.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6201UG
ref: 601
BEARING-BALL,#6201LUC
€ 18.50
601A
601B6202UG
ref: 601A
BEARING BALL
€ 19.50
41034
410341294
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 307.50
41060
410601101
ref: 41060
GEAR-METER SCREW,24T
€ 27.00
41060A
410601102
ref: 41060A
GEAR-METER SCREW,8T
€ 19.00
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
€ 3.00
41064
410641051
ref: 41064
RECEIVER-SPEEDOMETER
€ 8.00
41068
410681275
ref: 41068
AXLE,FR
€ 30.50
41078
410781063
ref: 41078
CASE-ASSY-METER GEAR
€ 108.00
41082
41082001
ref: 41082
PIN-SPRING
€ 2.50
92028
920281066
ref: 92028
BUSHING,SPEEDOMET CAB
€ 7.50
92049
920491263
ref: 92049
SEAL-OIL,PJN40556
€ 12.50
92143
921431012
ref: 92143
COLLAR,12.2X19X70
€ 11.50
92143A
921431013
ref: 92143A
COLLAR,L=25
€ 18.50
