CRANKSHAFT/PISTON(S)
KMX125-A12 1999 MEXICO

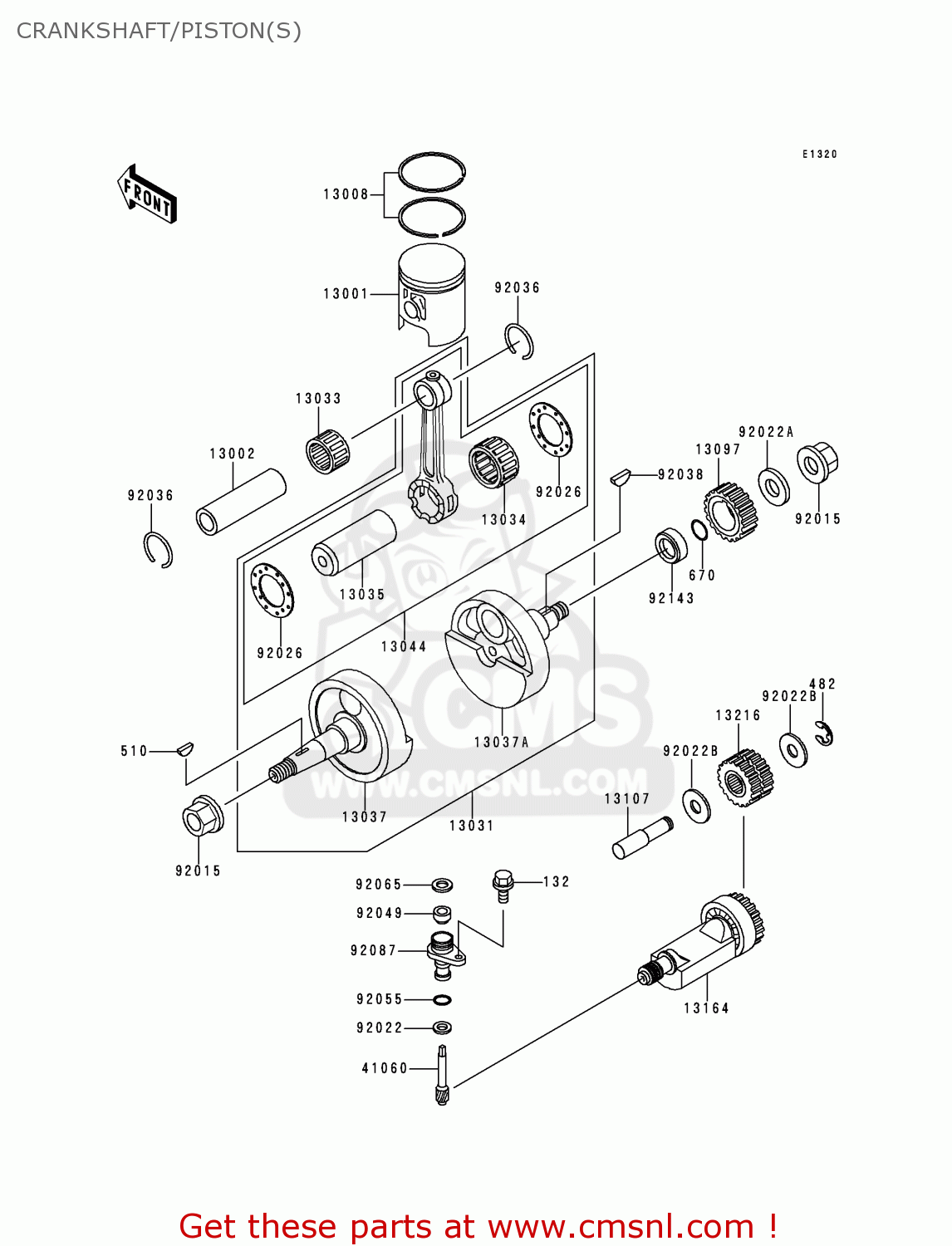

Crankshaft/piston(s) diagram KMX125-A12 1999 MEXICO
CRANKSHAFT/PISTON(S) KMX125-A12 1999 MEXICO
×
prices are in EUR
ref
part #
description
quantity
132
132G0614
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
482
482J8000
ref: 482
CIRCLIP-TYPE-E,8MM
€ 0.50
510
510A3200
ref: 510
KEY-WOODRUFF
€ 1.50
670
670B2018
ref: 670
O RING,18MM
€ 1.00
13001
130011235
ref: 13001
PISTON-ENGINE
€ 88.50
13002
130021003
ref: 13002
PIN-PISTON
€ 16.50
13008
130081079
ref: 13008
RING-SET-PISTON
€ 63.00
13031
130311279
ref: 13031
CRANKSHAFT-COMP
€ 522.00
13033
130331051
ref: 13033
BEARING-SMALL END,KBK
€ 24.00
13034
130341070
ref: 13034
BEARING-BIG END
€ 30.50
13035
130351064
ref: 13035
PIN-CRANK
€ 33.00
13037
130371281
ref: 13037
CRANKSHAFT,LH
€ 206.50
13037A
130371354
ref: 13037A
CRANKSHAFT,RH
€ 217.00
13044
130445069
ref: 13044
SET-CONNECTING ROD
€ 170.00
13097
130971264
ref: 13097
GEAR-PRIMARY SPUR
€ 109.50
13107
131071180
ref: 13107
SHAFT,BALANCER IDLE
€ 22.50
13164
131641001
ref: 13164
BALANCER-COMP
€ 135.00
13216
132161121
ref: 13216
GEAR-COMP,BALNCER IDL
€ 148.50
41060
410601115
ref: 41060
GEAR-METER SCREW,TACH
€ 28.50
92015
920151156
ref: 92015
NUT,12MM
€ 4.50
92022
920221827
ref: 92022
WASHER,6X12.8X1.2
€ 3.00
92022A
920221831
ref: 92022A
WASHER
€ 3.50
92022B
920221973
ref: 92022B
WASHER
€ 3.00
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
€ 5.50
92036
92036004
ref: 92036
CIRCLIP-PISTON PIN
€ 0.50
92038
92038003
ref: 92038
WOODRUFF KEY-PRY PINI
€ 1.50
92049
920491315
ref: 92049
SEAL-OIL
€ 8.00
92055
920551149
ref: 92055
RING-O,10MM
€ 4.00
92065
92065103
ref: 92065
GASKET,TACHOMETER GER (NAS)
€ 2.50
92087
920871055
ref: 92087
BUSHING-METER GEAR
€ 24.50
92143
921431239
ref: 92143
COLLAR
€ 13.50
