GEAR CHANGE DRUM/SHIFT FORK(S)

KMX125-A12 1999 MEXICO

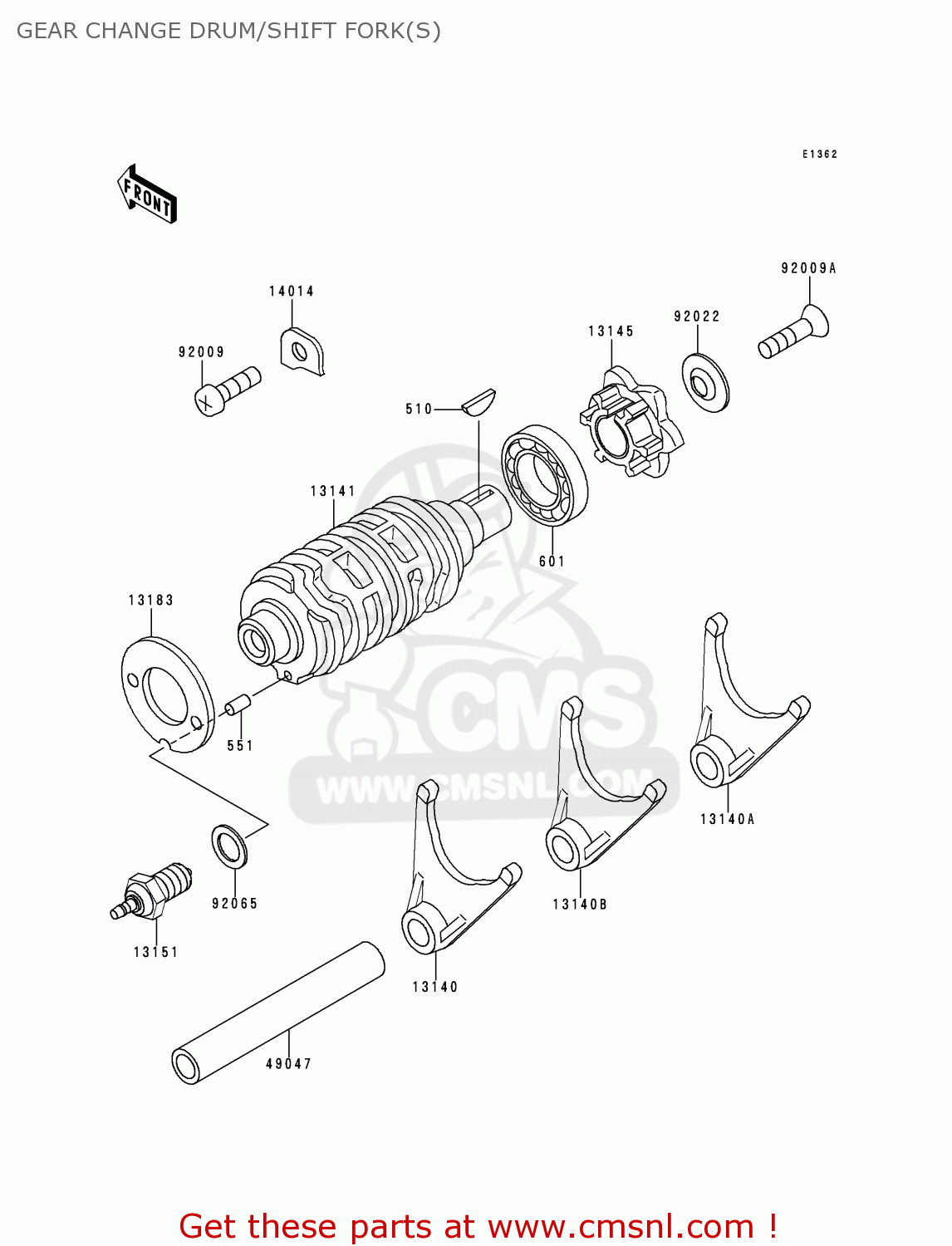

Gear change drum/shift fork(s) diagram KMX125-A12 1999 MEXICO

prices are in EUR

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

551

551A0308
ref: 551

PIN-DOWEL,3X8

€ 0.50

601

601B6003U
ref: 601

BEARING-BALL,#6003UC3

€ 21.50

13140

131401247
ref: 13140

FORK-SHIFT

€ 68.50

13140A

131401264
ref: 13140A

FORK-SHIFT,LOW-3RD

€ 70.00

13140B

131401265
ref: 13140B

FORK-SHIFT, 5TH-TOP

€ 70.50

13141

131411161
ref: 13141

DRUM-CHANGE

€ 95.50

13145

131451084
ref: 13145

CAM-CHANGE DRUM

€ 32.50

13151

131511080
ref: 13151

SWITCH-COMP,NEUTRAL

€ 9.00

13183

131831066
ref: 13183

PLATE

€ 11.50

14014

140141066
ref: 14014

PLATE-POSITION

€ 2.50

49047

490471068
ref: 49047

ROD-SHIFT

€ 13.00

92009

920091266
ref: 92009

SCREW

€ 2.50

92009A

920091447
ref: 92009A

SCREW,6X20

€ 3.00

92022

920221792
ref: 92022

WASHER

€ 3.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50
