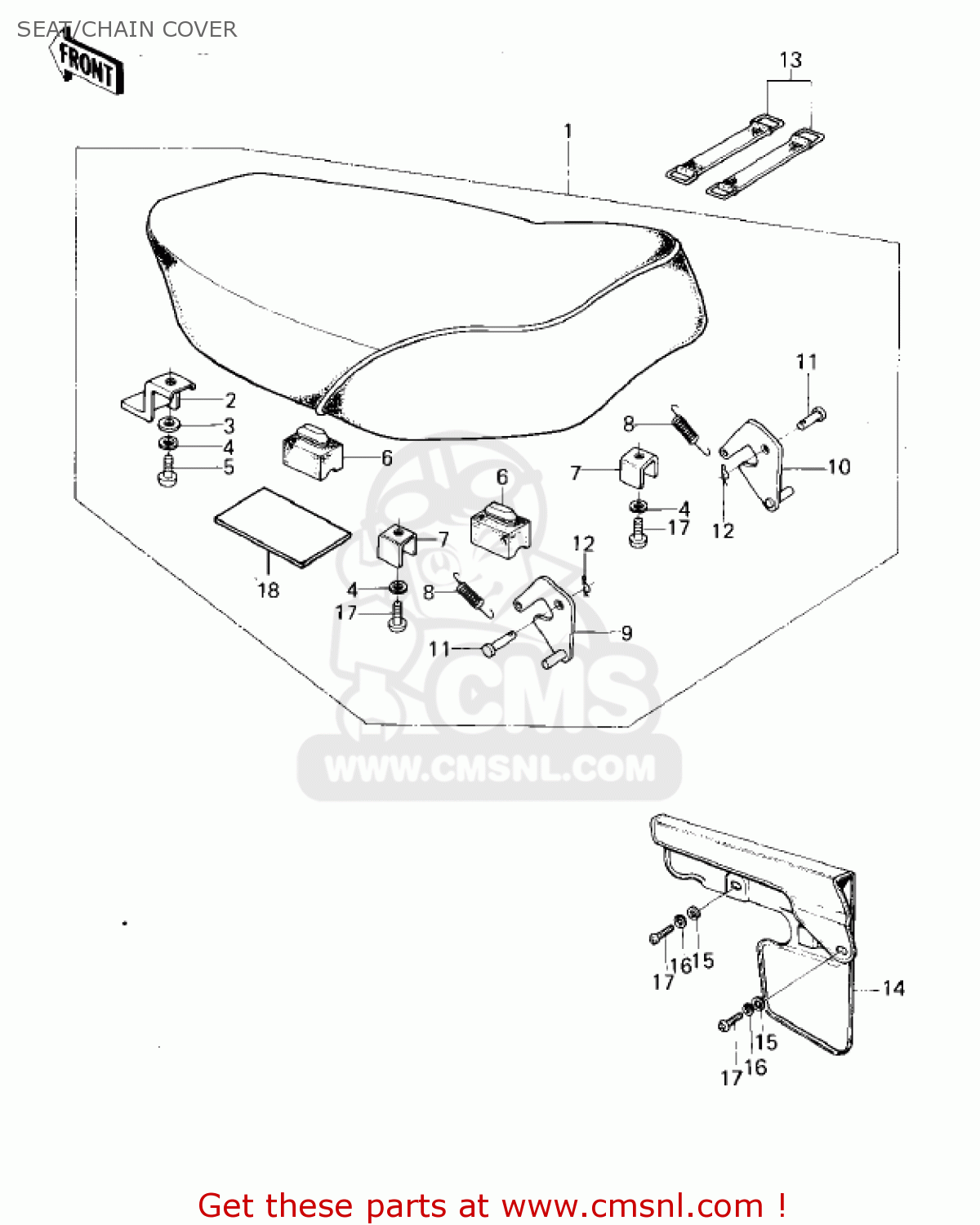

SEAT/CHAIN COVER

ref

part #

description

quantity

1

530011018
ref: 1
KM100-A1/A2/A3/A3A

SEAT ASSY

€ 207.00

1

530011018
ref: 1
KM100-A4

SEAT ASSY

€ 207.00

1

530011460
ref: 1
KM100-A6~

SEAT ASSEMBLY

€ 117.00

2

53032004
ref: 2

BRACKET,SEAT

€ 4.00

3

92022125
ref: 3

WASHER,6.5X20X1.6

€ 1.00

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

220B0614
ref: 5

SCREW-PAN HEAD,6X14

€ 2.00

6

92075099
ref: 6

DAMPER RUBBER

€ 3.50

7

53012012
ref: 7

SPRING,SEAT HOOK

€ 2.00

8

53012013
ref: 8

SPRING,HOOK

€ 10.50

9

53008031
ref: 9

HOOK,SEAT,LH

€ 6.00

10

53008032
ref: 10

HOOK,SEAT,RH

€ 6.00

11

53011001
ref: 11

PIN,6X12

€ 2.50

12

92041003
ref: 12

COTTER

€ 0.50

13

92072066
ref: 13

BAND,L=50

€ 11.00

14

360141024
ref: 14
KM100-A1/A2/A3/A3A/A

CASE-CHAIN

€ 24.50

14

360141024
ref: 14
KM100-A6~

CASE-CHAIN

€ 24.50

15

411B0600
ref: 15
KM100-A1/A2/A3/A3A/A

WASHER-PLAIN,6MM

€ 0.50

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

220B0612
ref: 17

SCREW-PAN HEAD,6X12

€ 1.00

18

92075224
ref: 18
KM100-A4~

DAMPER,RUBBER

€ 4.50

all assemblies
