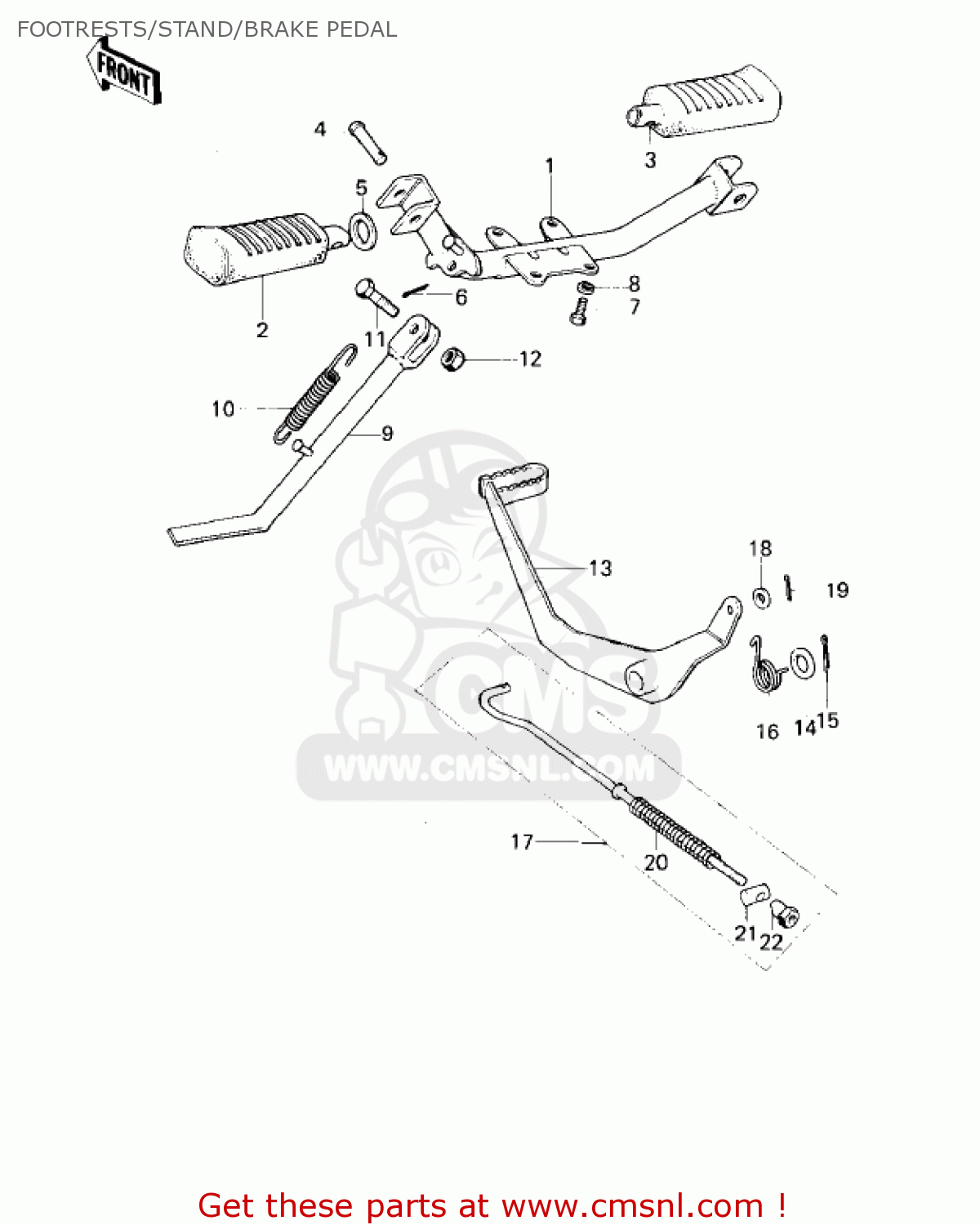

FOOTRESTS/STAND/BRAKE PEDAL

ref

part #

description

quantity

1

34002047
ref: 1

HOLDER-STEP

€ 77.50

2

340271114
ref: 2

STEP-ASSY,FR,LH

€ 24.00

3

340271115
ref: 3

STEP-ASSY,FR,RH

€ 24.00

4

92043080
ref: 4

PIN-FOOTREST BAR FIT

€ 3.50

5

92022204
ref: 5

WASHER-PLAIN

€ 0.50

5

92022250
ref: 5

WASHER,PLAIN

€ 3.00

6

550D2015
ref: 6

PIN-COTTER,2.0X15

€ 1.00

7

115G0818
ref: 7

BOLT SMALL-UPSET

€ 2.50

8

461F0800
ref: 8

WASHER-SPRING,8MM

€ 0.50

9

340241013
ref: 9
KM100-A1/A2

STAND-SIDE

€ 30.00

9

340241013
ref: 9
KM100-A3~

STAND-SIDE

€ 30.00

10

34023005
ref: 10

SPRING-MAIN STAND

€ 6.50

11

113G1025
ref: 11

BOLT-SMALL-FINE,10X25

€ 2.50

11

113G1028
ref: 11
USE FOR P/NO. 34024-

BOLT,HEX HEAD,10X28

€ 4.50

12

314B1000
ref: 12

NUT,10MM

€ 0.50

13

43001062
ref: 13

LEVER-BRAKE,PEDAL

€ 30.00

14

92022085
ref: 14

WASHER,15.3X24X1.2

€ 2.50

15

550D3030
ref: 15

PIN-COTTER,3.0X30

€ 1.50

16

43005020
ref: 16

SPRING,BRAKE PEDAL

€ 4.00

17

430105004
ref: 17

ROD-ASSY-BRAKE

€ 15.50

18

410B0600
ref: 18

WASHER-PLAIN-SMALL,6M

€ 0.50

19

550D2015
ref: 19

PIN-COTTER,2.0X15

€ 1.00

20

43012001
ref: 20

SPRING,BRAKE ROD

€ 3.00

21

92043039
ref: 21

PIN,BRAKE ROD

€ 4.50

22

92015042
ref: 22

NUT-BRAKE ROD ADJUST

€ 4.00
