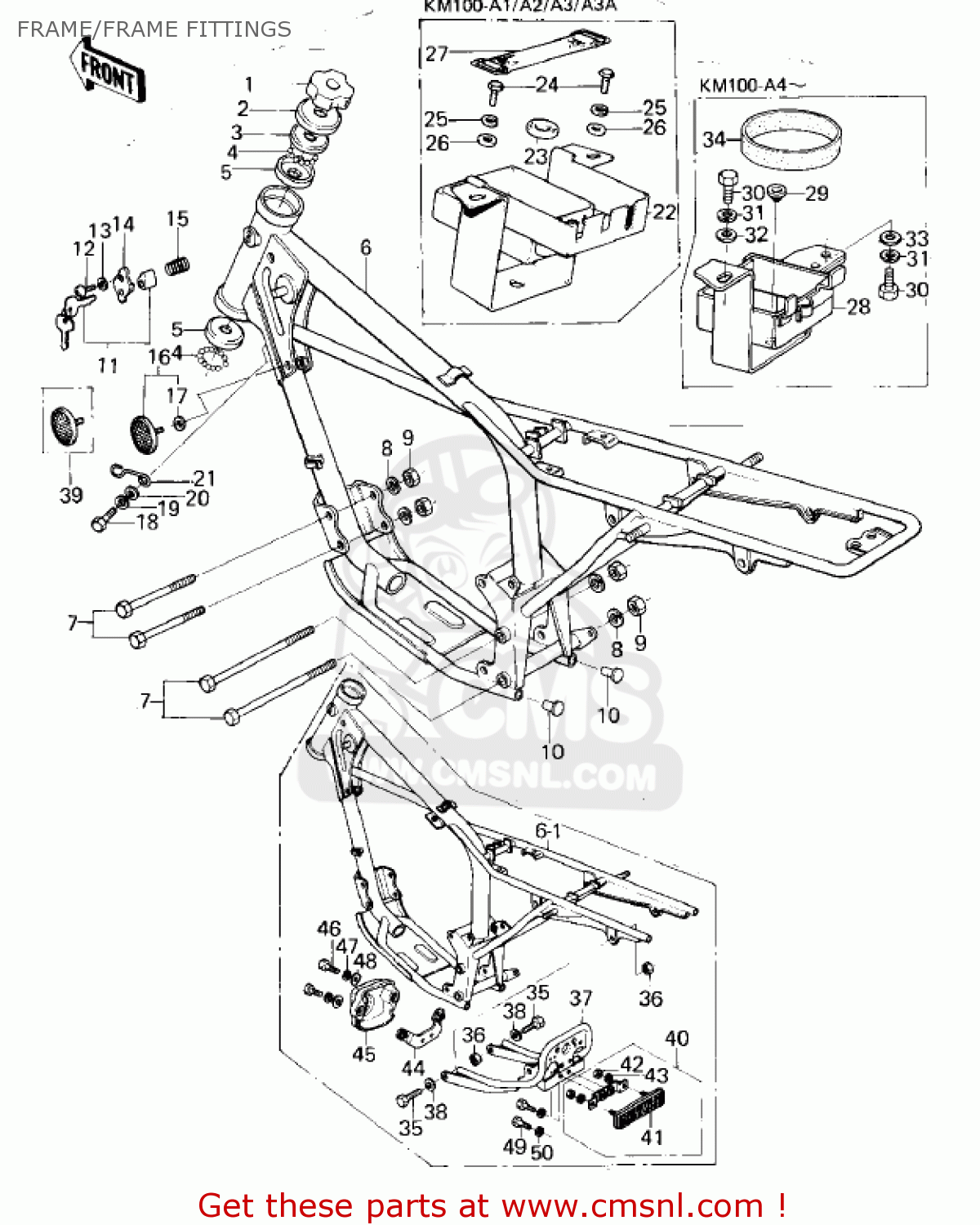

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92090006
ref: 1

NUT-STEERING STEM LCK

€ 10.50

2

46098004
ref: 2

CAP-STEERING STEM

€ 4.00

3

92047005
ref: 3

CONE-UPPER BEARING

€ 10.50

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048004
ref: 5

RACE-BEARING

€ 10.00

6

32002109
ref: 6
KM100-A1/A2/A3/A3A

FRAME

€ 409.00

6

320021043
ref: 6
KM100-A4

FRAME

€ 382.00

6-1

320021110
ref: 6-1
KM100-A6~

FRAME

€ 407.50

7

113810115
ref: 7

UNAVAILABLE IN PRICE BOOK

€ 0.00

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

9

314B1000
ref: 9

NUT,10MM

€ 0.50

10

32112001
ref: 10

PLUG

€ 2.50

11

27016042
ref: 11

LOCK-ASSY,STEERING

€ 36.00

12

92008007
ref: 12

SCREW-TAPPING

€ 2.50

13

92097003
ref: 13

WASHER

€ 2.50

14

110121134
ref: 14

CAP,STEERING LOCK

€ 4.50

15

27032001
ref: 15

SPRING-STEERING LOCK

€ 3.50

16

28001026
ref: 16
KM100-A1/A2/A3/A3A/A

REFLECTOR,REFLEX

€ 12.50

17

92094011
ref: 17

DAMPER,REFLECTOR

€ 3.00

18

112G0612
ref: 18

BOLT-UPSET

€ 2.50

19

461F0600
ref: 19

WASHER-SPRING,6MM

€ 0.50

20

410B0600
ref: 20

WASHER-PLAIN-SMALL,6M

€ 0.50

21

92037117
ref: 21

CLAMP,CABLE

€ 2.00

22

32097028
ref: 22
KM100-A1/A2/A3/A3A

CASE,BATTERY

€ 12.00

23

92075078
ref: 23
KM100-A1/A2/A3/A3A

DAMPER,RUBBER

€ 2.50

24

11080612
ref: 24
KM100-A1/A2/A3/A3A

UNAVAILABLE IN PRICE BOOK

€ 0.00

25

461F0600
ref: 25
KM100-A1/A2/A3/A3A

WASHER-SPRING,6MM

€ 0.50

26

411B0600
ref: 26
KM100-A1/A2/A3/A3A

WASHER-PLAIN,6MM

€ 0.50

27

92072039
ref: 27
KM100-A1/A2/A3/A3A

BAND,L=54MM

€ 12.50

28

320971010
ref: 28
KM100-A4~

CASE,BATTERY

€ 10.00

29

92075078
ref: 29
KM100-A4~

DAMPER,RUBBER

€ 2.50

30

110B0614
ref: 30
KM100-A4~

BOLT-HEX HEAD,6X14

€ 2.50

31

461F0600
ref: 31
KM100-A4~

WASHER-SPRING,6MM

€ 0.50

32

411B0600
ref: 32
KM100-A4~

WASHER-PLAIN,6MM

€ 0.50

33

92022125
ref: 33
KM100-A4~

WASHER,6.5X20X1.6

€ 1.00

34

32103023
ref: 34
KM100-A4~

DAMPER,BATTERY BOTTOM

€ 2.50

35

113B1228
ref: 35
KM100-A6~

BOLT-SMALL-FINE

€ 3.00

36

315B1200
ref: 36
KM100-A6~

NUT,12MM

€ 0.50

37

391371006
ref: 37
KM100-A6~

STAY,RR

€ 76.50

38

461F1200
ref: 38
KM100-A6~

WASHER-SPRING,12MM

€ 0.50

39

28012016
ref: 39
KM100-A6~

REFLECTOR REFLEX

€ 16.00

40

280011011
ref: 40
KM100-A6~

REFLECTOR ASSEMBLY,REFLEX

€ 8.50

41

280121005
ref: 41
KM100-A6~

REFLECTOR-REFLEX,RR

€ 16.50

42

311B0500
ref: 42
KM100-A6~

NUT-HEX

€ 0.50

43

461F0500
ref: 43
KM100-A6~

WASHER-SPRING,5MM

€ 0.50

44

110341740
ref: 44
KM100-A6~

BRACKET,TAIL LAMP COV

€ 7.50

45

140251169
ref: 45
KM100-A6~

COVER,TAIL LAMP

€ 12.50

46

112B0614
ref: 46
KM100-A6~

BOLT-UPSET 6X14

€ 2.50

47

461F0600
ref: 47
KM100-A6~

WASHER-SPRING,6MM

€ 0.50

48

92022125
ref: 48
KM100-A6~

WASHER,6.5X20X1.6

€ 1.00

49

220B0612
ref: 49
KM100-A6~

SCREW-PAN HEAD,6X12

€ 1.00

50

461F0600
ref: 50
KM100-A6~

WASHER-SPRING,6MM

€ 0.50
