CHASSIS ELECTRICAL EQUIPMENT

KM100-A6 KM100 1980 USA CANADA / MPH KPH

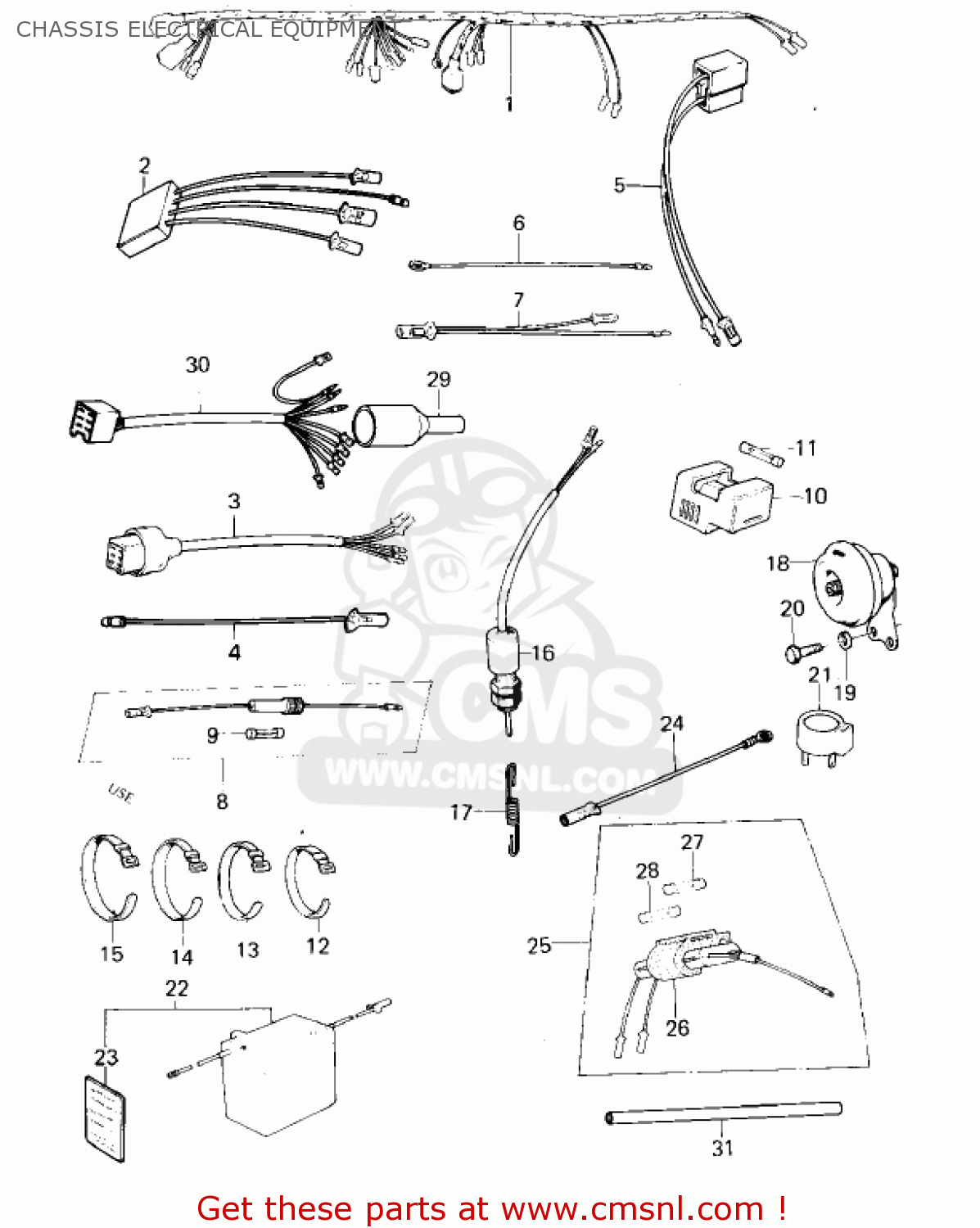

Chassis electrical equipment diagram KM100-A6 KM100 1980 USA CANADA / MPH KPH

CHASSIS ELECTRICAL EQUIPMENT KM100-A6 KM100 1980 USA CANADA / MPH KPH
CHASSIS ELECTRICAL EQUIPMENT KM100-A6 KM100 1980 USA CANADA / MPH KPH
CHASSIS ELECTRICAL EQUIPMENT KM100-A6 KM100 1980 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
26001118
ref: 1
KM100-A1/A2/A3/A3A
WIRING HARNESS,MAIN
€ 264.50
1
260011067
ref: 1
KM100-A4
WIRING HARNESS,MAIN
€ 81.50
1
260011108
ref: 1
KM100-A6~
WIRING HARNESS,MAIN
€ 66.00
2
26002056
ref: 2
KM100-A1/A2/A3/A3A
WIRING HARNESS,REAR
€ 6.00
3
260111042
ref: 3
KM100-A1/A2/A3/A3A
WIRE,LEAD
€ 31.50
3
260111042
ref: 3
KM100-A4
WIRE,LEAD
€ 31.50
4
26011094
ref: 4
KM100-A1/A2/A3
WIRE,LEAD
€ 1.50
5
26011074
ref: 5
KM100-A1/A2/A3/A3A
WIRE,RECTIFIER LEAD
26011074
€ 6.50
6
26011063
ref: 6
KM100-A1/A2/A3
WIRE-LEAD,L=185
26011063
€ 5.00
7
26011042
ref: 7
KM100-A1/A2/A3/A3A
WIRE-LEAD
26011042
€ 3.00
8
26004017
ref: 8
KM100-A1/A2/A3/A3A
FUSE-ASSY
€ 10.00
9
26006003
ref: 9
KM100-A1/A2/A3/A3A
FUSE 10A
26006003
€ 3.00
10
26016003
ref: 10
KM100-A1/A2/A3/A3A
HOLDER,SPARE FUSE
26016003
€ 8.50
11
26006003
ref: 11
KM100-A1/A2/A3/A3A
FUSE 10A
26006003
€ 3.00
12
92072030
ref: 12
L = 123 M/M
BAND,SHORT
92072030
€ 3.00
13
92072031
ref: 13
L = 149 M/M
BAND,MIDDLE
92072031
€ 3.00
14
92072056
ref: 14
L = 186 M/M
BAND,RUBBER
92072056
€ 3.00
15
92072032
ref: 15
L = 218 M/M
BAND,LONG
92072032
€ 3.00
16
27010015
ref: 16
KM100-A1/A2/A3/A3A/A
SWITCH,BRAKE LAMP
27010015
€ 23.00
16
27010025
ref: 16
KM100-A6~
SWITCH,BRAKE LAMP
27010025
€ 18.50
17
27011011
ref: 17
SPRING,BRAKE LAMP SW
27011011
€ 5.50
18
27003073
ref: 18
KM100-A1/A2/A3/A3A/A
HORN
€ 86.00
18
27003060
ref: 18
KM100-A6~
HORN
€ 95.50
19
461F0600
ref: 19
WASHER-SPRING,6MM
461F0600
€ 0.50
20
112G0610
ref: 20
BOLT,6X10
€ 0.50
21
27002013
ref: 21
RELAY-ASSY,TURN SIGNA
27002013
€ 27.00
22
K26012020
ref: 22
KM100-A1/A2/A3/A3A
BATTERY,YUA,6N4-2A-5
€ 55.50
22
K26012034
ref: 22
KM100-A4
BATTERY,YUA,6N6-1D-2
€ 78.00
22
K26012034
ref: 22
KM100-A6~
BATTERY,YUA,6N6-1D-2
€ 78.00
23
560401036
ref: 23
WARNING, BATTERY
€ 2.00
24
26011093
ref: 24
KM100-A4~
WIRE-LEAD
26011093
€ 6.00
25
260041010
ref: 25
KM100-A4~
FUSE-ASSY
260041010
€ 19.50
26
920751044
ref: 26
KM100-A4~
DAMPER,FUSE
€ 6.00
27
260061002
ref: 27
KM100-A4~
FUSE,10A,L=30M/M
260061002
€ 3.00
28
260061003
ref: 28
KM100-A4~
FUSE,15A,L=30M/M
260061003
€ 3.00
29
140251183
ref: 29
KM100-A6~
COVER,RR HARNESS
€ 3.00
30
260111061
ref: 30
KM100-A6~
WIRE LEAD
€ 14.00
31
920591150
ref: 31
TUBE,8X9X200
€ 3.00
