KICKSTARTER MECHANISM

KM100-A3A 1978 USA CANADA / MPH KPH

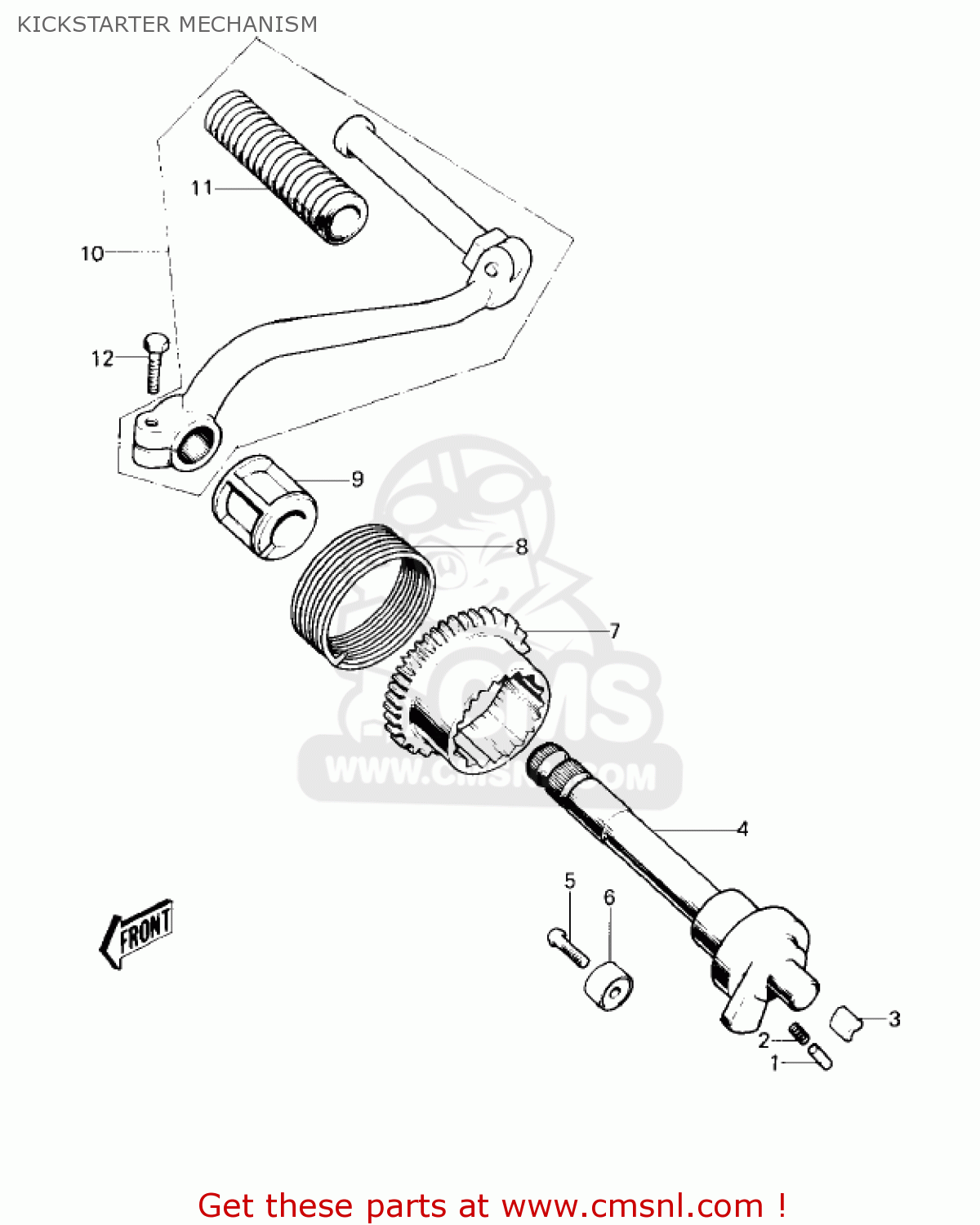

Kickstarter mechanism diagram KM100-A3A 1978 USA CANADA / MPH KPH

KICKSTARTER MECHANISM KM100-A3A 1978 USA CANADA / MPH KPH

KICKSTARTER MECHANISM KM100-A3A 1978 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

92043013
ref: 1

PIN,DOWEL,3.9X10.8

€ 2.50

2

92081014
ref: 2

SPRING-KICK PAWL

€ 3.00

3

13069005
ref: 3

PAWL,KICKSTARTER

€ 10.00

4

130661022
ref: 4

SHAFT-KICK

€ 102.00

4

130661022
ref: 4
KM100-A6~

SHAFT-KICK

€ 102.00

5

221B0620
ref: 5

SCREW-CNTSNK HD,6X20

€ 0.50

6

13072003
ref: 6

STOPPER,KICKSTARTER

€ 6.50

7

13068007
ref: 7
35T

GEAR-SPUR,KICKSTARTER

€ 50.00

8

92083004
ref: 8

SPRING-KICKSTARTER

€ 7.50

9

13070003
ref: 9

GUIDE,KICK SPRING

€ 9.00

10

13064007
ref: 10

PEDAL,KICKSTARTER

€ 46.50

11

13063002
ref: 11

RUBBER-KICK PEDAL

€ 3.00

12

115G0825
ref: 12

BOLT-HEX,HEAD,8X25

€ 3.00
