HANDLEBAR (KM100-A6/A7)

KM100-A3A 1978 USA CANADA / MPH KPH

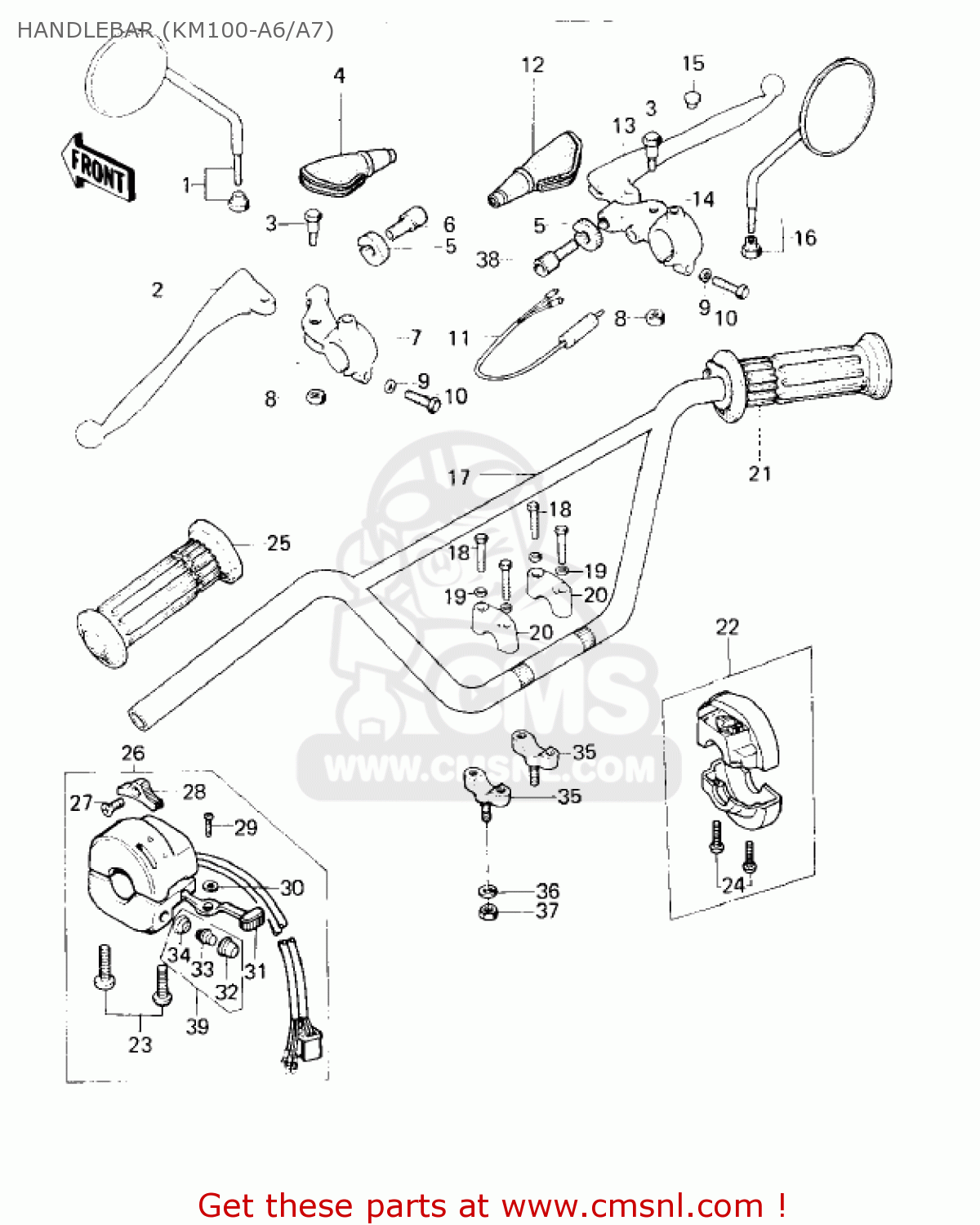

Handlebar (km100-a6/a7) diagram KM100-A3A 1978 USA CANADA / MPH KPH

HANDLEBAR (KM100-A6/A7) KM100-A3A 1978 USA CANADA / MPH KPH
HANDLEBAR (KM100-A6/A7) KM100-A3A 1978 USA CANADA / MPH KPH
HANDLEBAR (KM100-A6/A7) KM100-A3A 1978 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
56003009
ref: 1
MIRROR-ASSY,LH
56003009
€ 50.00
2
46092015
ref: 2
LEVER-GRIP,CLUTCH
46092015
€ 11.50
3
92007046
ref: 3
BOLT,HEX HEAD,5X22
92007046
€ 4.50
4
490061017
ref: 4
BOOTS,LEVER HOLDER
490061017
€ 13.00
5
46056005
ref: 5
NUT-LOCK
46056005
€ 6.00
6
46055003
ref: 6
SCREW-CABLE ADJUST
46055003
€ 11.50
7
4609401121
ref: 7
BLACK
HOLDER-CLUTCH LEV,BLK
4609401121
€ 23.00
8
92019014
ref: 8
NUT-LOCK,5M/M
92019014
€ 2.50
9
410B0600
ref: 9
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
10
110N0625
ref: 10
BOLT-HEX HEAD,6X25
€ 3.50
11
27021004
ref: 11
SWITCH,FR BRAKE LAMP
27021004
€ 23.00
12
490061017
ref: 12
BOOTS,LEVER HOLDER
490061017
€ 13.00
13
46058004
ref: 13
LEVER-GRIP,FRONT BRAK
46058004
€ 24.00
14
4606000921
ref: 14
BLACK
HOLDER,BRAKE LEVER,FR
4606000921
€ 27.00
15
92102009
ref: 15
NOT REQUIRED FOR 560
CAP-RR VIEW MIRROR
92102009
€ 3.00
16
56002020
ref: 16
OPTION
MIRROR-ASSY,RH
56002020
€ 47.50
17
46004024
ref: 17
HANDLEBAR
€ 43.50
18
110N0835
ref: 18
BOLT, HEX HEAD, 8X35
€ 1.50
18
114N0835
ref: 18
BOLT,HEX HEAD,8X35
€ 1.50
19
461F0800
ref: 19
WASHER-SPRING,8MM
461F0800
€ 0.50
20
46012004
ref: 20
HOLDER-UPPER HANDLBAR
€ 14.00
21
460191005
ref: 21
GRIP-ASSY,THROTTLE
460191005
€ 26.00
22
460911041
ref: 22
HOUSING-ASSY-CONTROL,
460911041
€ 41.50
23
220B0525A
ref: 23
SCREW-PAN HEAD,5X25
220B0525A
€ 2.50
24
220B0518
ref: 24
SCREW-PAN HEAD,5X18
€ 2.50
25
460751004
ref: 25
GRIP,L.H.
460751004
€ 8.00
26
46091040
ref: 26
HOUSING-ASSY-CONTROL,
€ 93.50
27
221B0308A
ref: 27
SCREW-CNTSNK HD,3X8
221B0308A
€ 2.50
28
46044011
ref: 28
KNOB-L.H SWITCH
46044011
€ 6.00
29
220B0305A
ref: 29
SCREW-PAN HEAD,3X5
220B0305A
€ 1.00
30
92095010
ref: 30
WASHER
92095010
€ 2.50
31
46044010
ref: 31
KNOB-SWITCH
46044010
€ 6.00
32
270101009
ref: 32
SWITCH ASSY,HORN BUTN
270101009
€ 5.50
33
270101009
ref: 33
SWITCH ASSY,HORN BUTN
270101009
€ 5.50
34
270101009
ref: 34
SWITCH ASSY,HORN BUTN
270101009
€ 5.50
35
4601200280
ref: 35
HOLDER-HANDLE
4601200280
€ 15.50
36
461F1000
ref: 36
WASHER-SPRING,10MM
461F1000
€ 0.50
37
314B1000
ref: 37
NUT,10MM
314B1000
€ 0.50
38
46055010
ref: 38
SCREW,CABLE ADJUST
46055010
€ 21.00
39
270101009
ref: 39
SWITCH ASSY,HORN BUTN
270101009
€ 5.50
