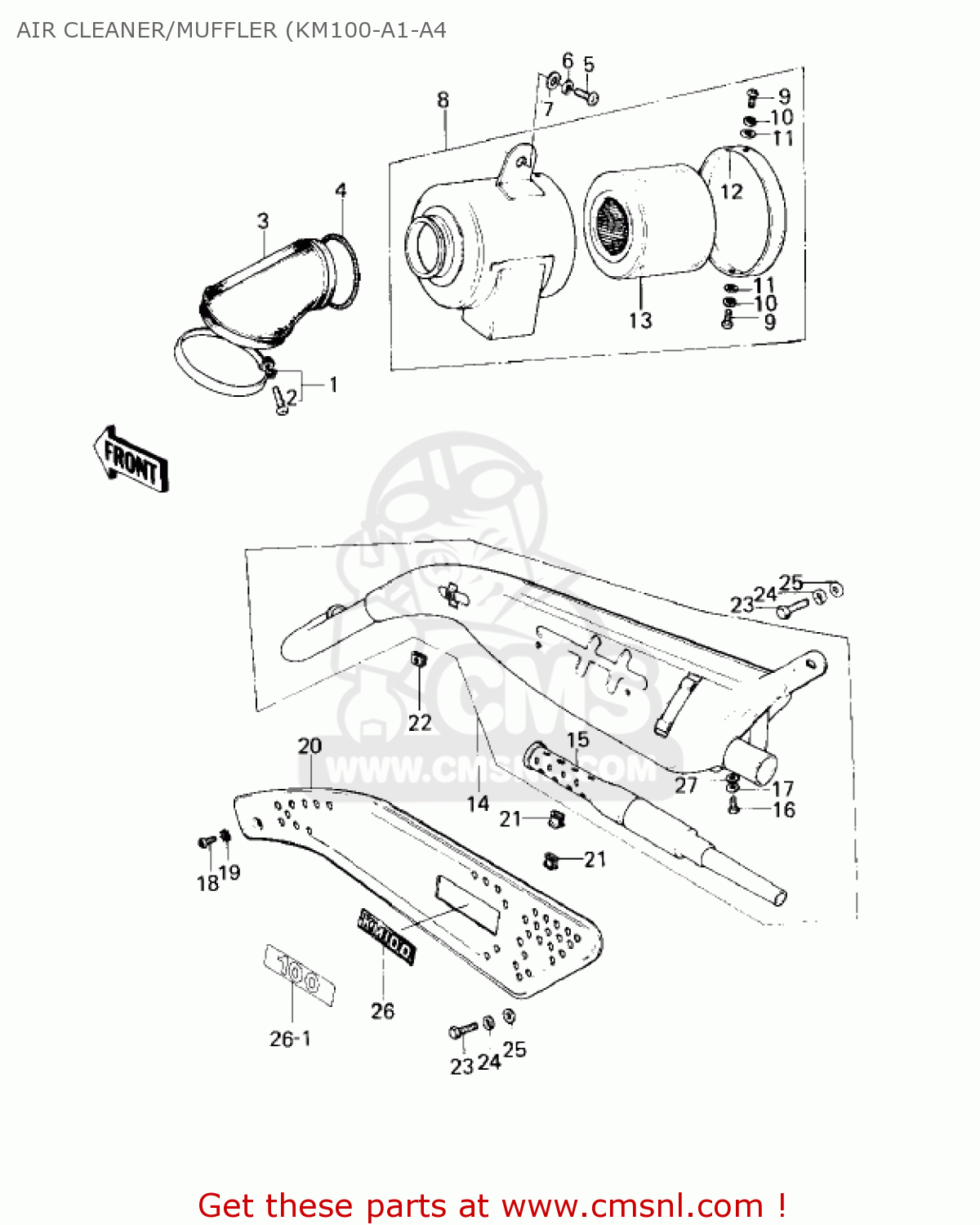

AIR CLEANER/MUFFLER (KM100-A1-A4

ref

part #

description

quantity

1

92037068
ref: 1

CLAMP

€ 7.50

2

220B0635
ref: 2

SCREW-PAN HEAD,6X35

€ 1.00

3

11026009
ref: 3
KM100-A1/A2/A3

DUCT,AIR FILTER

€ 8.50

3

140731007
ref: 3
KM100-A3A~

AIR CLEANER DUCT

€ 12.00

4

92081047
ref: 4

SPRING,COIL

€ 7.50

5

220B0612
ref: 5

SCREW-PAN HEAD,6X12

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

410B0600
ref: 7

WASHER-PLAIN-SMALL,6M

€ 0.50

8

1101006810
ref: 8
KM100-A1/A2/A3

AIR CLEANER ASSY,BLAK

€ 98.50

8

11010101610
ref: 8
KM100-A3A~

AIR CLEANER ASSEMBLY,BLACK

€ 90.00

9

220B0508A
ref: 9
KM100-A1/A2/A3

SCREW-PAN HEAD,5X6

€ 0.50

9

220B0510
ref: 9
KM100-A3A~

SCREW-PAN-CROS,5X10

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

410B0500
ref: 11

WASHER-PLAIN-SMALL,5M

€ 0.50

12

11012041
ref: 12
KM100-A1/A2/A3

CAP,AIR FILTER

€ 8.50

12

110121028
ref: 12
KM100-A3A~

AIR CLEANER CAP

€ 10.00

13

11013044
ref: 13
KM100-A1/A2/A3

ELEMENT-AIR FILTER

€ 8.00

13

110131009
ref: 13
KM100-A3A~

AIR CLEANER ELEMENT

€ 19.50

14

1800116721
ref: 14

MUFFLER ASSY,F.BLACK

€ 229.50

15

18033096
ref: 15

BAFFLE TUBE

€ 60.00

16

112G0610
ref: 16

BOLT,6X10

€ 0.50

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

220E0612
ref: 18

SCREW-PAN HEAD,6X12

€ 3.00

19

463H0600
ref: 19

WASHER-LOCK,6MM

€ 0.50

20

18064018
ref: 20

COVER,MUFFLER

€ 24.00

21

18065007
ref: 21

INSULATOR,HEAT

€ 3.00

22

18065009
ref: 22

INSULATOR,HEAT

€ 3.00

23

115G0816
ref: 23

BOLT-HEX,HEAD 8X16

€ 0.50

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

411B0800
ref: 25

WASHER-PLAIN,8MM

€ 0.50

26

56018241
ref: 26
KM100-A1/A2/A3/A3A

SIDE COVER EMBLEM

€ 23.50

26-1

560181043
ref: 26-1
KM100-A4~

EMBLEM,MUFFLER COVER

€ 14.50

27

92022183
ref: 27

WASHER,6.2X11X1.5

€ 2.50

all assemblies
