IGNITION/GENERATOR
KM100-A3A 1978 USA CANADA / MPH KPH

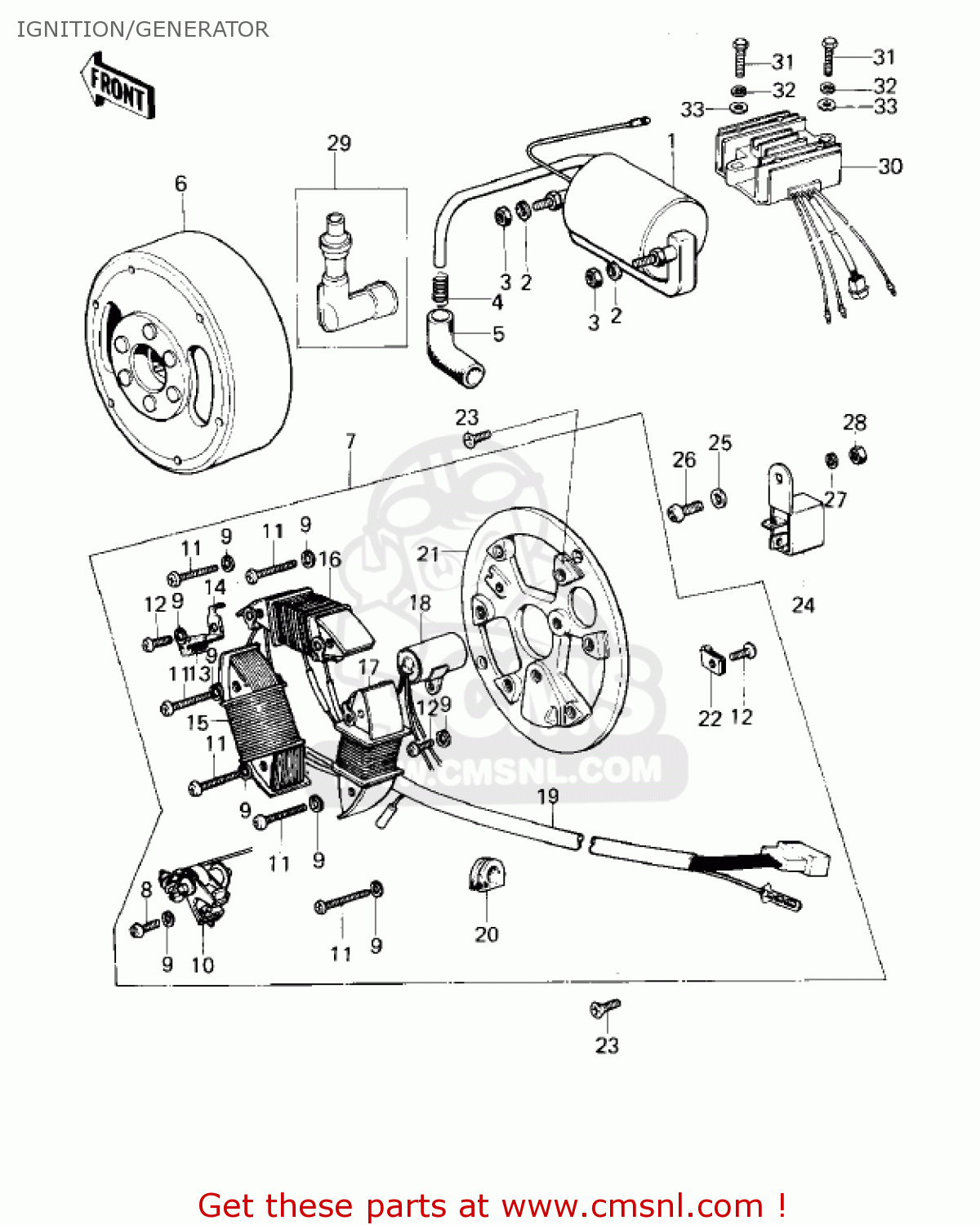

Ignition/generator diagram KM100-A3A 1978 USA CANADA / MPH KPH
IGNITION/GENERATOR KM100-A3A 1978 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
211211047
ref: 1
COIL-IGNITION
€ 115.50
2
461F0600
ref: 2
KM100-A1/A2/A3/A3A
WASHER-SPRING,6MM
€ 0.50
3
311B0600
ref: 3
KM100-A1/A2/A3/A3A
NUT,6MM
€ 0.50
3
92019008
ref: 3
KM100-A4~
NUT-LOCK,6MM
€ 3.00
4
92101001
ref: 4
SPRING-SPARK PLUG CAP
€ 1.50
5
21130009
ref: 5
CAP-SPARK PLUG
€ 15.00
6
21050016
ref: 6
KM100-A1/A2/A3/A3A
FLYWHEEL
€ 354.00
6
210501008
ref: 6
KM100-A4~
FLYWHEEL,MAGNETO
€ 275.50
7
21003025
ref: 7
KM100-A1/A2/A3/A3A
STATOR ASSY
€ 226.00
7
210031014
ref: 7
KM100-A4~
STATOR
€ 203.50
8
220B0412
ref: 8
SCREW-PAN CROS 4X12
€ 0.50
9
461F0400
ref: 9
WASHER-SPRING,4MM
€ 0.50
10
21008006
ref: 10
BREAKER ASSY-CONTACT
€ 33.50
11
220E0430
ref: 11
SCREW-PAN-CROS
€ 2.50
12
220B0406
ref: 12
SCREW-PAN-CROS,4X6
€ 2.50
13
21019005
ref: 13
BRUSH,OIL
€ 3.00
14
21038002
ref: 14
HOLDER,OIL FELT
€ 2.00
15
210471007
ref: 15
KM100-A1/A2/A3/A3A
COIL,LIGHTING
€ 58.00
15
590311002
ref: 15
KM100-A4~
COIL-CHARGING,B
€ 68.50
16
21047019
ref: 16
KM100-A1/A2/A3/A3A
COIL-LIGHTING
€ 109.50
16
590311001
ref: 16
KM100-A4~
COIL-CHARGING,A
€ 65.00
17
210491004
ref: 17
KM100-A1/A2/A3/A3A
COIL-EXCITING
€ 73.50
17
210491004
ref: 17
KM100-A4~
COIL-EXCITING
€ 73.50
18
21013006
ref: 18
CONDENSER
€ 21.00
19
21029028
ref: 19
KM100-A1/A2/A3/A3A
WIRING HARNESS,MAG
€ 31.50
19
260011077
ref: 19
KM100-A4~
MAGNETO WIRING HARNESS
€ 40.00
20
21017002
ref: 20
GROMMET
€ 3.00
21
210481002
ref: 21
PLATE-COIL,MAGNETO
€ 46.50
22
21037002
ref: 22
CLAMP,WIRING HARNESS
€ 2.50
23
221B0614
ref: 23
SCREW-CNTSNK HD,6X14
€ 2.50
24
21061015
ref: 24
KM100-A1/A2/A3/A3A
RECTIFIER
€ 30.50
25
411B0500
ref: 25
KM100-A1/A2/A3/A3A
WASHER-PLAIN,5MM
€ 0.50
26
220B0510
ref: 26
KM100-A1/A2/A3/A3A
SCREW-PAN-CROS,5X10
€ 0.50
27
461F0500
ref: 27
KM100-A1/A2/A3/A3A
WASHER-SPRING,5MM
€ 0.50
28
311B0500
ref: 28
KM100-A1/A2/A3/A3A
NUT-HEX
€ 0.50
29
21160005
ref: 29
USE FOR CANADIAN MAR
CAP-ASSY-PLUG
€ 29.00
30
210661012
ref: 30
KM100-A4
REGULATOR-VOLTAGE
€ 148.50
30
210661012
ref: 30
KM100-A6~
REGULATOR-VOLTAGE
€ 148.50
31
112G0625
ref: 31
KM100-A4~
BOLT-UPSET,6X25
€ 4.00
32
461F0600
ref: 32
KM100-A4~
WASHER-SPRING,6MM
€ 0.50
33
411B0600
ref: 33
KM100-A4~
WASHER-PLAIN,6MM
€ 0.50
