HANDLEBAR
KLX650D4 KLX650R 1999 EUROPE FRANCE

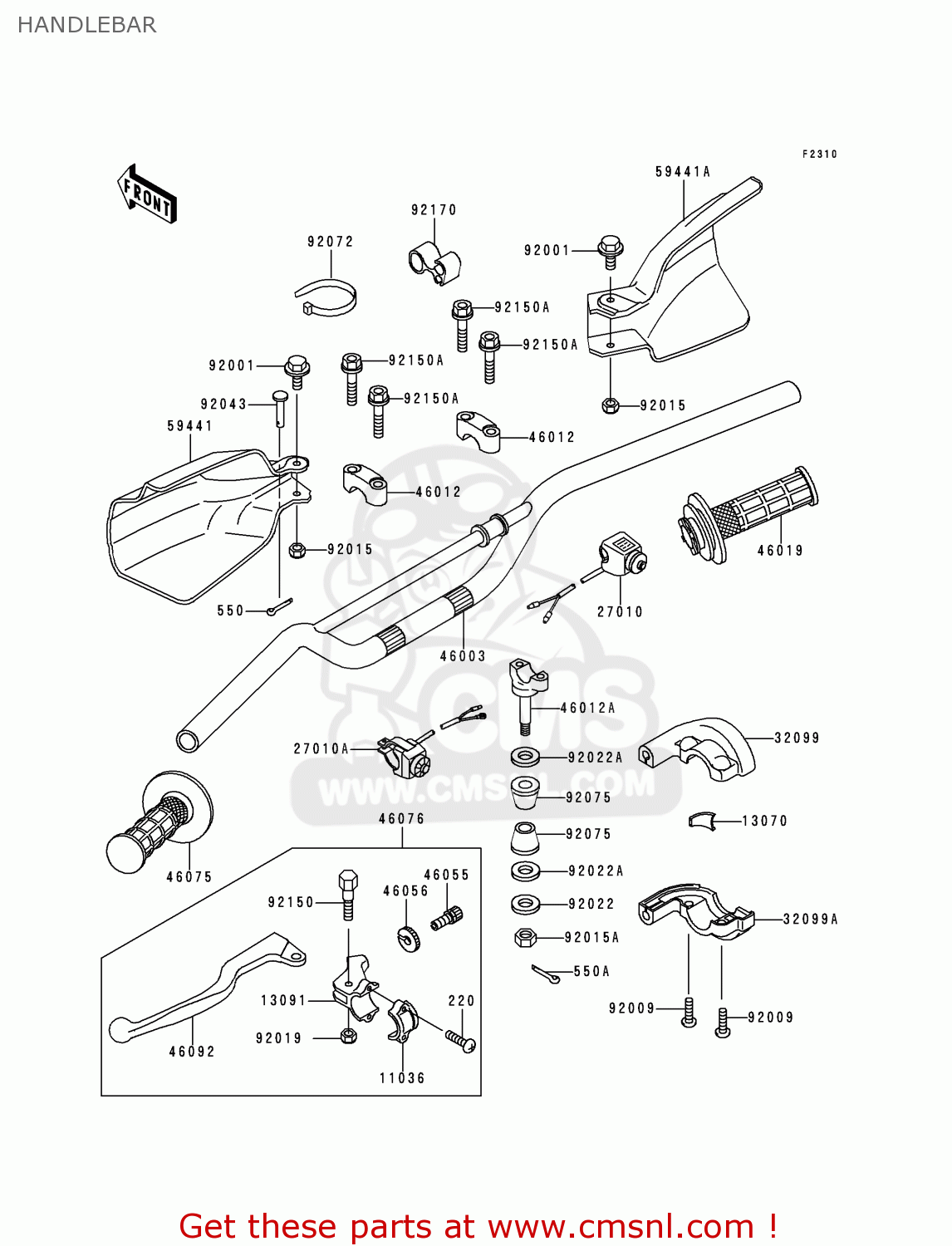

Handlebar diagram KLX650D4 KLX650R 1999 EUROPE FRANCE
HANDLEBAR KLX650D4 KLX650R 1999 EUROPE FRANCE
×
prices are in EUR
ref
part #
description
quantity
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
550
550D1210
ref: 550
PIN-COTTER,1.2X10
€ 1.50
550A
550D2020
ref: 550A
PIN-COTTER,2.0X20
€ 0.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701270
ref: 13070
GUIDE,THROTTLE CABLE
€ 2.50
13091
130911131
ref: 13091
HOLDER,CLUTCH LEVER
€ 31.50
27010
270101279
ref: 27010
SWITCH,LIGHTING
€ 52.50
27010A
270101350
ref: 27010A
SWITCH,ENGINE STOP
€ 38.00
32099
320991143
ref: 32099
CASE,THROTTLE,UPP
€ 19.50
32099A
320991144
ref: 32099A
CASE,THROTTLE,LWR
€ 19.50
46003
460031439CE
ref: 46003
HANDLE,SILVER NO.25
€ 72.50
46012
460121191
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46012A
460121263
ref: 46012A
HOLDER-HANDLE,LWR
€ 31.00
46019
460191078
ref: 46019
GRIP-ASSY,THROTTLE
€ 28.00
46055
46055009
ref: 46055
SCREW,CABLE ASJUST
€ 13.00
46056
46056006
ref: 46056
NUT,CABLE ADJUST NUT
€ 6.00
46075
460751107
ref: 46075
GRIP,LH
€ 14.00
46076
460761163
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 51.00
46092
460921110
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.50
59441
5944110946W
ref: 59441
COVER-HANDLE,LH,L.GRE
€ 18.00
59441A
5944111086W
ref: 59441A
COVER-HANDLE,RH,L.GRE
€ 18.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92009
920091699
ref: 92009
SCREW,5X16
€ 2.00
92015
920151603
ref: 92015
NUT
€ 3.00
92015A
920151962
ref: 92015A
NUT
€ 2.00
92019
92019008
ref: 92019
NUT-LOCK,6MM
€ 3.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221737
ref: 92022A
WASHER
€ 3.50
92043
920431434
ref: 92043
PIN,5X27.5
€ 5.00
92072
920721293
ref: 92072
BAND
€ 6.50
92075
920751776
ref: 92075
DAMPER
€ 5.00
92150
921501291
ref: 92150
BOLT
€ 14.50
92150A
921501696
ref: 92150A
BOLT,FLANGED,8X35
€ 3.50
92170
921701255
ref: 92170
CLAMP,BRAKE HOSE
€ 4.50
