FRAME
KLX650D4 KLX650R 1999 EUROPE FRANCE

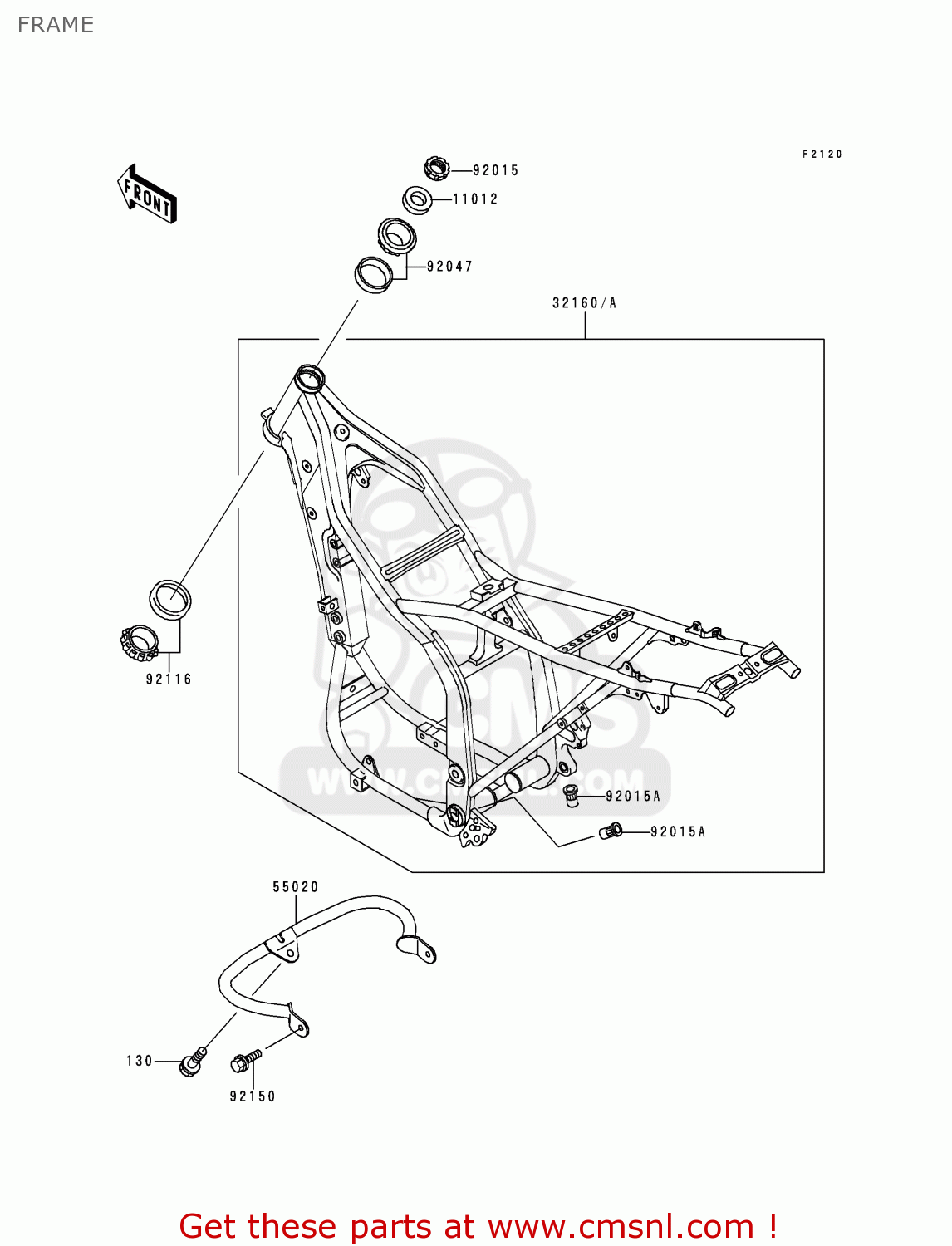

Frame diagram KLX650D4 KLX650R 1999 EUROPE FRANCE
FRAME KLX650D4 KLX650R 1999 EUROPE FRANCE
×
prices are in EUR
ref
part #
description
quantity
130
130G0814
ref: 130
BOLT,FLANGED,8X14
€ 0.50
11012
110121762
ref: 11012
CAP,STEERING STEM
€ 4.00
32160
321601364EZ
ref: 32160
FRAME-COMP,C.GRAY
€ 1,596.00
55020
550201480
ref: 55020
GUARD,ENGINE
€ 200.50
92015
920151546
ref: 92015
NUT,25MM,T=12
€ 14.50
92015A
920151791
ref: 92015A
NUT,POP,6MM
€ 3.00
92047
92047017
ref: 92047
CONE,STRNG,STEM
€ 49.50
92116
921161069
ref: 92116
BEARING-ROLLER
€ 69.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
