CYLINDER HEAD

KLX650D4 KLX650R 1999 EUROPE FRANCE

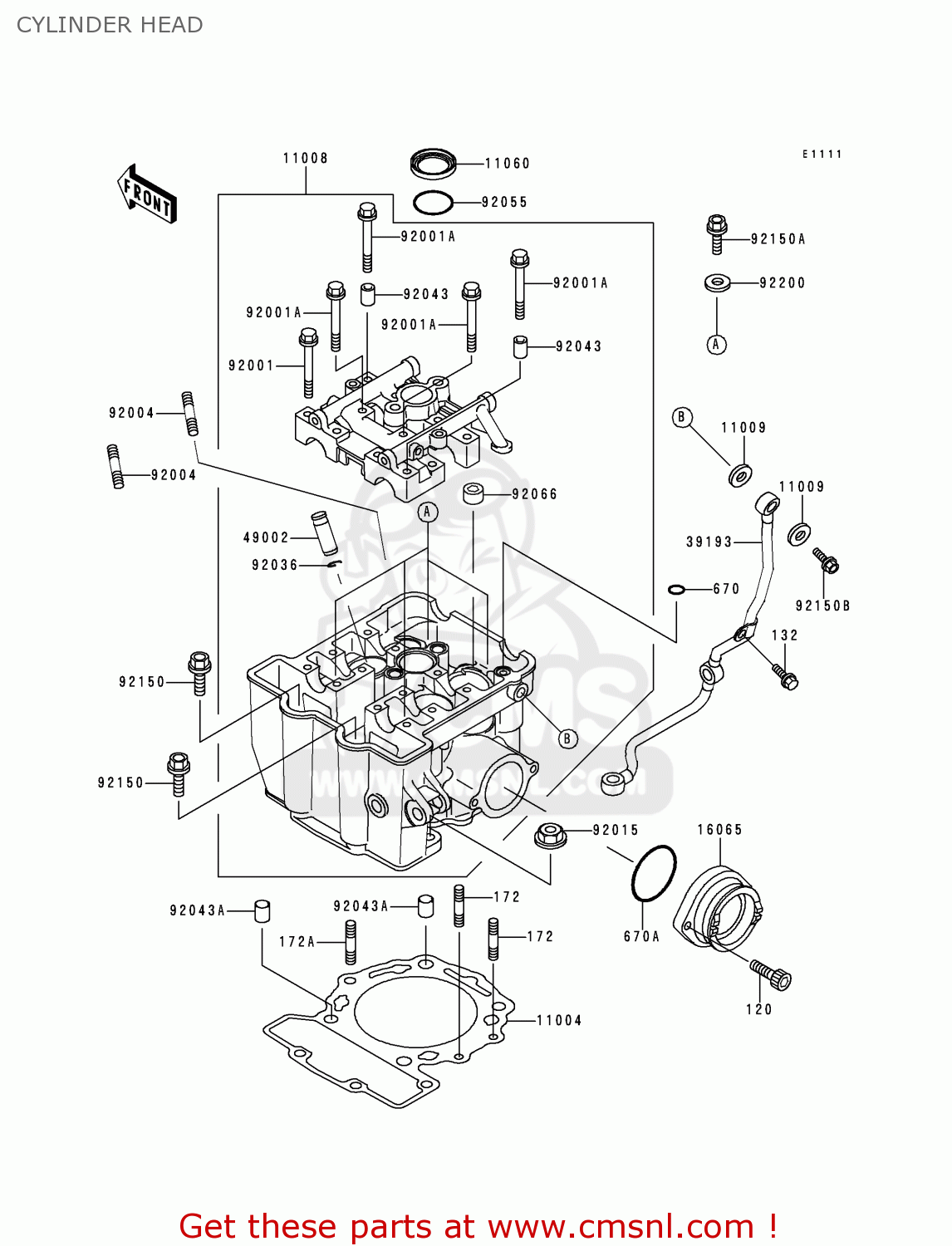

Cylinder head diagram KLX650D4 KLX650R 1999 EUROPE FRANCE

CYLINDER HEAD KLX650D4 KLX650R 1999 EUROPE FRANCE
CYLINDER HEAD KLX650D4 KLX650R 1999 EUROPE FRANCE
CYLINDER HEAD KLX650D4 KLX650R 1999 EUROPE FRANCE
prices are in EUR
ref
part #
description
quantity
120
120Z0620
ref: 120
BOLT-SOCKET,6X20
120Z0620
€ 3.00
132
132Y0610
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
172
172G0622
ref: 172
STUD,6X22
172G0622
€ 1.00
172A
172G0825
ref: 172A
STUD,8X25
€ 3.50
670
670D1508
ref: 670
O RING,8MM
670D1508
€ 2.50
670A
670D3048
ref: 670A
O RING,48MM
670D3048
€ 4.50
11004
110041253
ref: 11004
GASKET-HEAD (NAS)
110041253
€ 42.00
11008
110081270
ref: 11008
HEAD-COMP-CYLINDER
€ 821.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11060
110601297
ref: 11060
GASKET,CAP (NAS)
110601297
€ 7.50
16065
160651104
ref: 16065
HOLDER-CARBURETOR
160651104
€ 67.50
39193
391931012
ref: 39193
PIPE-OIL
€ 93.00
49002
490021125
ref: 49002
GUIDE-VALVE
€ 19.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92001A
920011872
ref: 92001A
BOLT,6X46
920011872
€ 2.50
92004
920041217
ref: 92004
STUD
920041217
€ 4.00
92015
920151402
ref: 92015
NUT,8MM
920151402
€ 3.00
92036
92036023
ref: 92036
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920434009
ref: 92043A
PIN,10.1X12X14
920434009
€ 4.00
92055
920551047
ref: 92055
RING-O,30MM
920551047
€ 5.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
92150
921501156
ref: 92150
BOLT,SOCKET,8X30
921501156
€ 4.50
92150A
921501618
ref: 92150A
BOLT,10X225
921501618
€ 13.50
92150B
921501641
ref: 92150B
BOLT,BANJO,10X23
921501641
€ 9.50
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
922001042
€ 2.50
